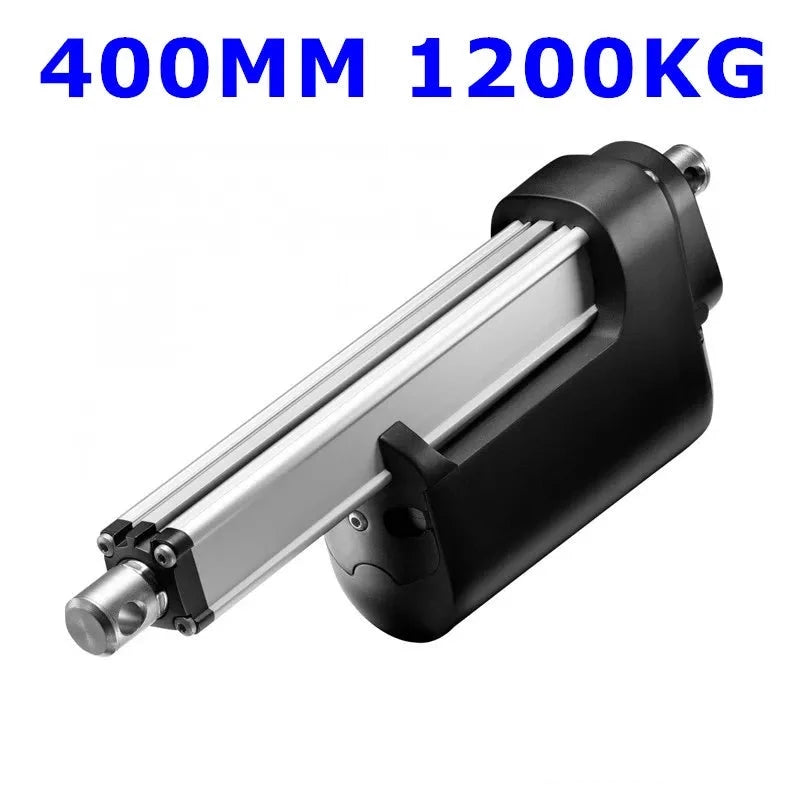

• Linear Actuator - 400mm 1200KG 12V
  • Linear Actuator - 400mm 1200kg

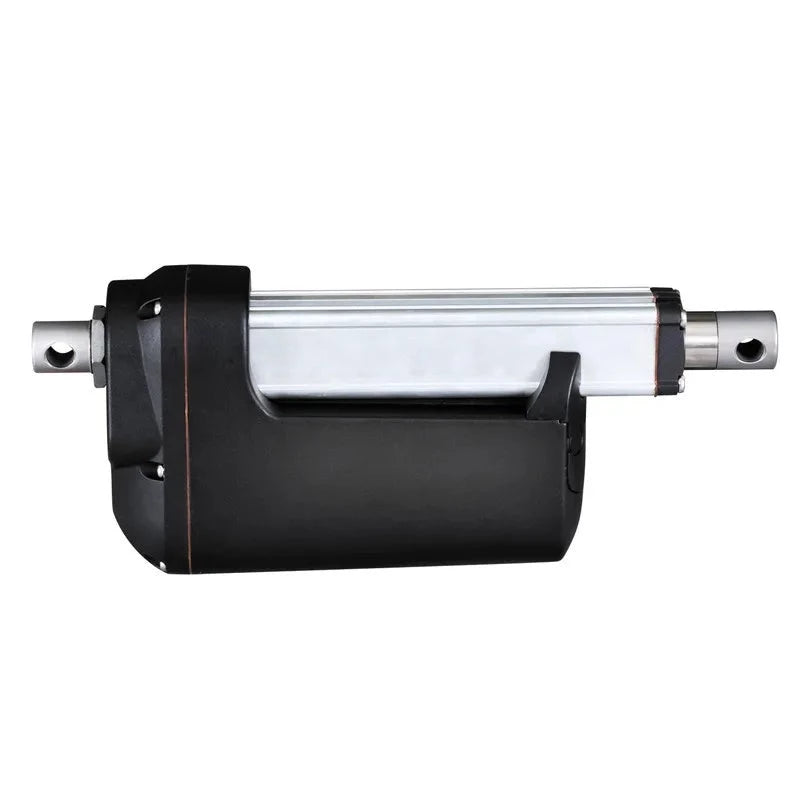

  • Linear Actuator Side View
  • Linear Actuator part
  • Linear Actuator dimensions

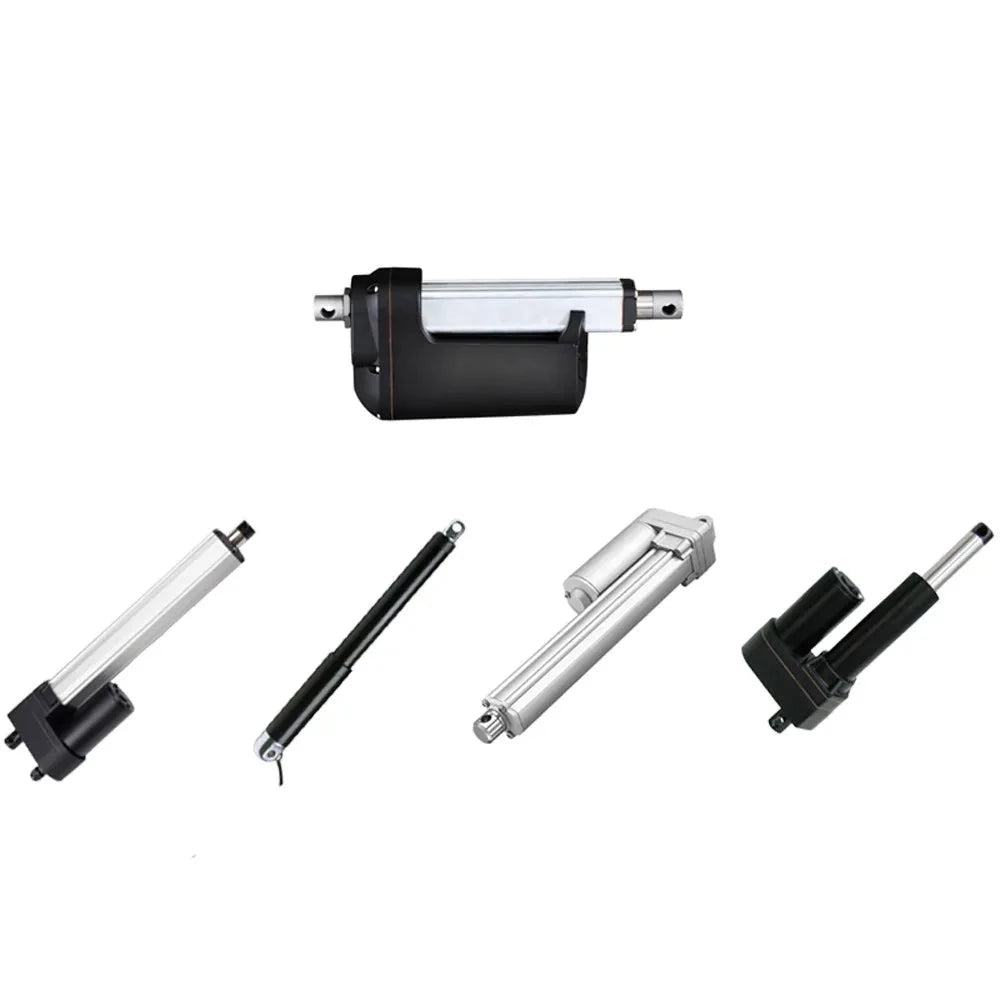

  • Linear Actuator types

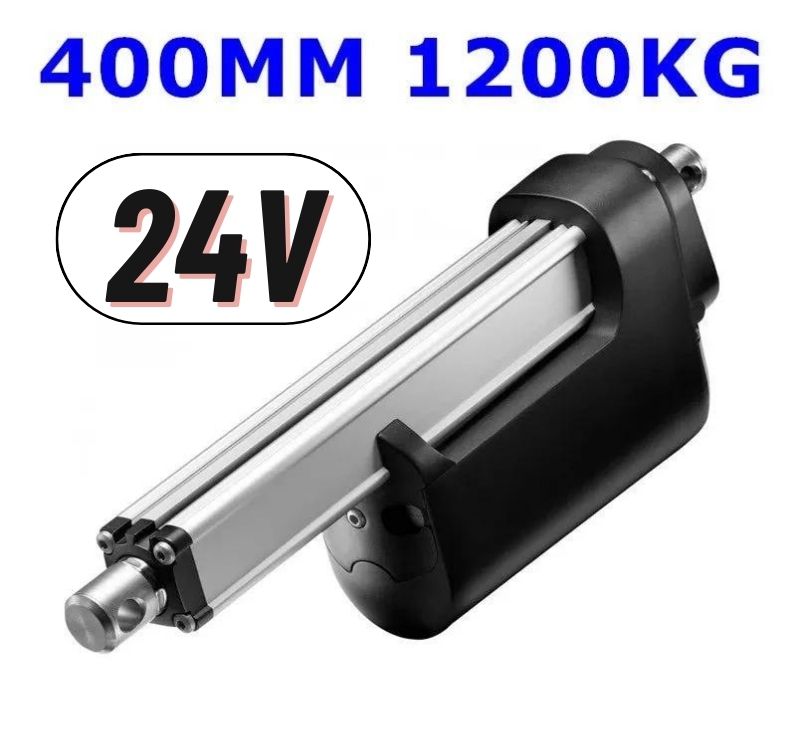

  • Linear Actuator - 400mm 1200KG 24V
1 6

GoMotorWorld Automation Tech

Linear Actuator - 400mm

Linear Actuator - 400mm

$597.46 CAD
$597.46 CAD
Sale Sold out
Shipping calculated at checkout.
Voltage(V)
Speed(RPM)
Buyer Protection

You will have 15 days from receiving the item to return it without any reason and for free if the item's conditions meet our requirements. Also, refund when product has defect. Each buyer can benefit from the Free Return for maximum 3 times per month.

REFUNDS
Get A Refund if the item arrives late or not as described.
  • CE

SPECIFICATIONS



Continuous Current(A): 8.5

Output Power: 120

Commutation: Brush

Type: Tubular Motor

Protect Feature: waterproof

Construction: Permanent Magnet

Usage: BoAt

Efficiency: IE 4

Model Number: LA51T

Type: LA51T

Torque: Max 12000N/1200KG/2640LB

Load: 12000N=1200KG=2640LB

Input: 24V/12V DC

Speed: 60mm per second

Stroke: 400mm

Duty Cycle: 25%

Material: Stainless steel

Customisable: Yes

Application: Heavy industry

IP protection: IP66

Limited  Switch: Included

Color: Black

Inner tube material: Stainless steel

Operation Temperature: -26 ~ +65 degree

Mini Length: The 100% fully retracted length

Cable Length: 1m or 2m or 50.8cm or 10.16cm & various other choices.

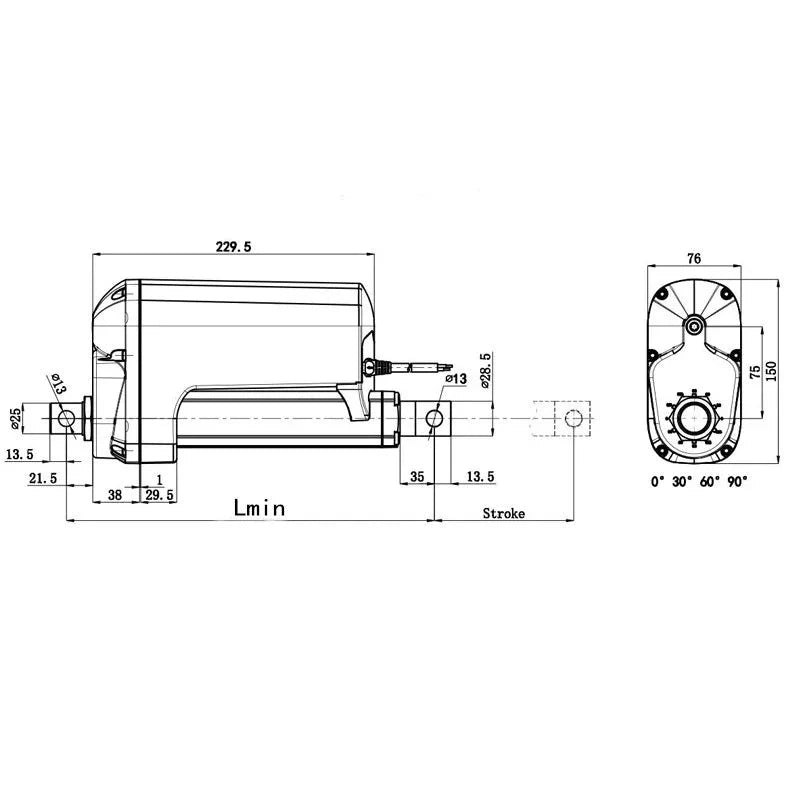

Dimensions


Length mini=Stroke+200mm=400+200=600MM

Max length=Stroke+ Length mini=2*stroke+200=1000MM

The limited switch inside, will stop automatically when it gets stroke size position, for safety.







View full details

Customer’s Special Requirement

Product Q&A

Can I add hall or Potentiometer (POT) signal feedback ?

Yes

Can I get customised size or speed or stroke or load ?

Yes, however price might change

Can you send to other country ?

Yes, Contact us for more details

Can you supply power supply and hand switch to operate linear actuator ?

Yes

Do you sell bracket ?

Yes

Can you supply customised cable connector ?

Yes

Can you supply OEM service ?

Yes
