Xinpuguang
120/240W Flexible Solar Panel kit Photovoltaic Module Solar Power Charger 12v
120/240W Flexible Solar Panel kit Photovoltaic Module Solar Power Charger 12v
Couldn't load pickup availability
CE
FCC
ROHS
WEEE
SPECIFICATIONS
Brand Name: Xinpuguang
Number of Panels: 2

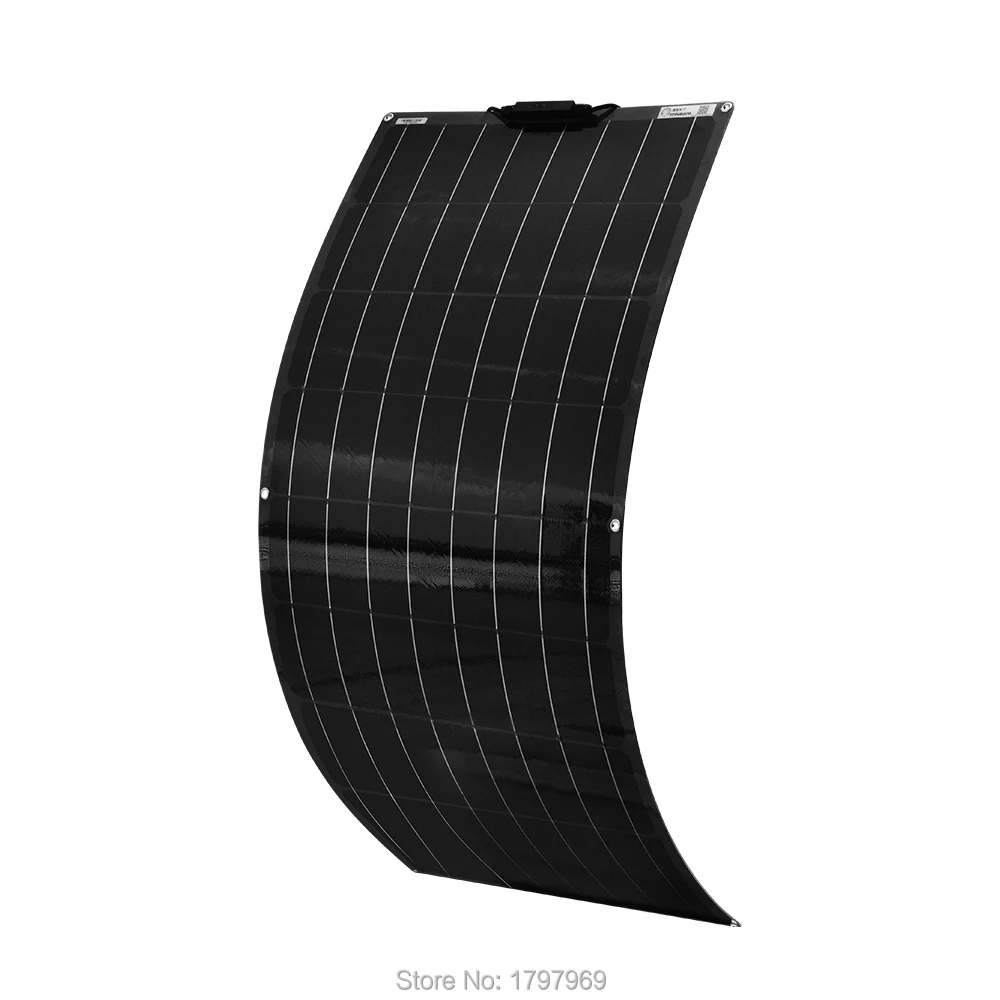

Flexible Solar Panel: Yes
Foldable Solar Panel: No
High-Concerned Chemical: None
Type: Solar Panel
Module Efficiency: 21.8%
Model Number: black 18V solar panel
Size: 1170mm x 540mm x 3mm/1065mm*550mm*3mm
Material: Monocrystalline Silicon
Nominal Capacity: 120w 240w
Number of Cells: 36 cells
Max. Power: 240w
Customisable: Yes
120W Flexible solar panel: 1 pcs solar panel

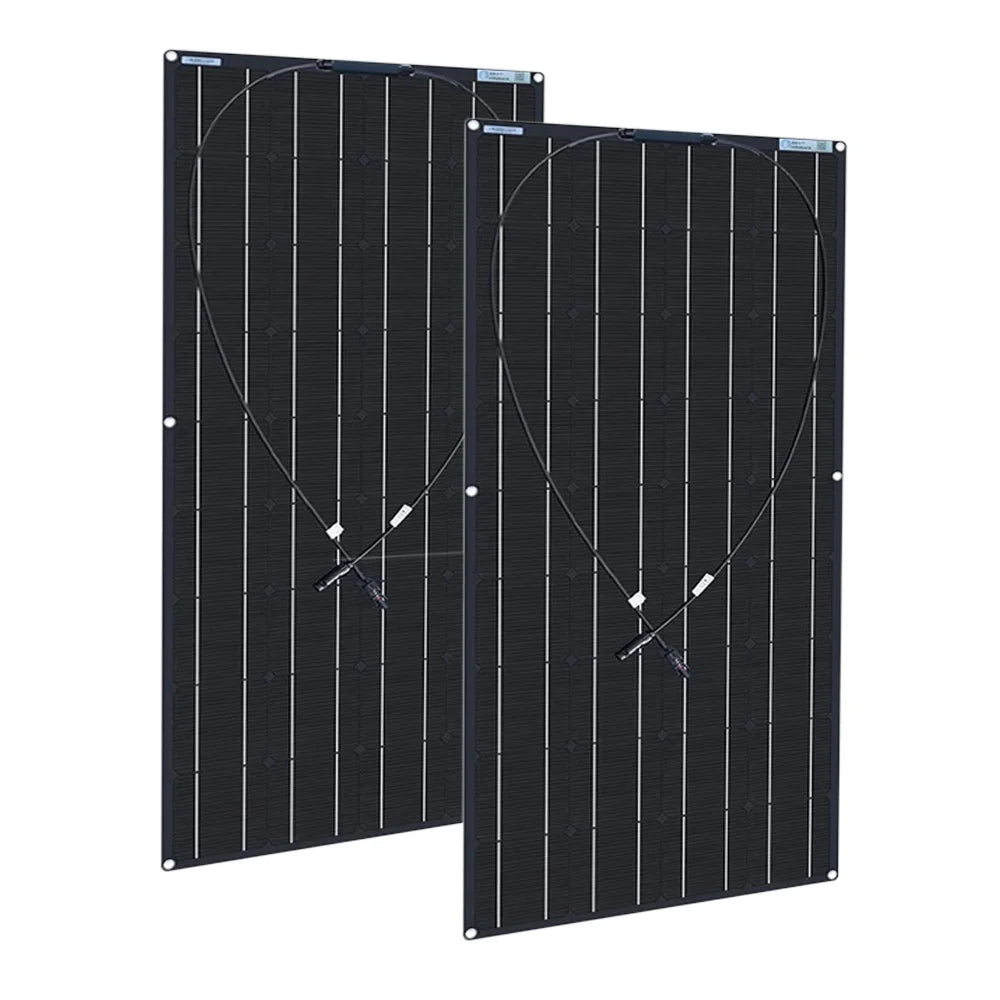

240W Flexible solar panels: 2 pcs Solar Panel
120W solar panel kit: 1pcs solar panel +Controller +pv cable +alligator clip cable
240W solar panel kit: 2pcs solar panel +Controller +pv cable +alligator clip cable +connector
solar charger Storage batteries: car batteries, lithium batteries, lead-acid batteries
specifications
Maximum Power(Pmax) 120W
Output Tolerance ± 3%
Maximum System Voltage 700V DC
Open Circuit Voltage(Voc) 21.6V
Short Circuit Current(Isc) 6.8 A
Maximum Power Voltage(Vmp) 18V
Maximum Power Current(Imp) 6.5A
Cell Efficiency 19.5%
Operating Temperature （NOCT） 45±2℃
Temperature Range -40℃～+80℃
Number of cells 36pcs
Weight 2200g
Size 1170*540*3 mm
Color Black
Standard Test Conditions：
- Irradiance 1000w/m^2
- Temperature 25℃, AM=1.5
Features:
a. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.

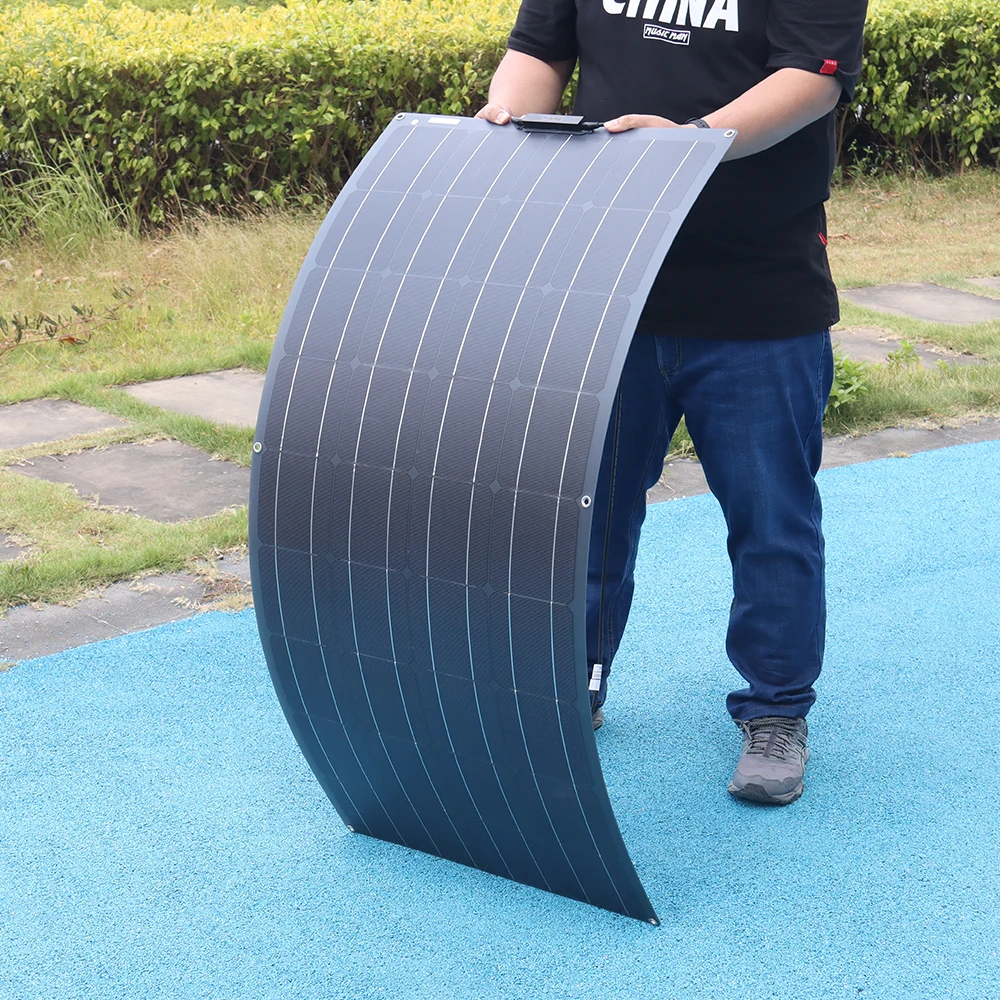

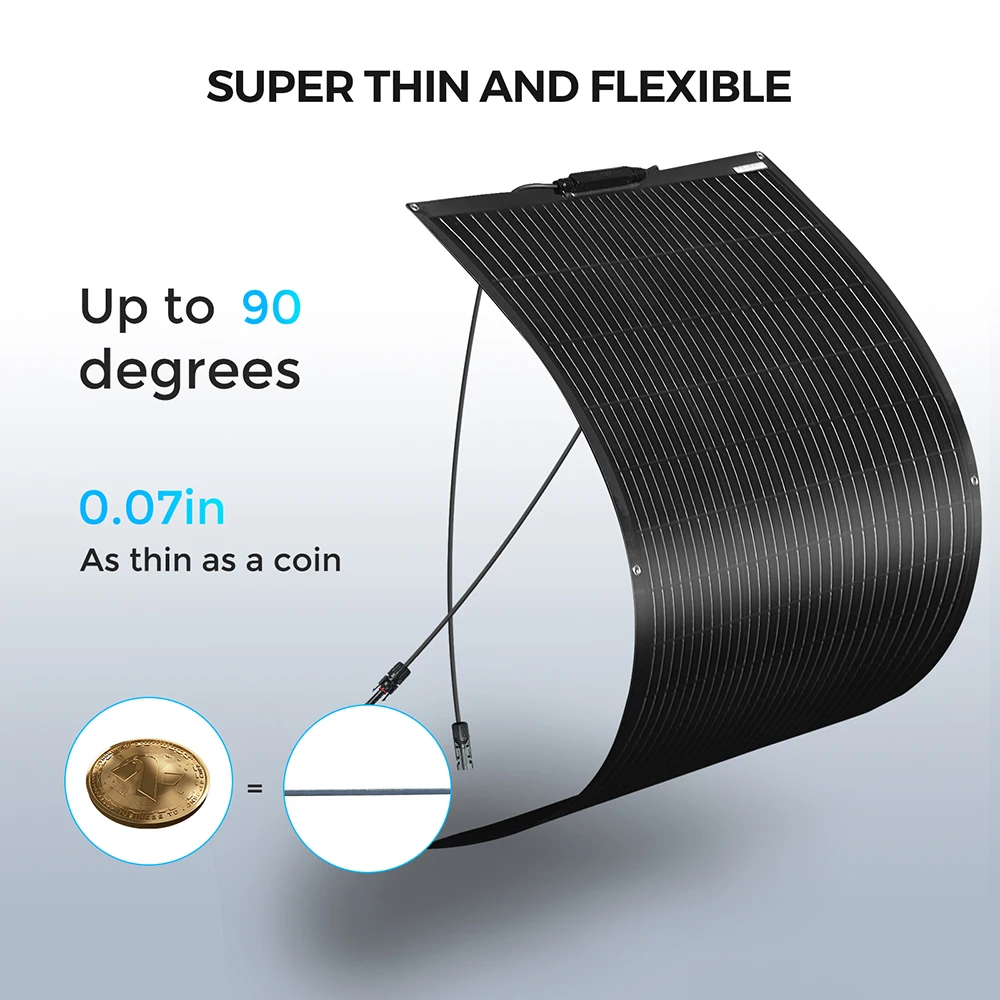

b. Using the latest component packaging technology, thinner, lighter, softer and longer life.

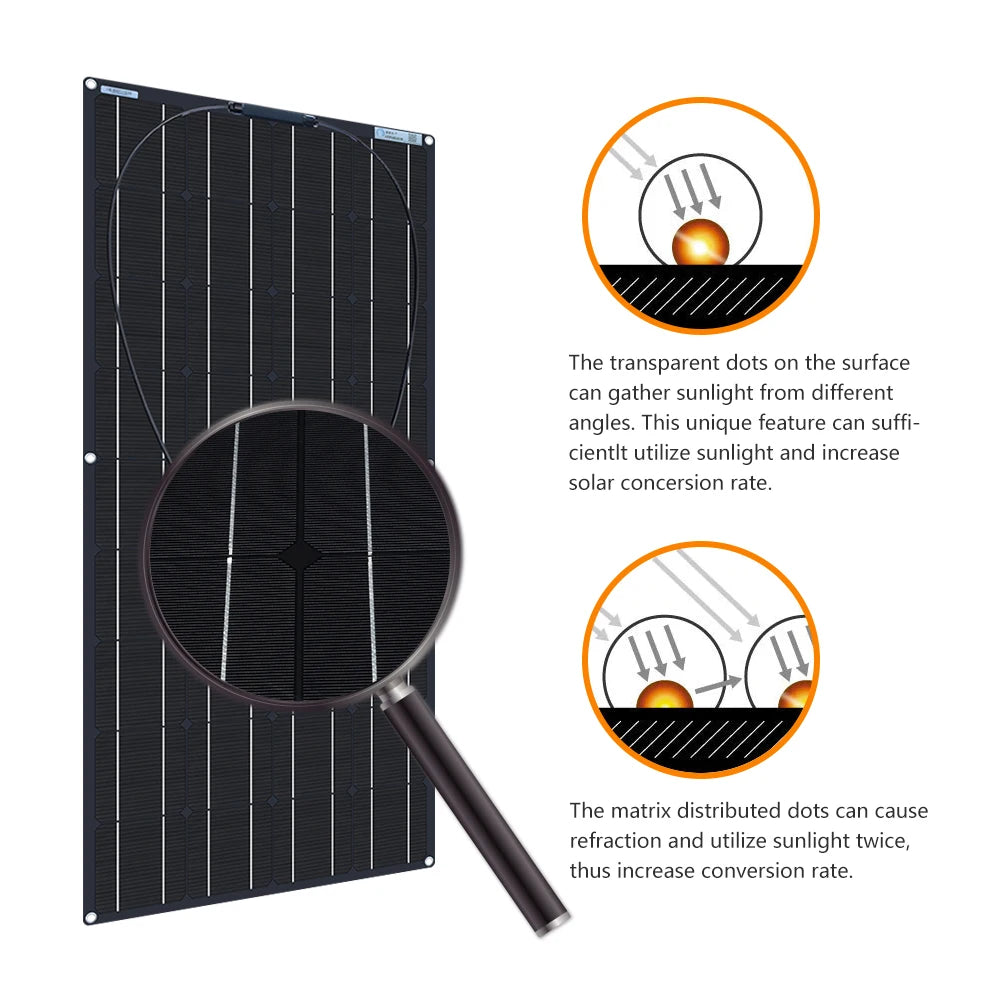

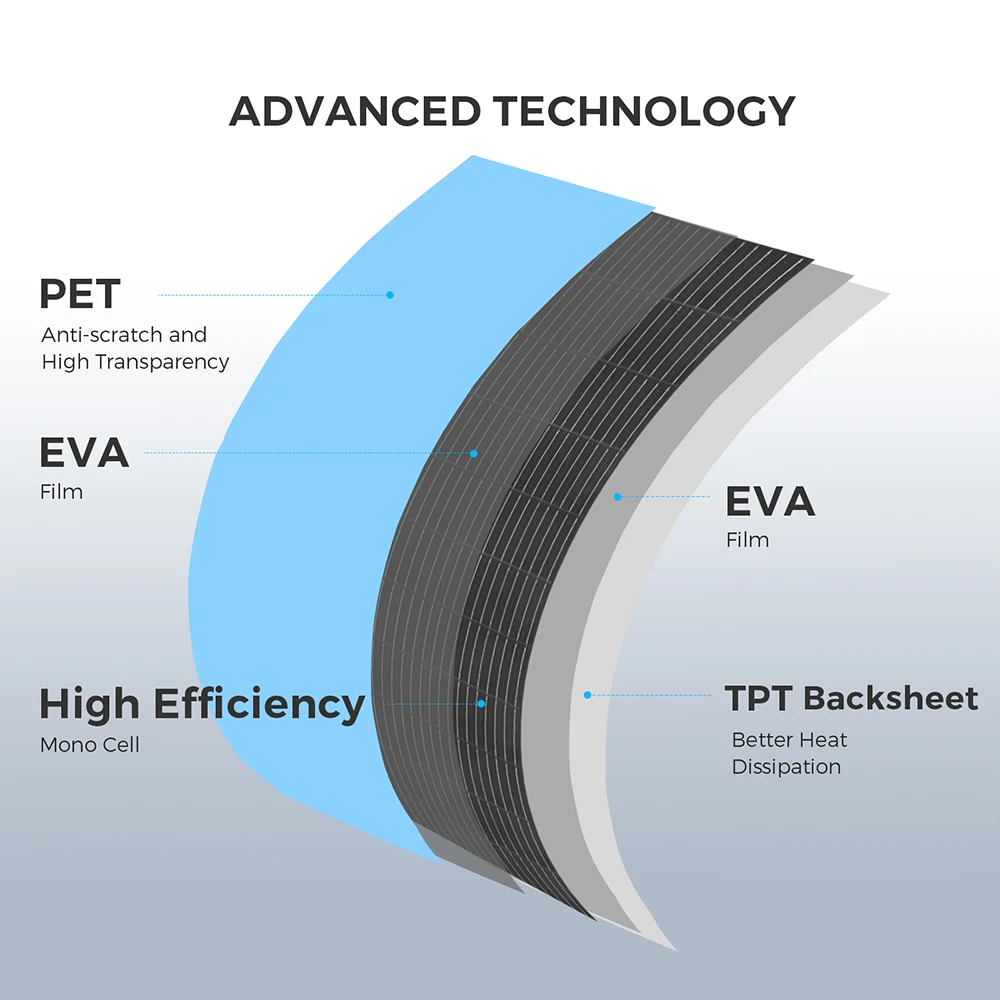

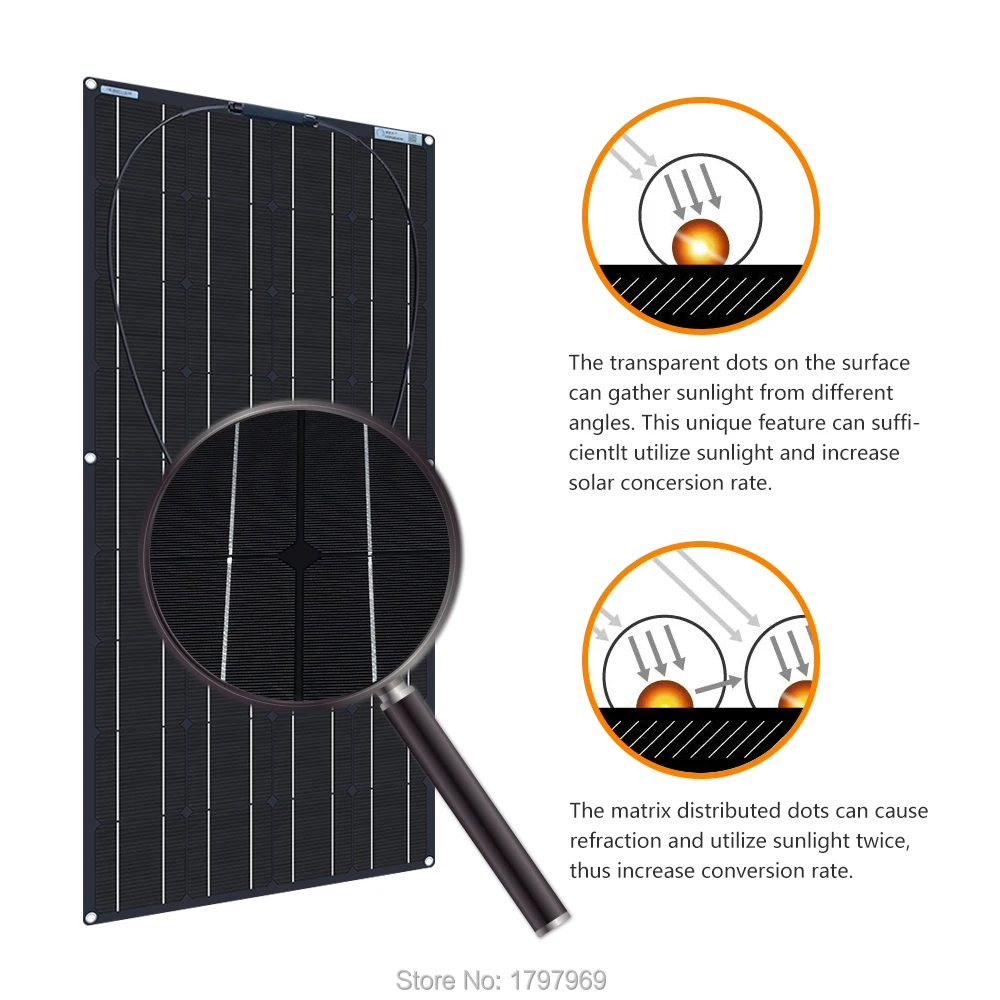

c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

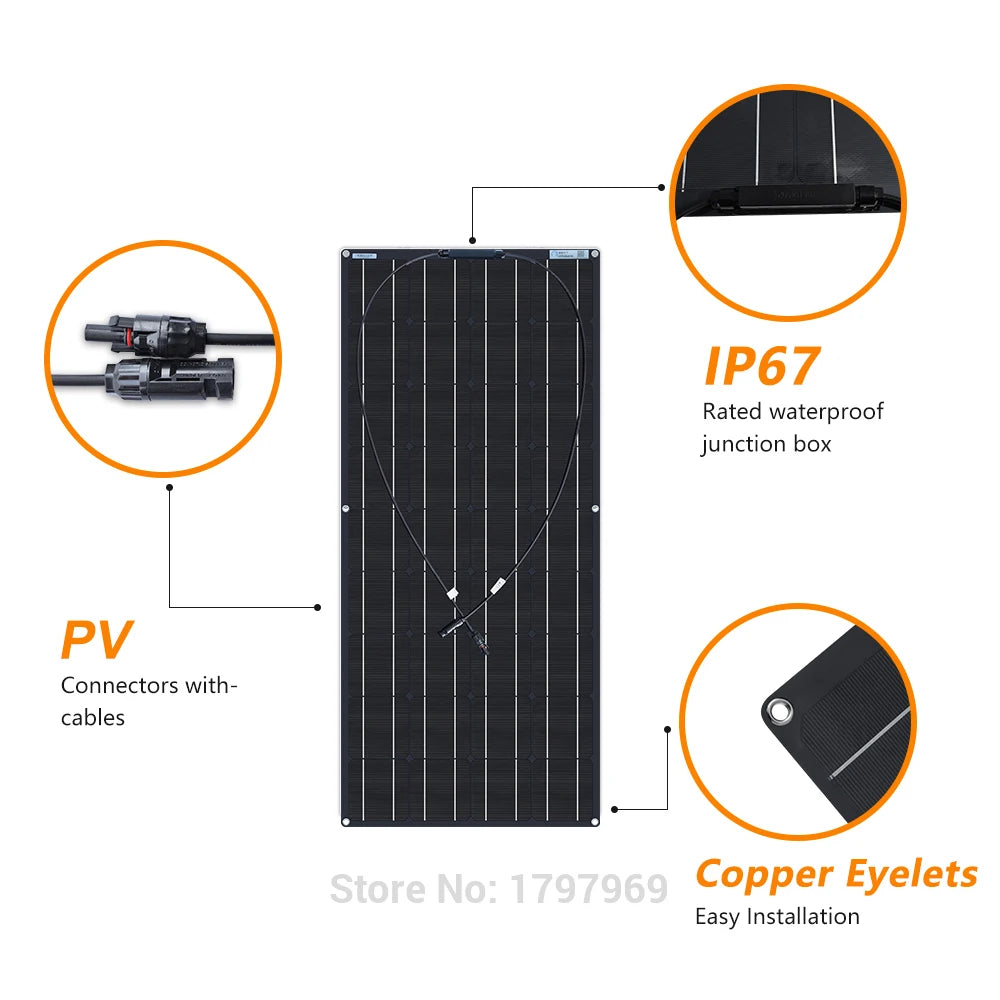

e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.
f. Use photovoltaic special cable and PV connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play.

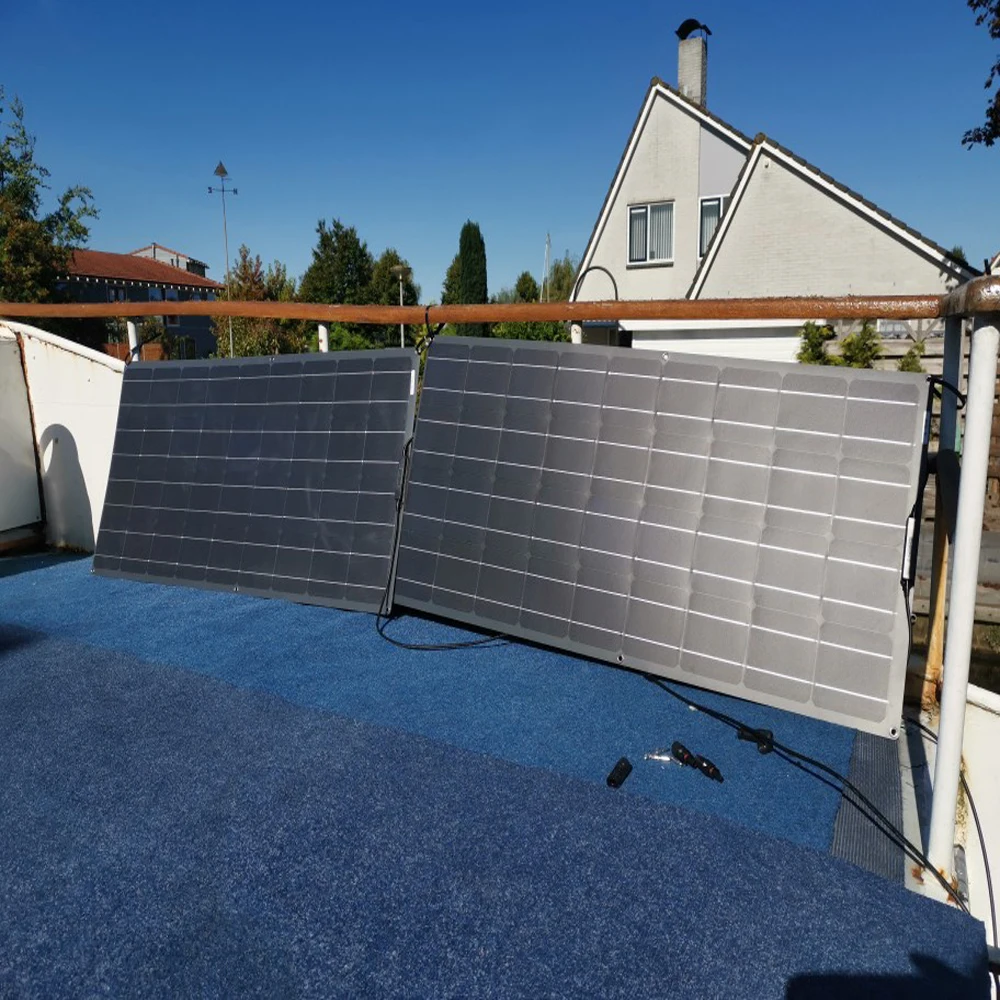

g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.
1pcs solar panel Package include:

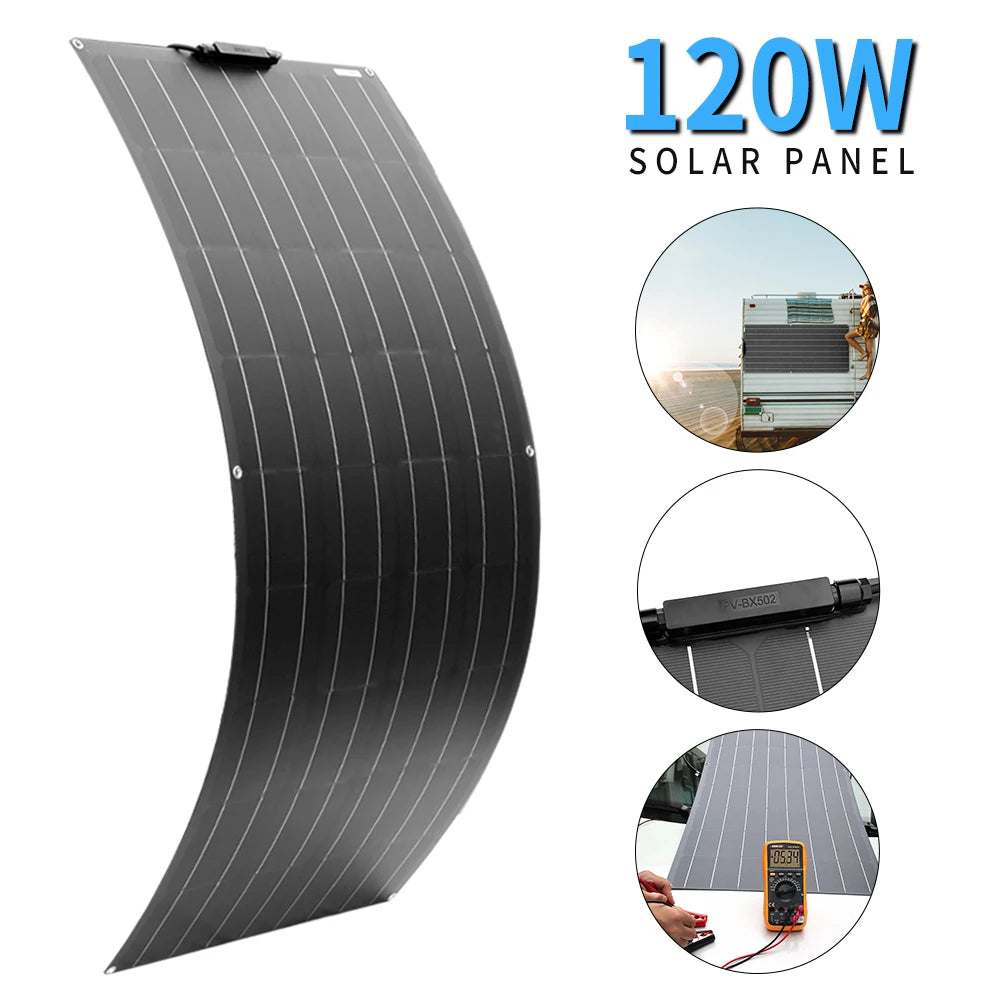

1 x 120W solar panel

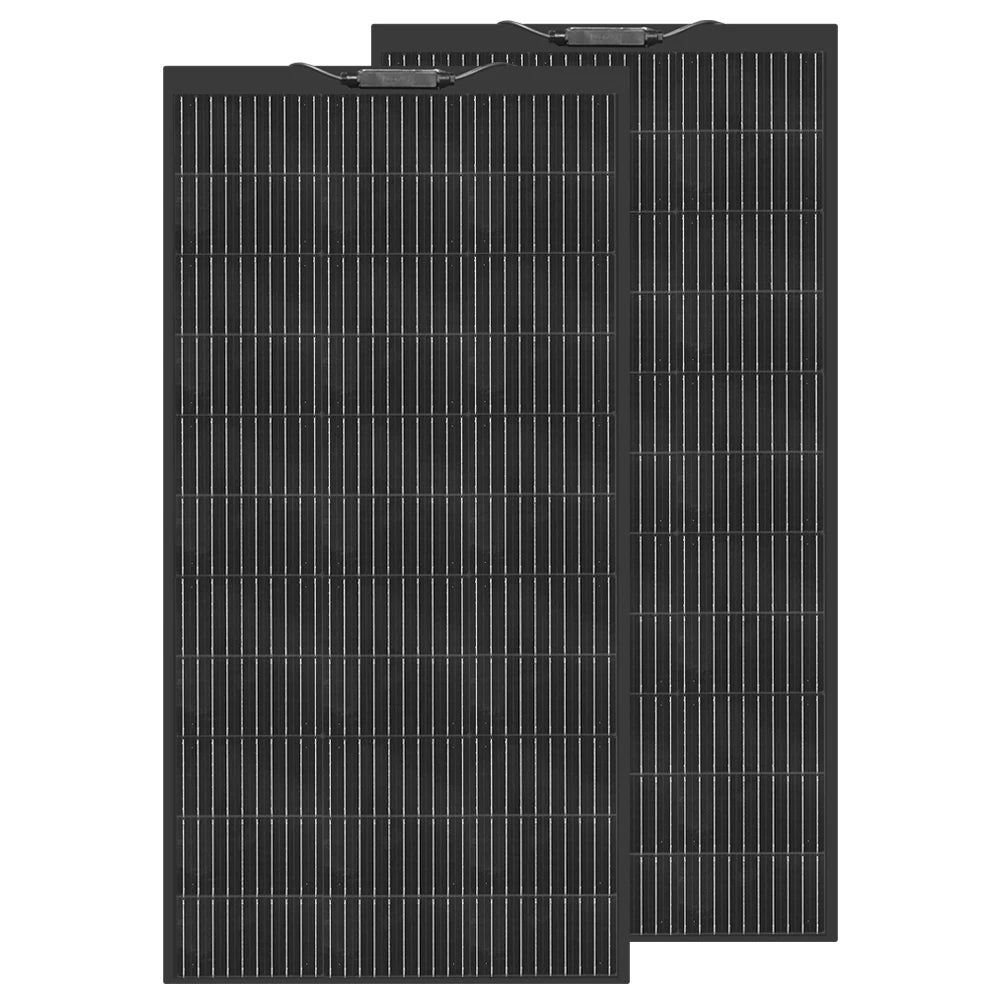

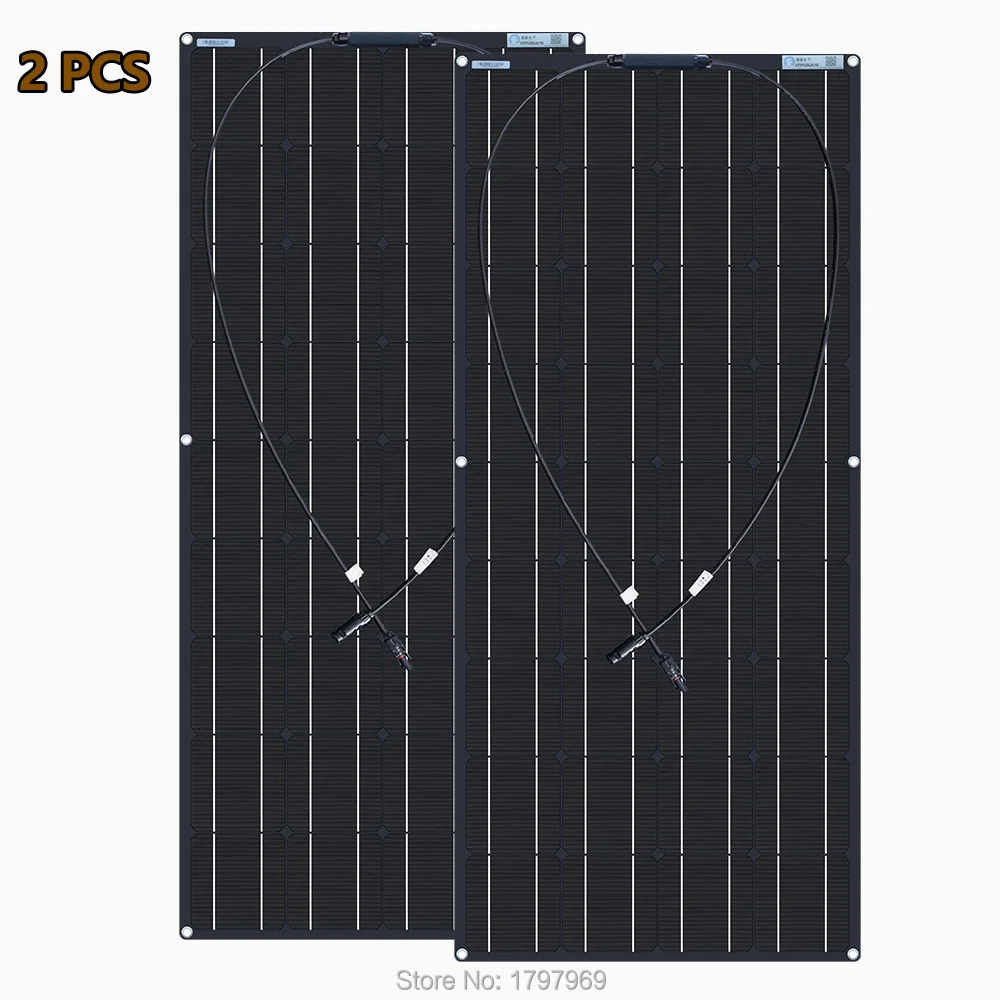

2pcs solar panel Package include:
2 x 120W solar panel

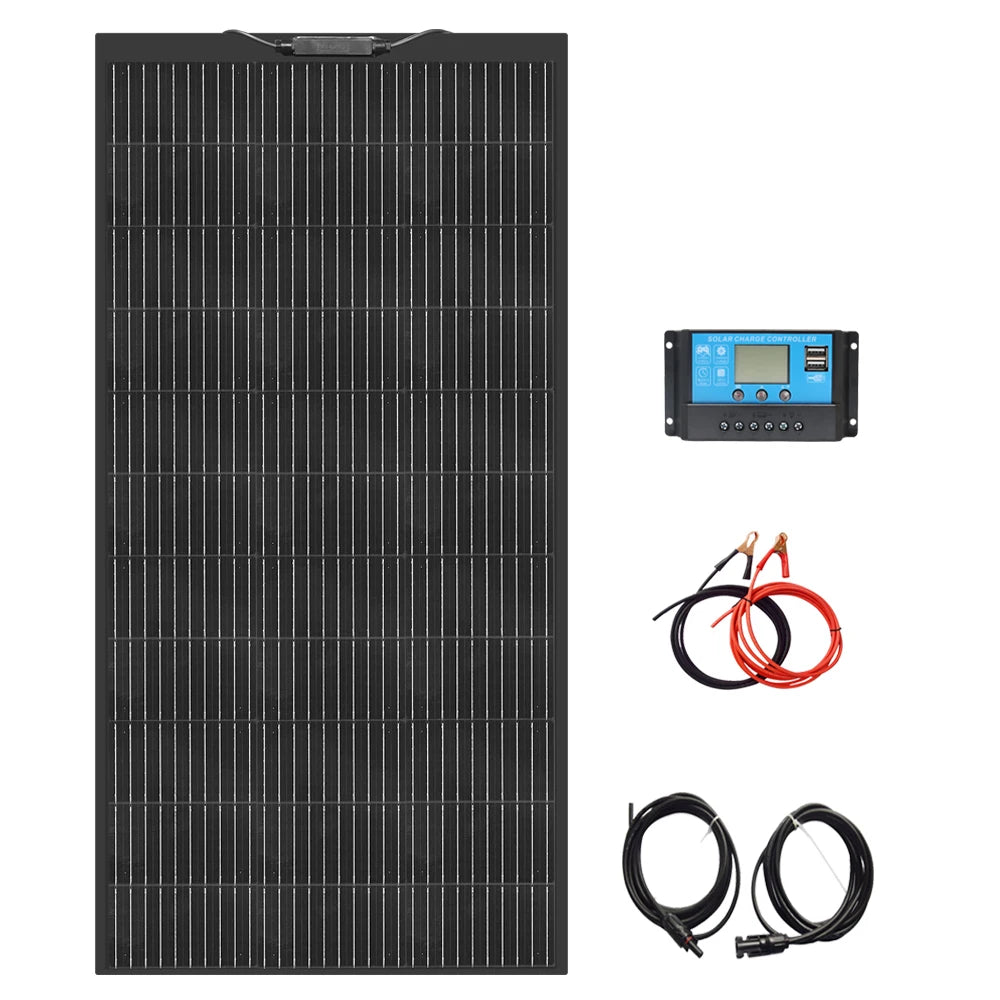

120W solar panel kit Package include:
1 x 120W solar panel
1 x 12v 10A Solar Controller
1 x 3M pv cable
1 x 3M alligator clip cable

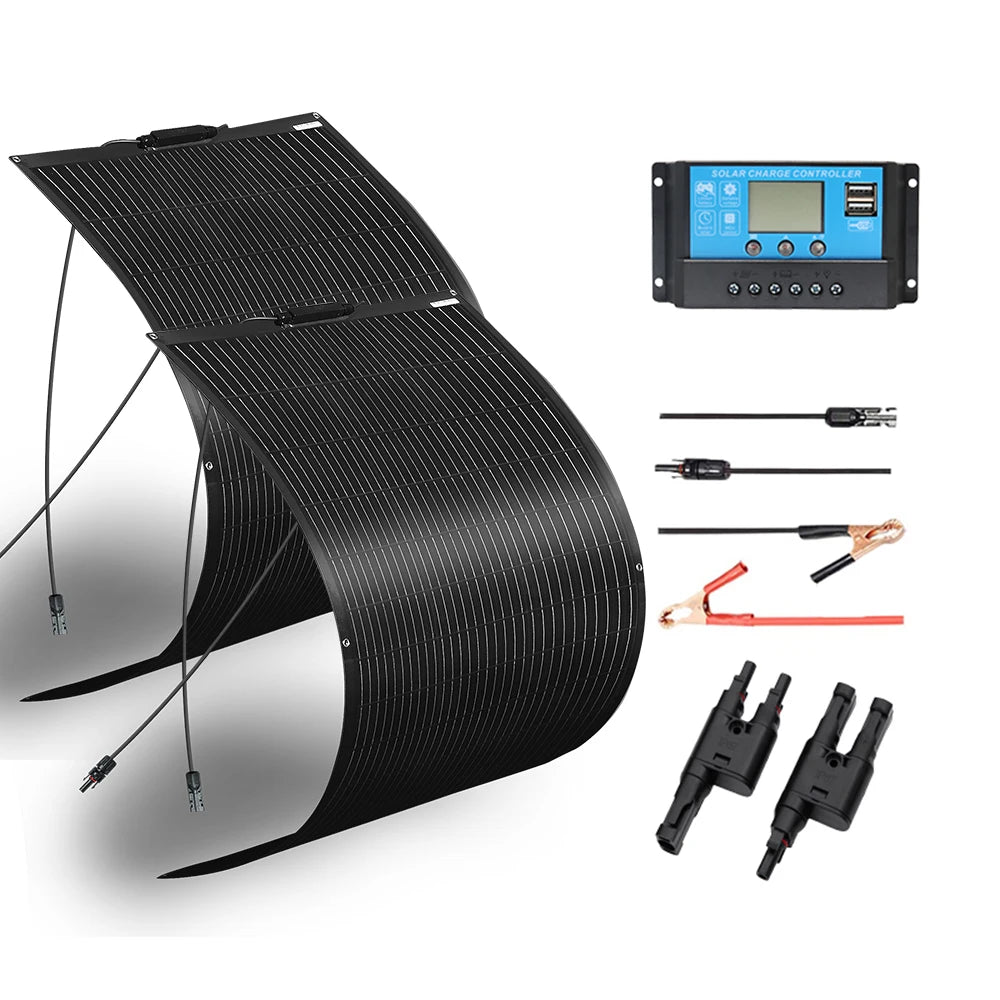

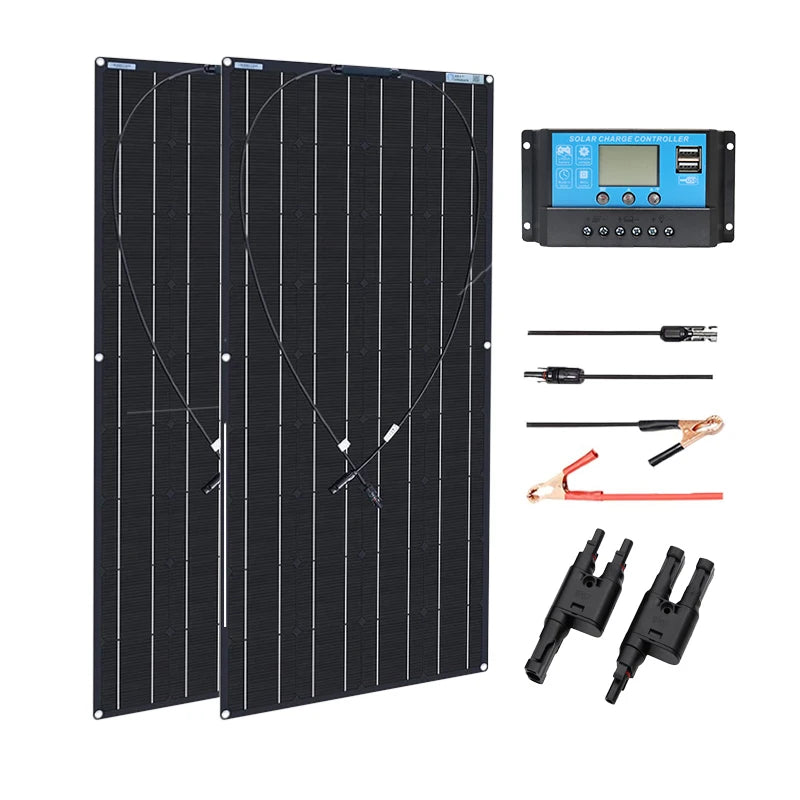

240W solar panel kit Package include:
2 x 120W solar panel
1 x 12v /24V 20A Solar Controller
1 x 3M pv cable
1 x 3M alligator clip cable
1 x 2 in 1 connector
18.15V 120W Solar Panel Specification
Maximum power(Pmax) 120W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 6.9 A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 6.6A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 2060g

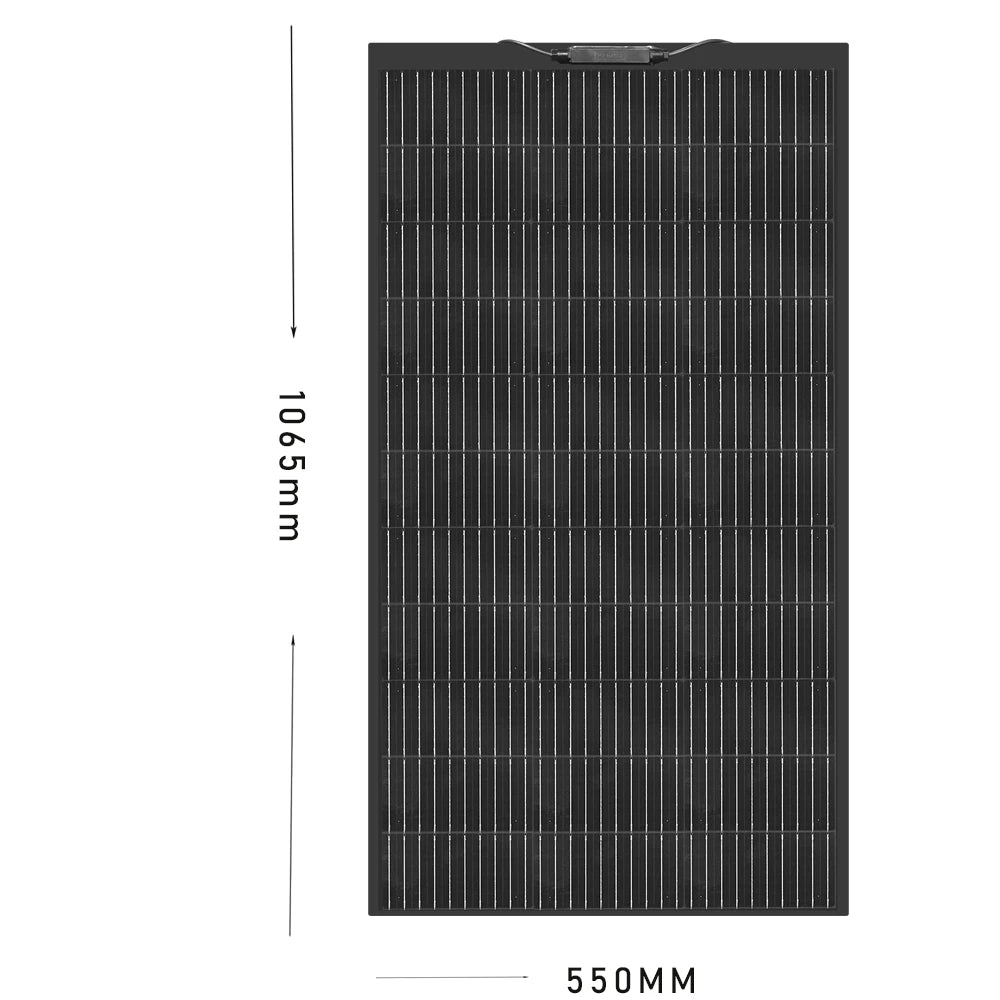

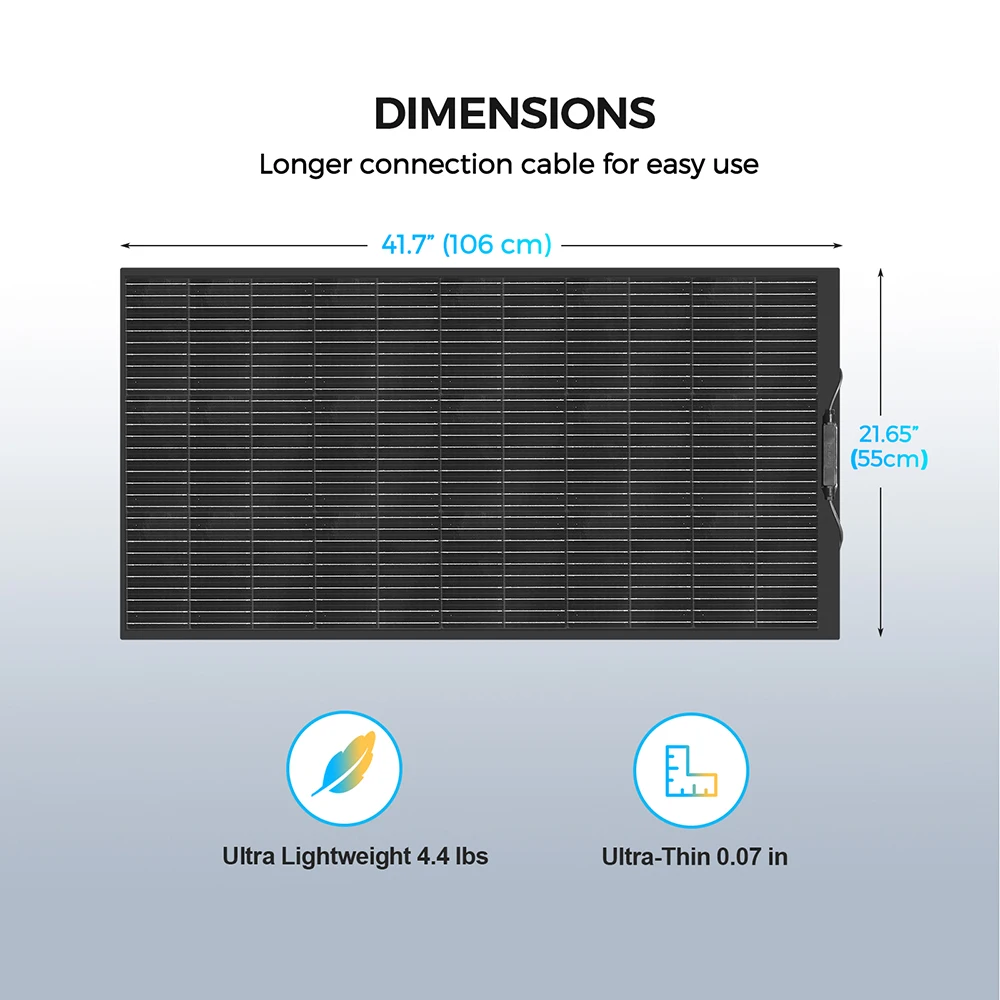

Size 1065*550*3 mm
Standard Test Conditions : irradiance 1000w/m^2,Temperature 25℃, AM=1.5
Features:
* Conversion efficiency 23%.
* Generate electricity all day in the sun.
* Can be used for fish tank circulation system, monitoring group, household photovoltaic energy storage,
* Lightweight and easy to install.
* Outdoor photovoltaic power generation portable device.
* Wide range of compatibility: sailboats, yachts, marine applications, motorhomes, expedition vehicles, commercial trucks, caravans, off-grid and telematics sites, etc.
Notes for use:
a. This product must not come into contact with highly corrosive substances.
b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.
c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.
d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.
e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.
f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.
g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.
h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.
i. The inverter can only be connected to the battery, not directly to the controller.
