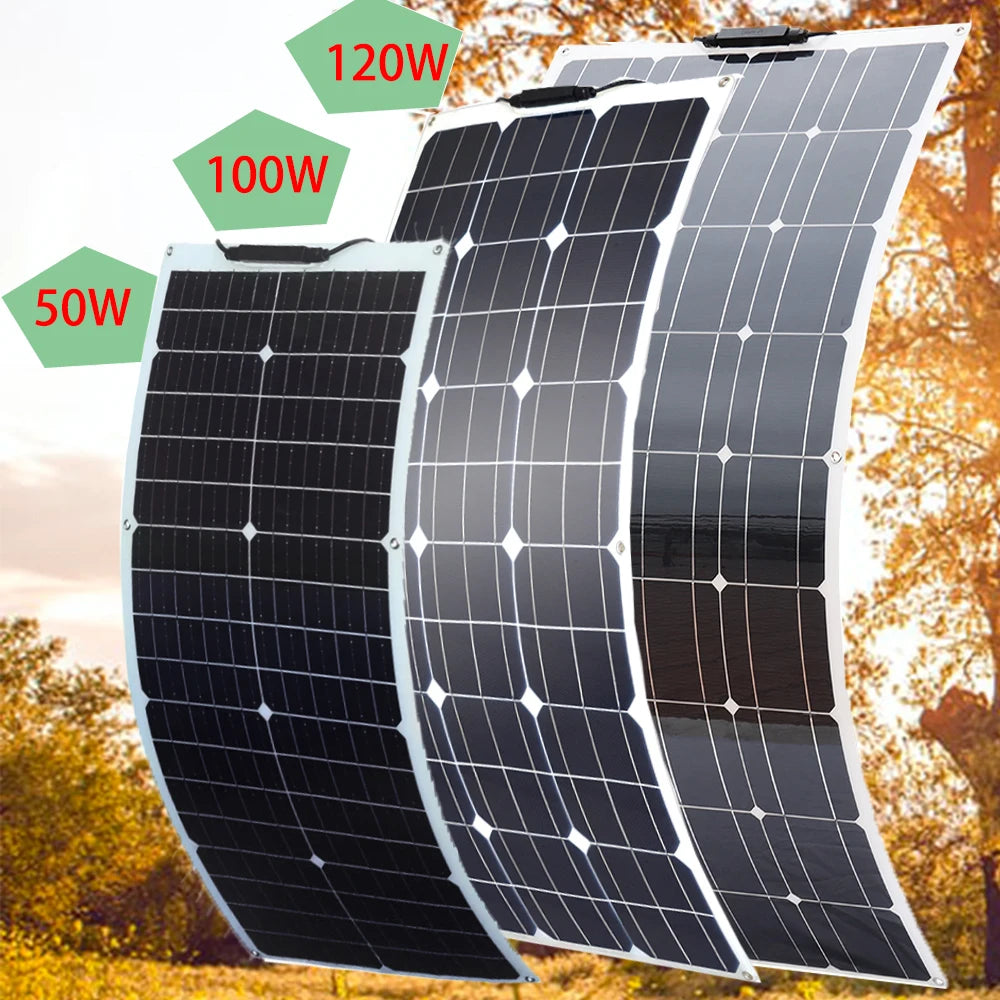

18v Flexible solar panels 50/ 100/ 120w solar - 12v battery charger waterproof
18v Flexible solar panels 50/ 100/ 120w solar - 12v battery charger waterproof
Refund if package lost - items damaged - no delivery in 35 days
- CE
- FCC
- ROHS
- WEEE
SPECIFICATIONS
Brand Name: BOGUANG
Number of Panels: 1
Flexible Solar Panel: Yes
Foldable Solar Panel: No
High-concerned Chemical: None
Type: Solar Panel
Module Efficiency: 24%
Model: Flexible Solar Panels
Material: Monocrystalline Silicon
Nominal Capacity: 18V /19.8V
Number of Cells: 36 solar cell
Max. Power: 50W / 120W /120W
Customisable: Yes
50W Flexible Solar Panel: 19.8V 50W
100W Flexible Solar Panel: 19.8V 100W
120W Flexible Solar Panel: 18v 120W
Dimensions:

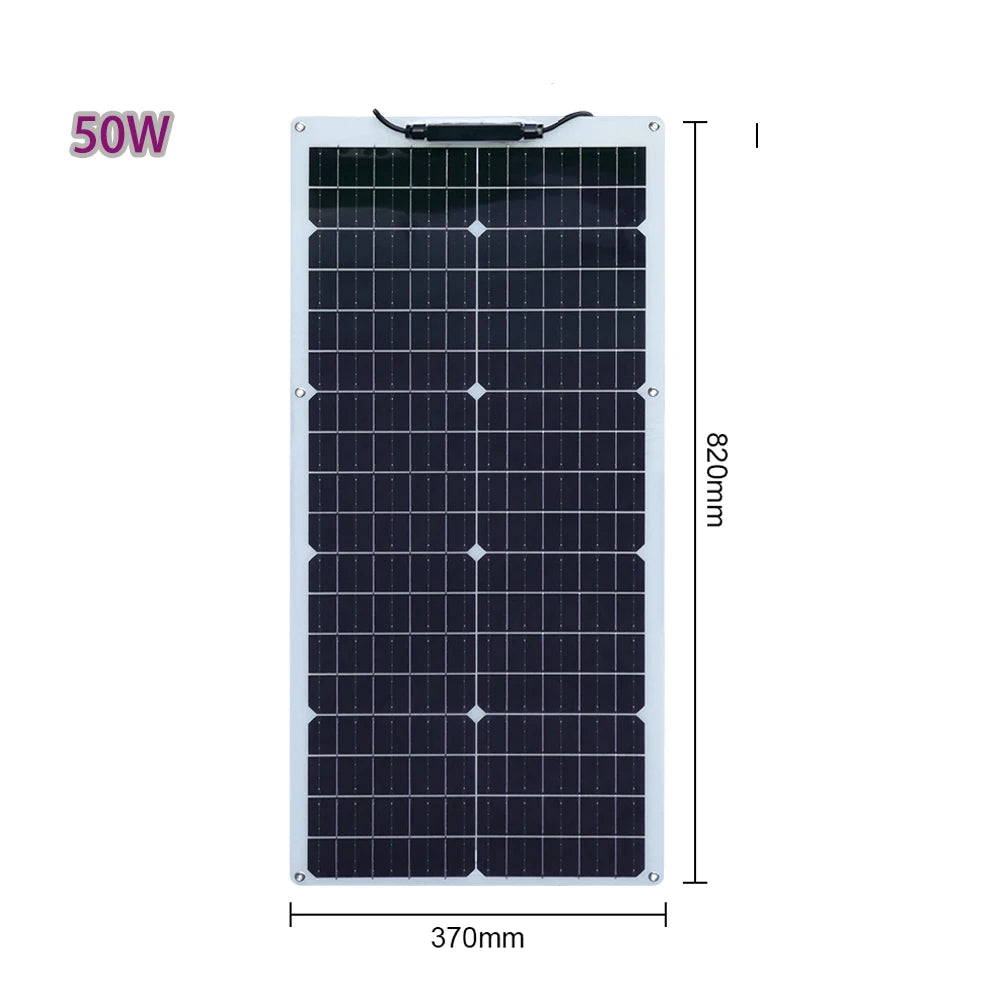

50W Flexible Solar Panel size: 820x370x3mm

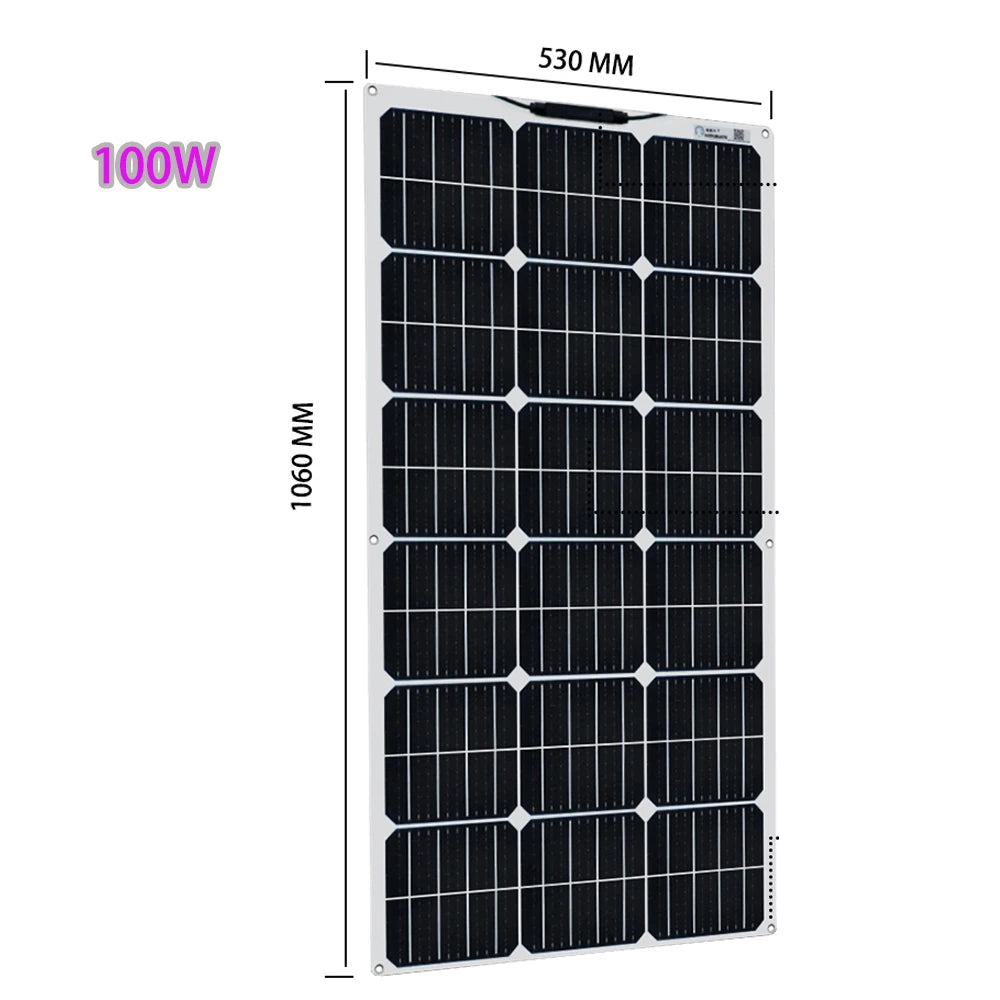

100W Flexible Solar Panel size: 1060x530x3mm

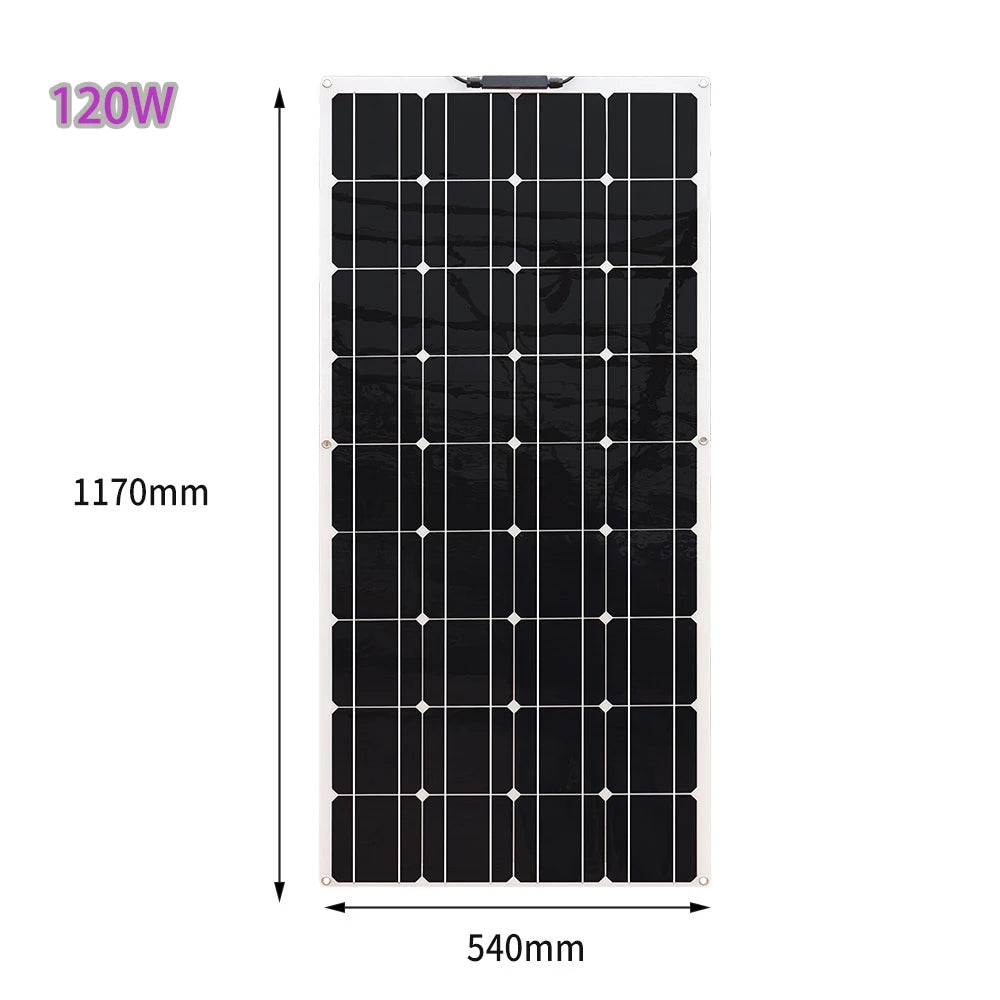

120W Flexible Solar Panel size: 1170x540x3mm
Solar Panel: Semi-Flexible

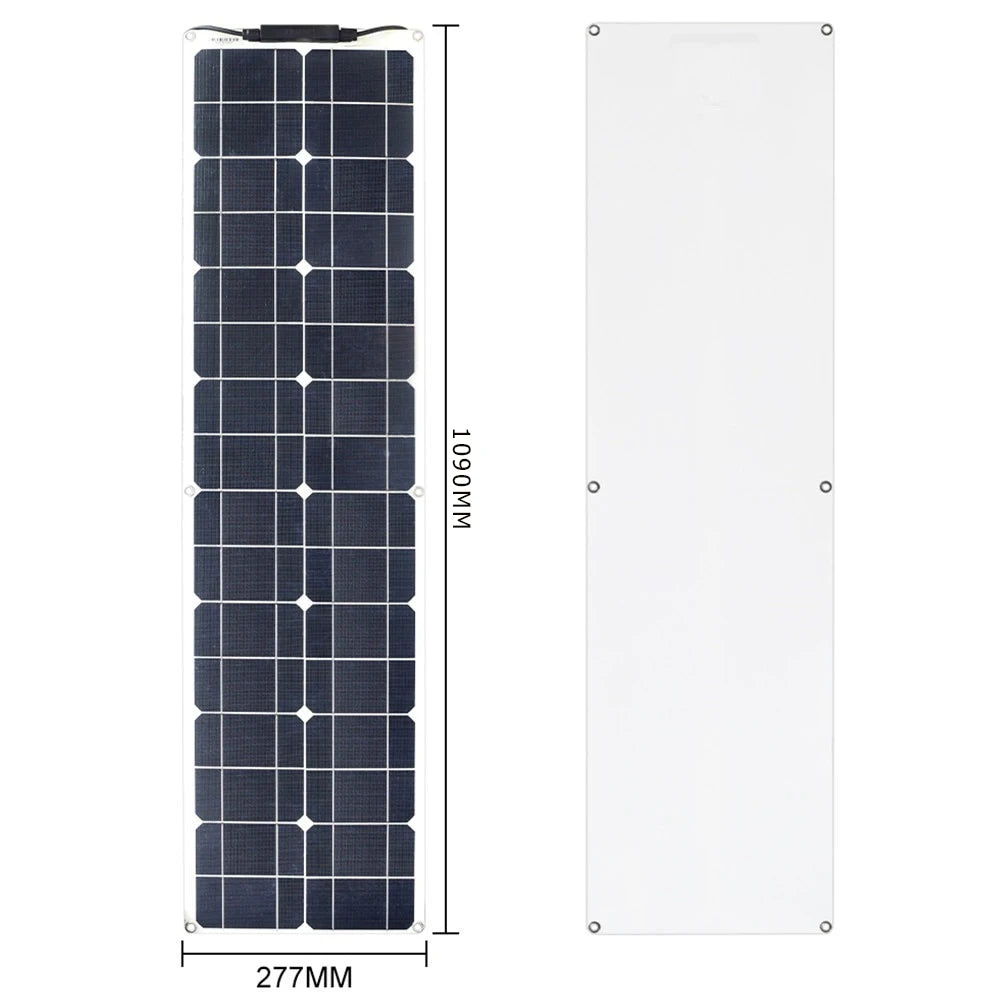

16V 50W Flexible Solar Panel size: 1090*277*3mm
Features:
- Conversion efficiency 21%.
- Generate electricity all day in the sun.
- Can be used for fish tank circulation system, monitoring group, household photovoltaic energy storage
- Lightweight and easy to install.
- Outdoor photovoltaic power generation portable device.
- Wide range of compatibility: sailboats, yachts, marine applications, motorhomes, expedition vehicles, commercial trucks, caravans, off-grid and telematics sites, etc.
19.8V 50W Specification:
Cell material: Monocrystalline silicon
Pmax (Power at Maximum under STC):50W
Imp (Current at Max Power, A): 2.52A
Vmp(Voltage at Max Power, V): 19.8V
Voc(Voltage at Open Circuit): 21.8V
Isc (Current at Short Circuit, A): 2.65A
Solar Cell Efficiency: 24%
Size of module: 820*370*3mm
Net Weight: 2.56Ib (1.1kg)
Length of Cables: 50.038cm
19.8V 100W Specifications
Maximum power(Pmax) 100W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 23.7V
Short circuit current(Isc) 5.55A
Maximum power voltage(Vmp) 19.8V
Maximum power current(Imp) 5.05A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Number of cells 33pcs
Weight 1950g
Size 1060*530*3 mm
Colour: Black
Standard Test Conditions: Irradiance 1000w/m2,Temperature 25℃,AM=1.5
18V 120W Specification
Maximum Power(Pmax): 120W
Output Tolerance: ± 3%
Maximum System Voltage: 700V DC
Open Circuit Voltage(Voc): 21.6V
Maximum Power Voltage(Vmp): 18V
Short Circuit Current(Isc) 6.8 A
Maximum Power Current(Imp) 6.5A
Cell Efficiency: 21%
Operating Temperature(NOCT): 45±2℃
Temperature Range: -40℃~+80℃
Number Of Cells: 36pcs
Weight: 2100g
Size: 1170*540*2.5 mm
Standard Test Conditions: Irradiance 1000w/m2,Temperature 25℃,AM=1.5
