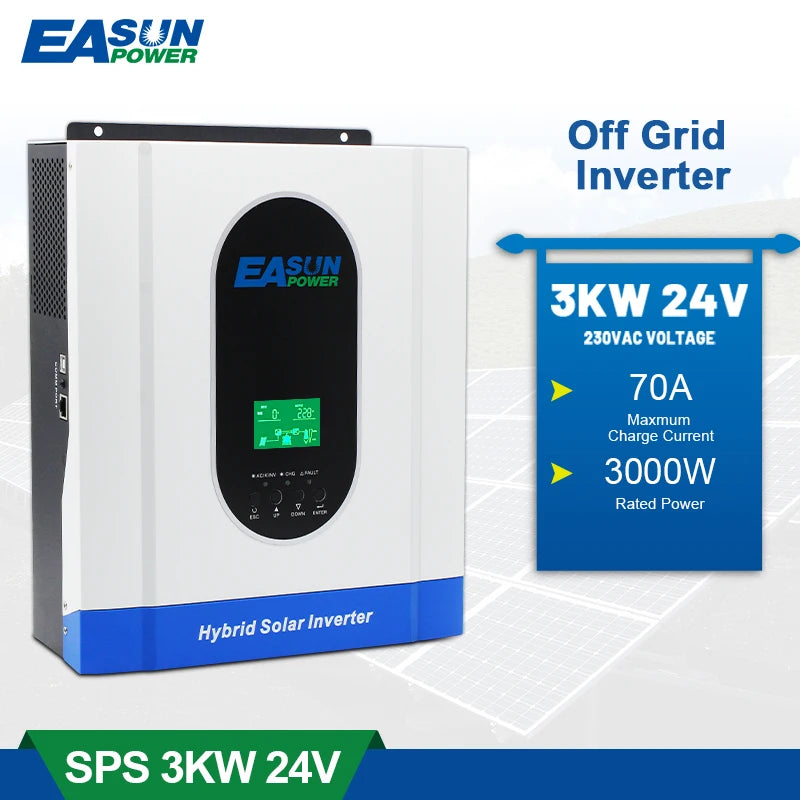

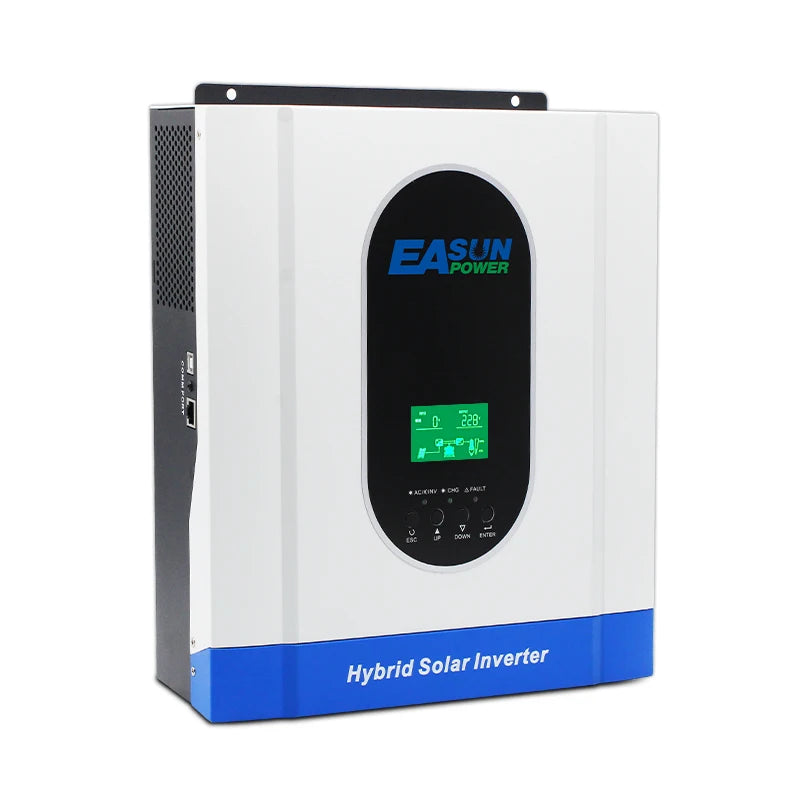

Solar Inverter - Hybrid Inverter PWM On/Off Grid
Solar Inverter - Hybrid Inverter PWM On/Off Grid
Couldn't load pickup availability
CE
SPECIFICATIONS
Dimension: 424x390x193mm
Output Frequency: 50Hz/60HZ
Output Type: SINGLE
Customisable: Yes
Output Current: 50A
Output Power: 1 - 200KW
Weight: 8KG
Smart Device: YES
Model Number: SPS 3KW
Usage
A) Inverter 3000W
B) Solar inverter 24v
----------------------
Description
1) Inverter Charger
2) Pure sine wave inverter charger
----------------------
Functions
1) Solar inverter 220V
2) Solar inverter 24V 220V
Output Voltage: 220-240VAC
Maximum PV Array Power: 1200W
PWM Range Operation Voltage: 18-80VDC
Maximum PV Array Open Circuit Voltage: 80VDC
Maximum Solar Charge Current: 50A
Maximum Charge Current: 70A

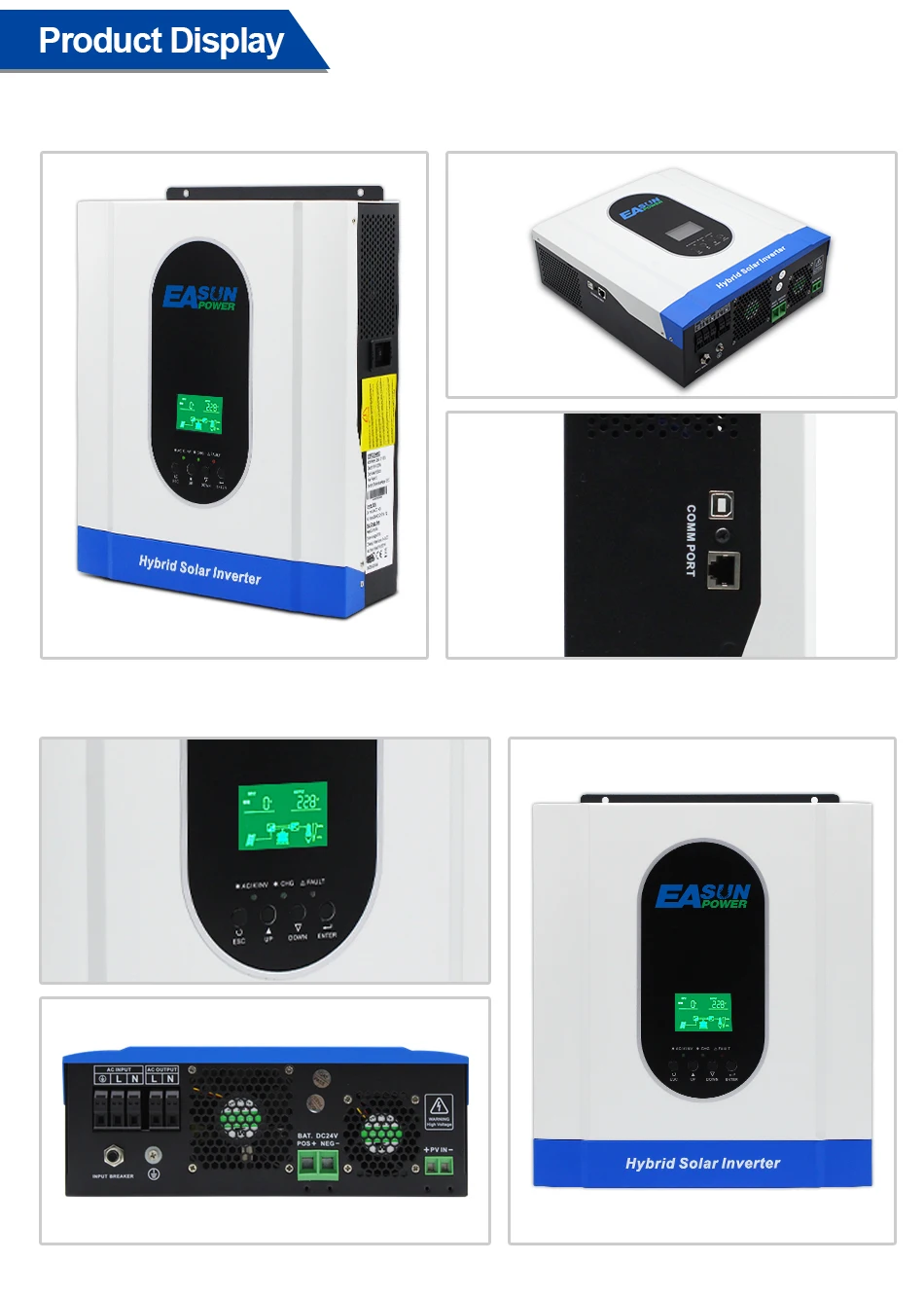

Solar Inverter 3000W Pure Sine Wave 3000VA 24V Battery Charger Inverter 220/230V 50Hz/60Hz Hybrid Inverter PWM On/Off Grid

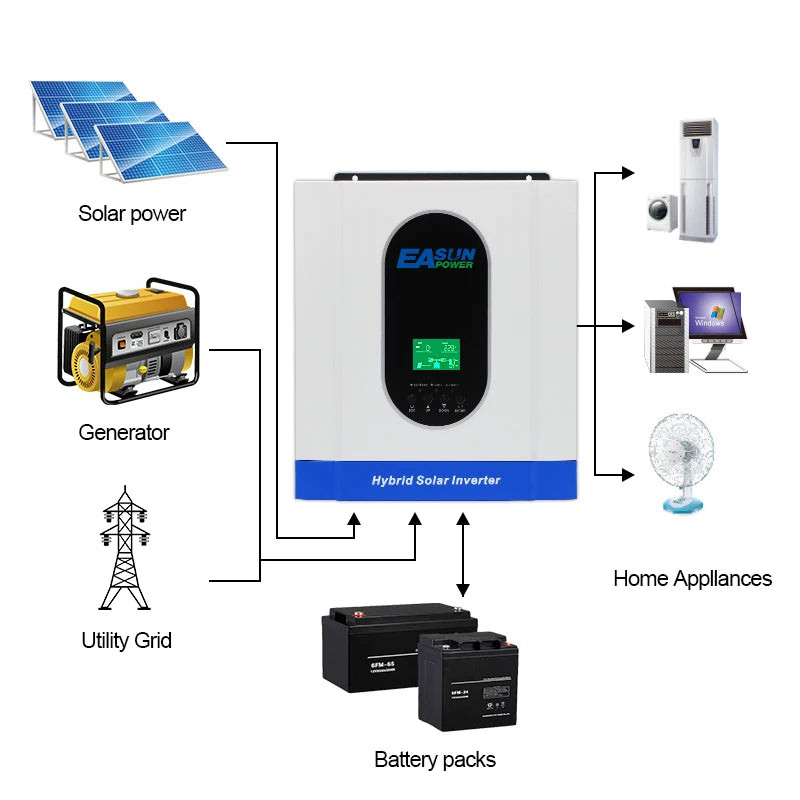

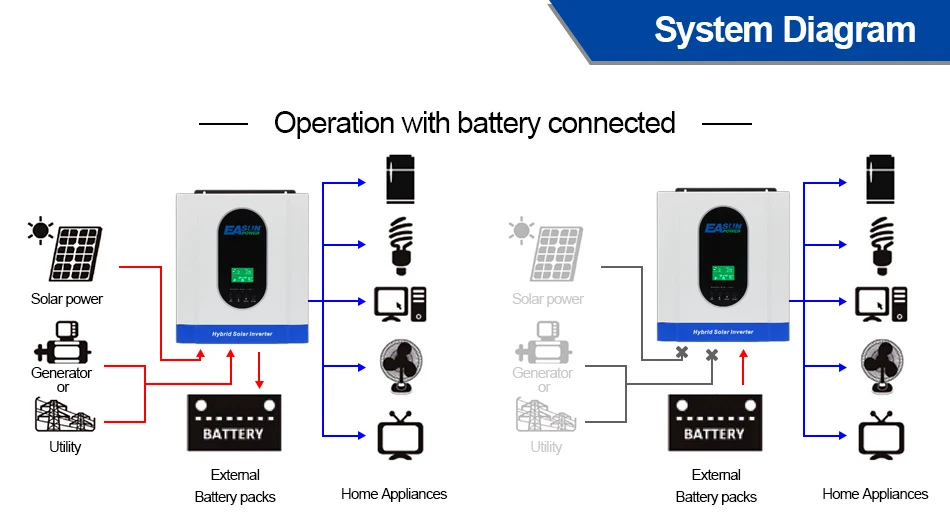

This is multi-function inverter/charger ,combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications
Features:
1. Pure sine wave, high frequency technology, wall amounted design, light weighted and easy to operate
2. Selectable input voltage range for home appliances and personal computers
|
Model |
SPS-3K |
|
The rated power |
3000VA/3000W |
|
INPUT |
|
|
Voltage |
230 VAC |
|
Selectable Voltage Range |
90-280VAC (For Personal Computers), 170-280VAC (For Home Appliances) |
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
|
OUTPUT |
|
|
AC Voltage Regulation (Batt. Model) |
230VAC ± 5% |
|
Surge Power |
6000VA |
|
Power factor |
1.0 |
|
Efficiency(Peak) |
90% |
|
Transfer Time |
10ms (For Personal Computers), 20ms (For Home Appliances) |
|
Wave form |
Pure sine wave |
|
BATTERY |
|
|
Battery voltage |
24VDC |
|
Floating Charge Voltage |
27VDC |
|
Overcharge Protection |
32VDC |
|
PWM SOLAR CHARGER & AC CHARGER |
|
|
Maximum PV Array Power |
1200W |
|
Best Panel configuration |
200Wp/36V*4pcs*30V(1200Wp) |
|
PWM Range Operation Vol |
18-80VDC |
|
Maximum PV Array Open Circuit Vol. |
80VDC |
|
Standby Power Consumption |
28W |
|
Maximum Solar Charge Current |
50A |
|
Maximum AC Charge Current |
25A |
|
Maximum Charge Current |
70A |
|
Maximum Efficiency |
98% |
|
PHYSICAL |
|
|
Products Dimension, D*W*H(mm) |
363*297*107mm |
|
Packing size, D*W*H(mm) |
424*390*193 |
|
Net Weight (kgs) |
N.W.: 7, G.W.:8KGS |
|
OPERATING ENVIRONMENT |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
Operation Temperature |
0℃-50℃ |
