DIANKAISHOU Battery

4pcs LiFePO4 32-320Ah Battery 3.2V - 12v/24v

4pcs LiFePO4 32-320Ah Battery 3.2V - 12v/24v

Regular price $636.08 CAD
Regular price Sale price $636.08 CAD
Sale Sold out
Shipping calculated at checkout.
Type
  • CE
  • FCC
  • ROHS

SPECIFICATIONS

Brand Name: DIANKAISHOU

Origin: China

Model Number: 3.2V-202AH

Size: 200*172*53mm

Weight: 5.2KG

Nominal Capacity: 200-202AH

Type: Lifepo4

Voltage: 3.2V






The protective plate and nut are gifts, shipped together and sent out

LIFEPO4 Applications:

Electric cars, airplane models, power tools, golf carts, touring cars, electric motorcycles, electric bicycles, laptop batteries, power tools, Yacht, Tour car, Medical instrument, Solar supply system, solar panel, solar storage, wind energy systems, LED flashlights, power tools, instruments, LED lighting devices, RC toys, airplane models, DIY battery pack, UPS, Inverter, household appliances and emergent device area, mobile devices, backup power supplies, etc.
Passenger cars and commercial plug-in hybrid electric vehicles (PHEV)
Passenger cars and commercial battery electric vehicles (BEVs)

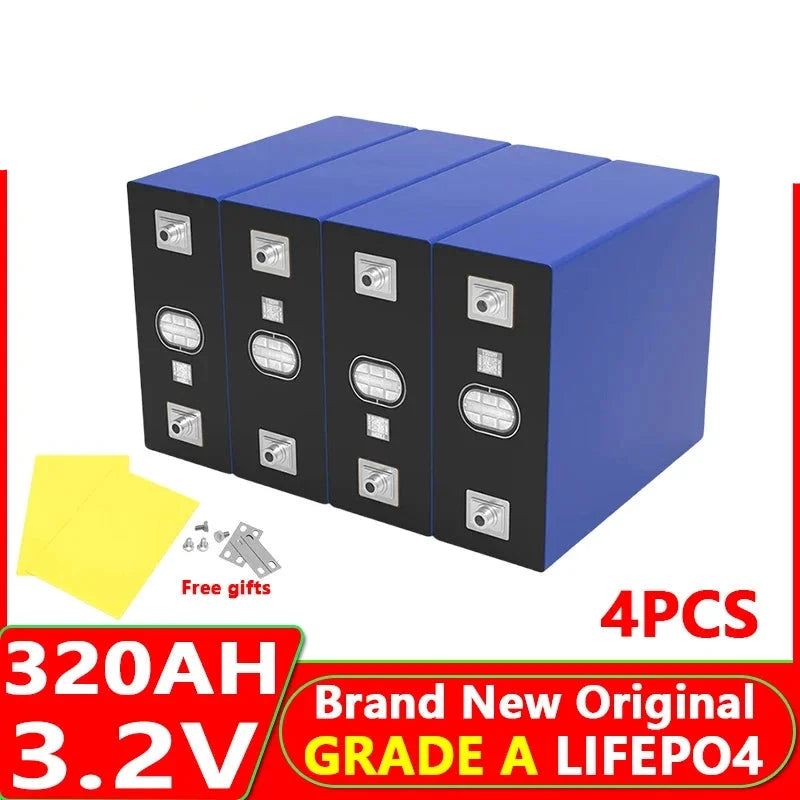

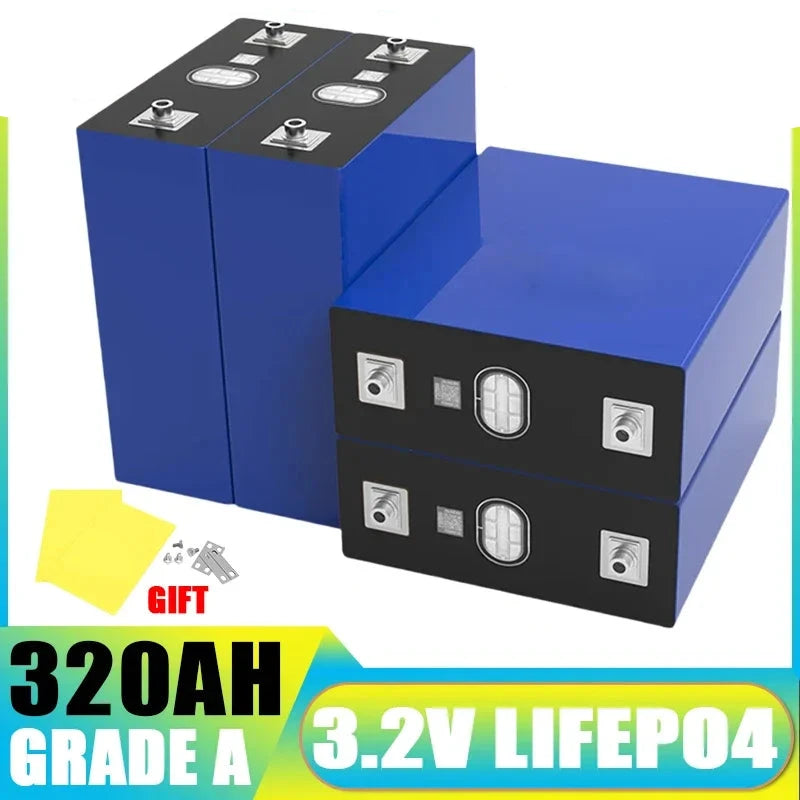

320AH GRADE A LIFEPO4 Detail Parameter

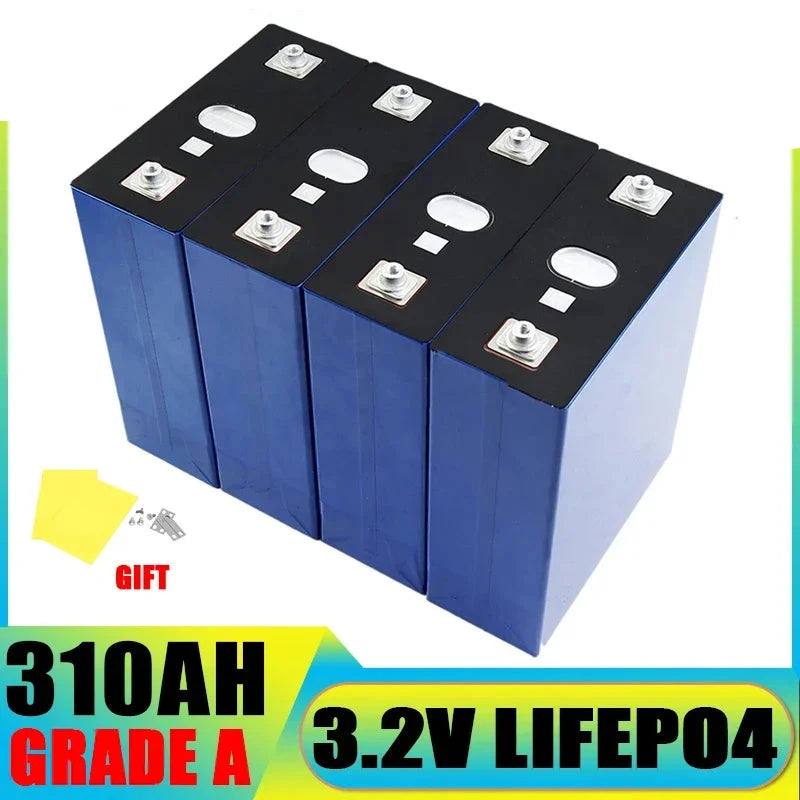

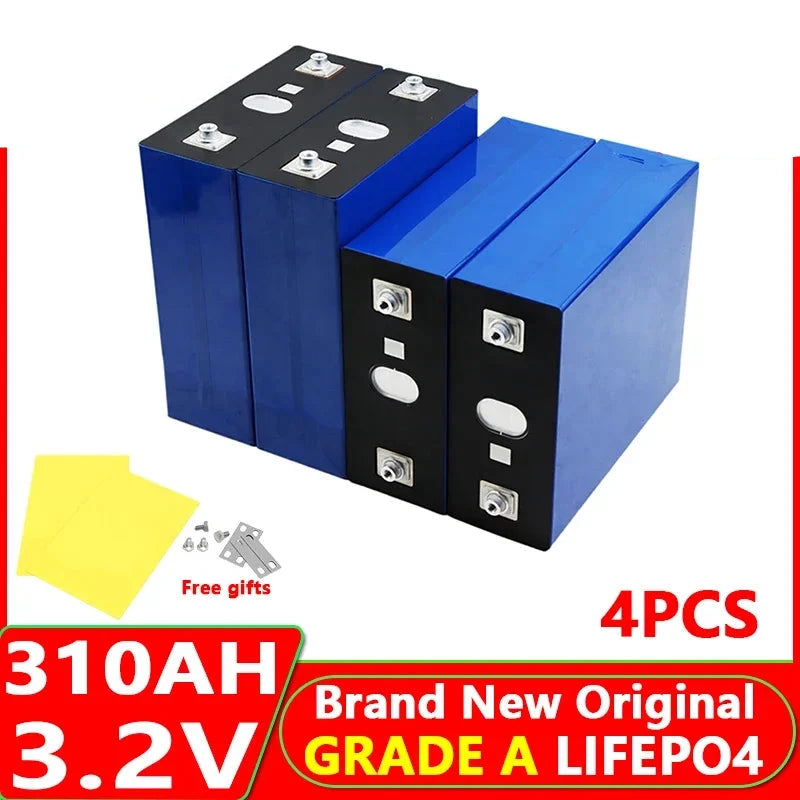

310AH GRADE A LIFEPO4 Detail Parameter

Battery Type: lithium iron phosphate battery
Shell Material: Aluminum
Nominal Capacity: 300-310Ah
Nominal Voltage: 3.2V
Operating Voltage Range: 2.5V-3.65V
Internal impedance: ≤0.30mΩ
Recommend Constant charge Current: 0.5C
Max Charge Current: 1C
Recommend Constant Discharge Current: 0.5C
Max Discharge Current: 3C
Size: 205*175*70mm
Cycle life (80%DOD): 6000 cycles
Weight: 5.5kg
Charging Temperature: 0~65°C
Discharging Temperature: -35~65°C
Screw Size: M6

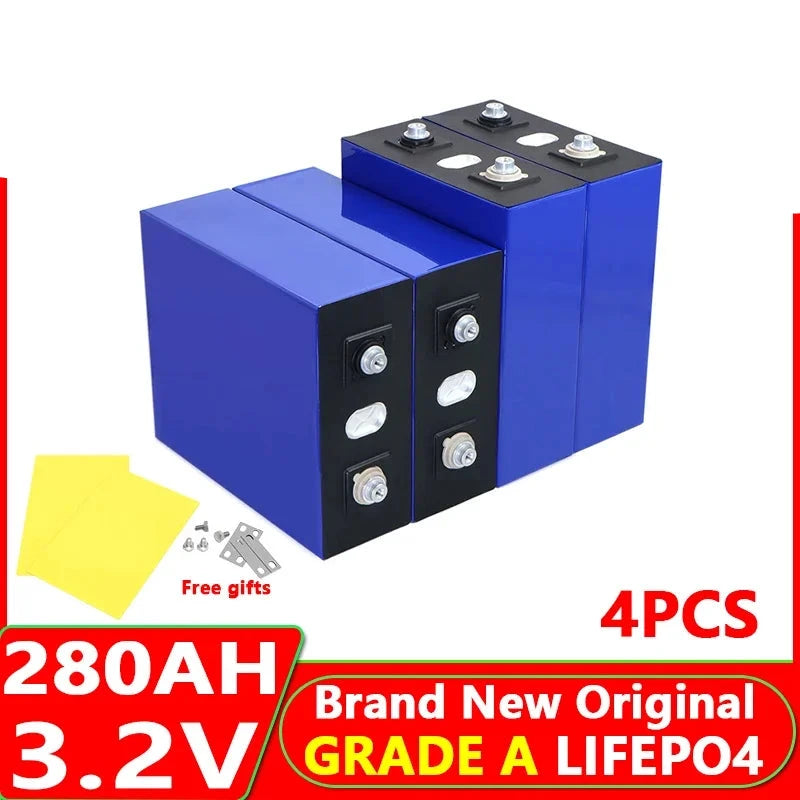

280AH GRADE A LIFEPO4 Detail Parameter

[Product specifications]
Battery Type: lithium iron phosphate
Battery Model: 3.2V 280Ah
Rated Capacity: 280Ah
Internal Resistance: 0.1~0.3mΩ
Nominal Voltage: 3.2V
Recommended Constant Current: 140A (0.5C)
Discharge Cut-off Voltage: 2.5V
Recommend Constant Current: 280A (1C)
Maximum charging voltage: 3.65V
Maximum Continuous Discharge Current: 280A (1C)
Maximum Pulse Discharge Current: 3C
Constant Current: 140A (0.5C)
Charging Voltage: 3.65V
Cycle Life: 6000 times (80% DOD)
Battery Weight: About 5.3KG
Size: 215*175*70mm
Charging Temperature: 0~45°C
Discharge Temperature: -25~65°C
Connection: Add column
Level: Grade A

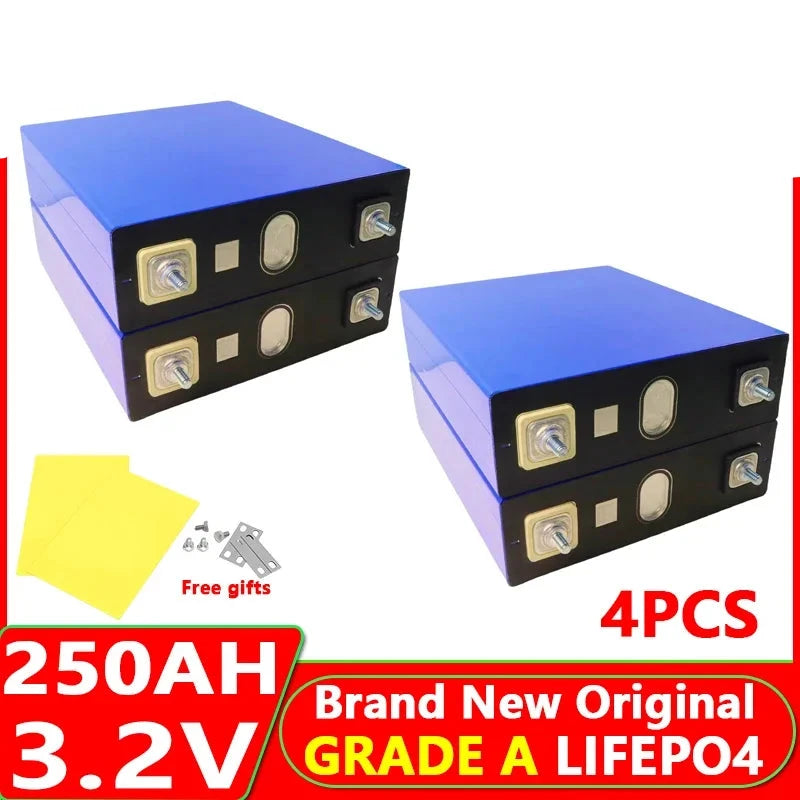

250AH GRADE A LIFEPO4 Detail Parameter

Battery Model: 3,2 v 250ah

Battery Model: 3,2 v 250ah
Current Capacity: 240-250 Ah (0.5 C Standard charging)

Battery Capacity: 220*174*53 mm

Battery Weight: 4040g

Low Voltage: 3.2 V

Maximum Pulse Width: 2.5 ~ 3.65 V

Standard Loaded Stroma: 0.5 c

Standard Maximum Stroma: 0.5 c

Maximum Maximum Stroke: 1.0 c

Maximum Pulse Maximum Stroma: 6.0 C

Wide Stand: ≤ 0.3 m Ω (1khz) ; 3% soc)

Low Temperature: 6000 kg (≥ 80% heat capacity)



Operating Temperature & Humidity Range

  • Temperature and Heating Temperature: 0 ~ 55 ℃
  • Temperature - 20 ~ 60 ℃
  • Temperature Range: - 20 ~ 50℃

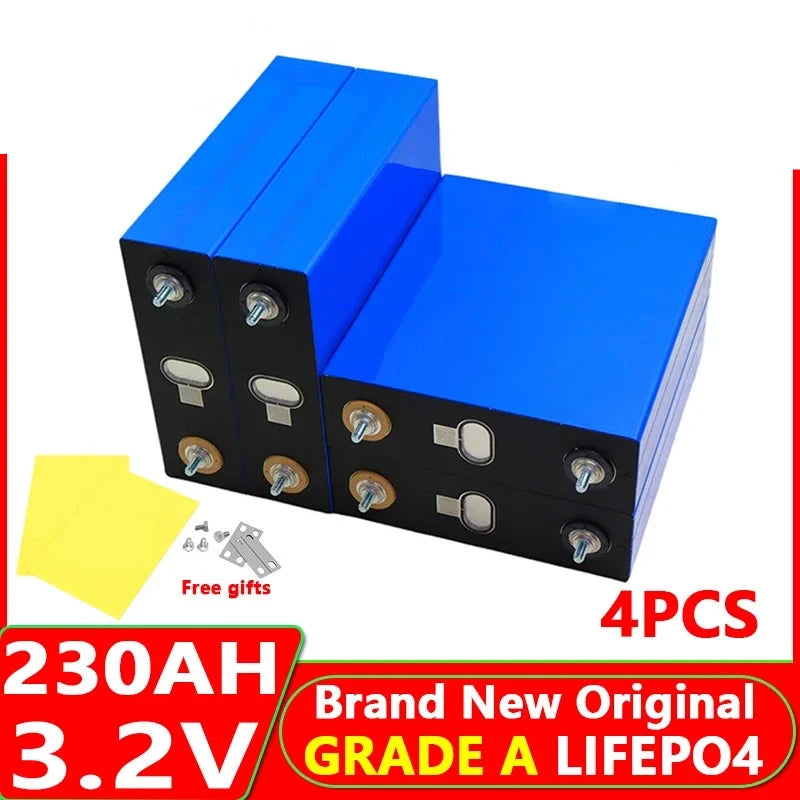

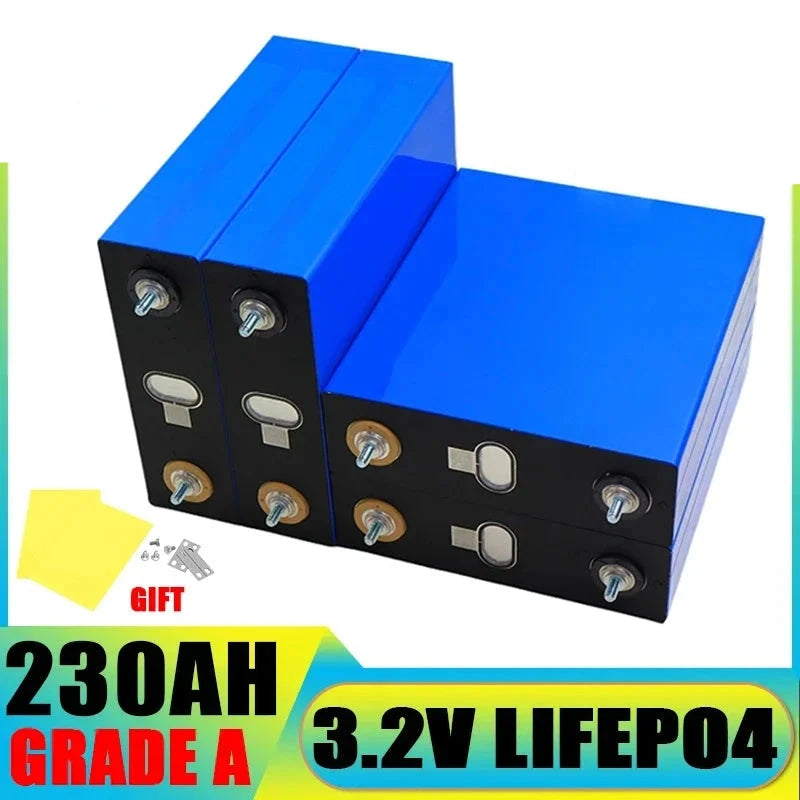

230AH GRADE A LIFEPO4 Detail Parameter

Battery Model: 3,2 v 230ah

Battery Capacity: 220ah-230ah (0,5 c Standard discharge)
Size: 220*174*53mm
Battery Weight: 4040g
Nominal Voltage: 3,2 V
Charging Voltage: 2.5 ~ 3,65 V
Standard Charging Current: 0.5 c
Standard Discharge Current: 0,5 c
Maximum Discharge Current: 1,0 c
Maximum Pulse Discharge Current: 6,0 c
Single Core Internal Resistance: ≤ 0,3 m Ω (1khz; 3% soc)
Cycle Life: 3000 Cycles (≥ 80% initial capacity)


- Operating Temperature & Humidity Range

  • Recharge: 0 ~ 55 ℃
  • Discharge: - 20 ~ 60 ℃
  • Long Time Storage Temperature: - 20 ~ 50 ℃

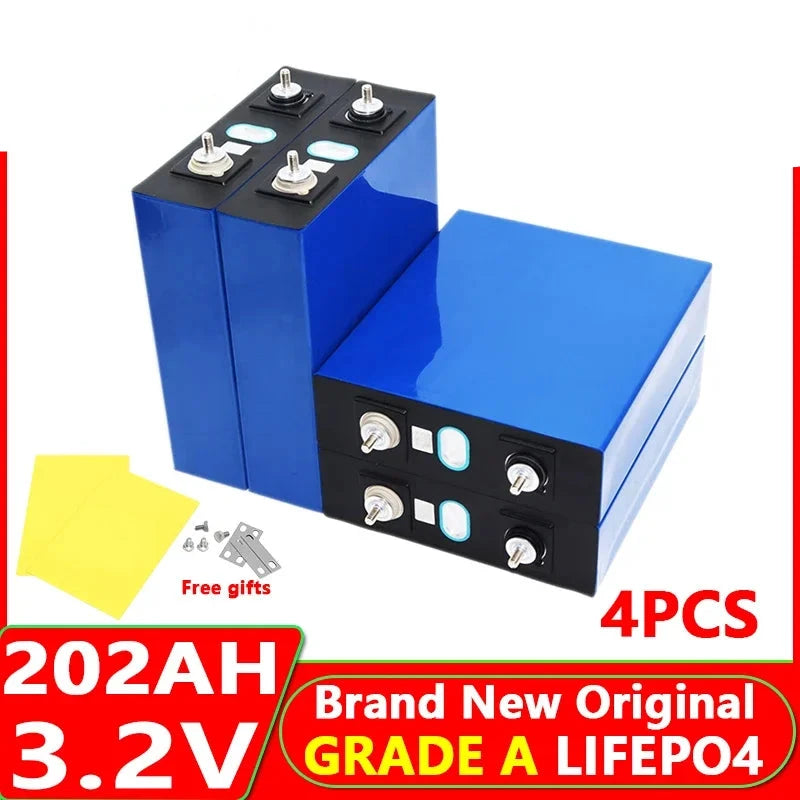

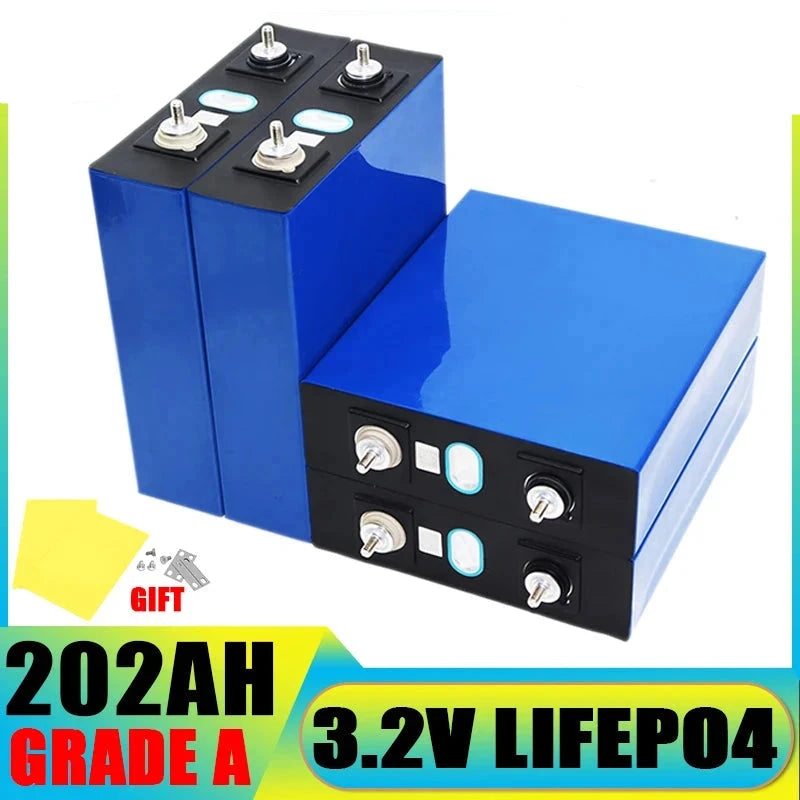

202AH GRADE A LIFEPO4 Detail Parameter


Battery Model: 3.2V 202Ah
Battery Type: LiFePO4
Housing Material: Aluminum
Nominal Capacity: 200Ah
Minimum Capacity: 200Ah
Internal Impedance: 0.1~0.3mΩ
Rated Voltage: 3.2V
Recommended Constant Current: 200A (1C)
Discharge Termination Voltage: 2.5V
Recommended Constant Current: 200A (1C)
Charging Voltage: 3.65v
Maximum Continuous Discharge Current: 200A (1C)
Peak Discharge Current: 600A (3C)
Life cycle: 4000 times (80% DOD)
Charging Temperature: 0~60 ℃
Discharge Temperature: -30~60 ℃
Weight: About 3.9KG
Size: 205*55*175mm

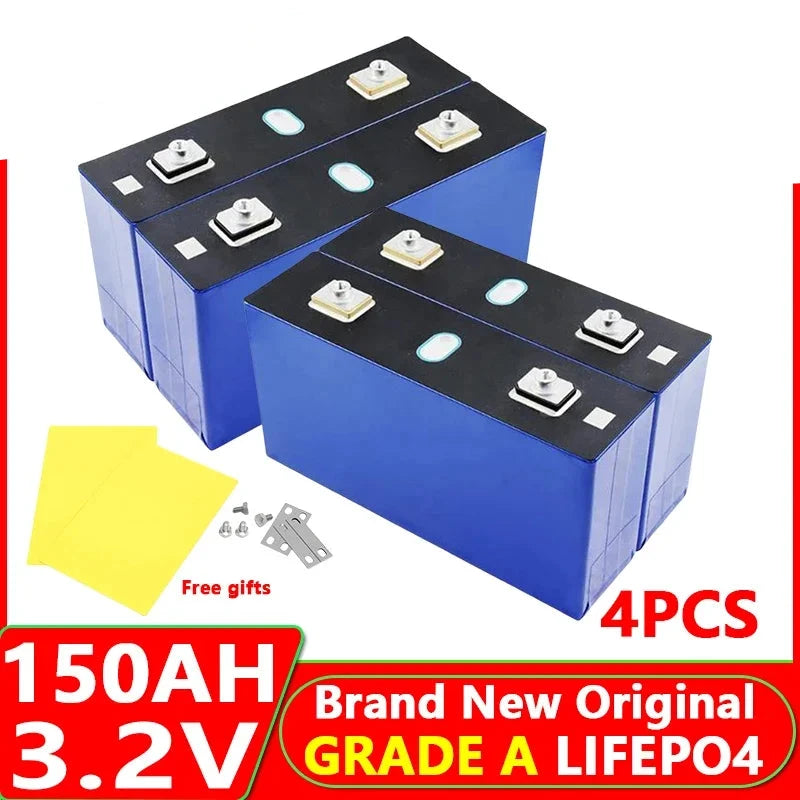

150AH GRADE A LIFEPO4 Detail Parameter

Model: 3.2V 150Ah
Cell Grade: Grade A
Rated Capacity: 150Ah
Battery Type: LiFePo4
Nominal Voltage: 3.2V
Rated Capacity: 15000mAh
Internal Impedance: < 0.35m Ω
Recommended Constant Current: 75A (0.5C)
Discharge Cut-off Voltage: 2.5V
Maximum Continuous Discharge Current: 150Ah (1C)
Maximum Charging Voltage: 3.65V
Maximum Pulse Discharge Current: 450Ah (3C)
Input Load Current: standard 20A, fast 40A
Charging voltage: 3.65V
Cycle Life: Over 4000 cycles
Single Weight: approximately 3kg
Size: 220 * 60 * 123mm
Working Temperature
Charging Temperature: 0-45 ° C
Discharge Temperature: -20~65 ° C

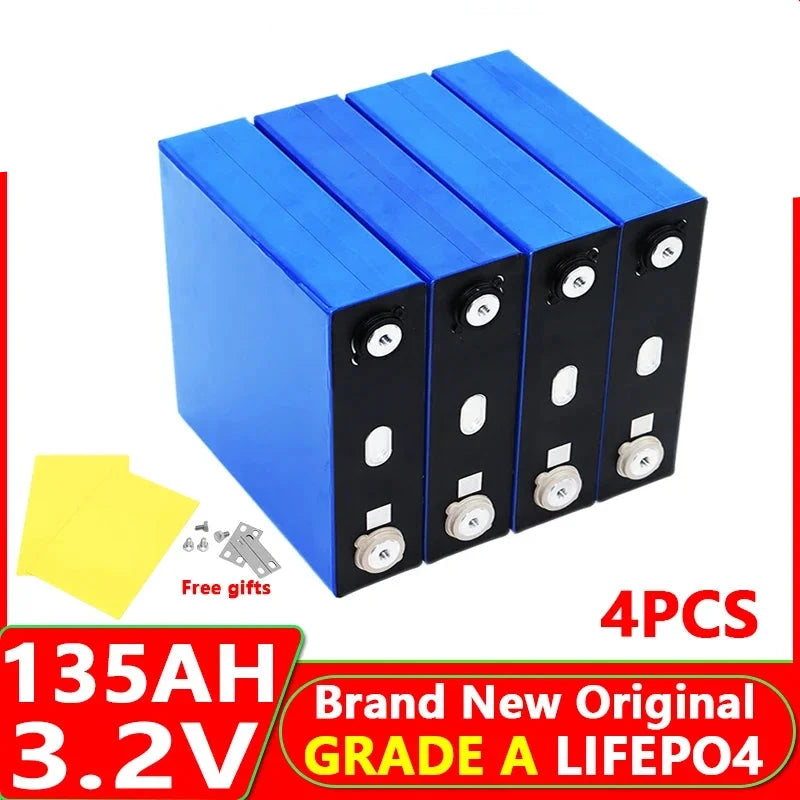

135AH GRADE A LIFEPO4 Detail Parameter

Model: 3.2V 135Ah
Rated capacity: 135Ah
Battery Type: LiFePo4
Nominal Voltage: 3.2V
Nominal Capacity: 135000mAh
Internal Impedance: ≤0.4mΩ
Recommend Constant Current: 67.5A (0.5C)
Discharge Cut-off Voltage: 2.5V
Max Continuous Discharge Current: 135Ah (1C)
Maximum Charging Voltage: 3.65V
Maximum Pulse Discharge Current: 3C


Fast Charge Method
Constant Current: 135A(1C)
Charge Voltage: 3.65V
Cycle Life: more than 7000 cycles
Single Weight: 2.85± 0.1kg
Size: 170*47*173mm


- Operating temperature

  • Charging Temperature: 0~45°C
  • Discharging Temperature: -20~65°C

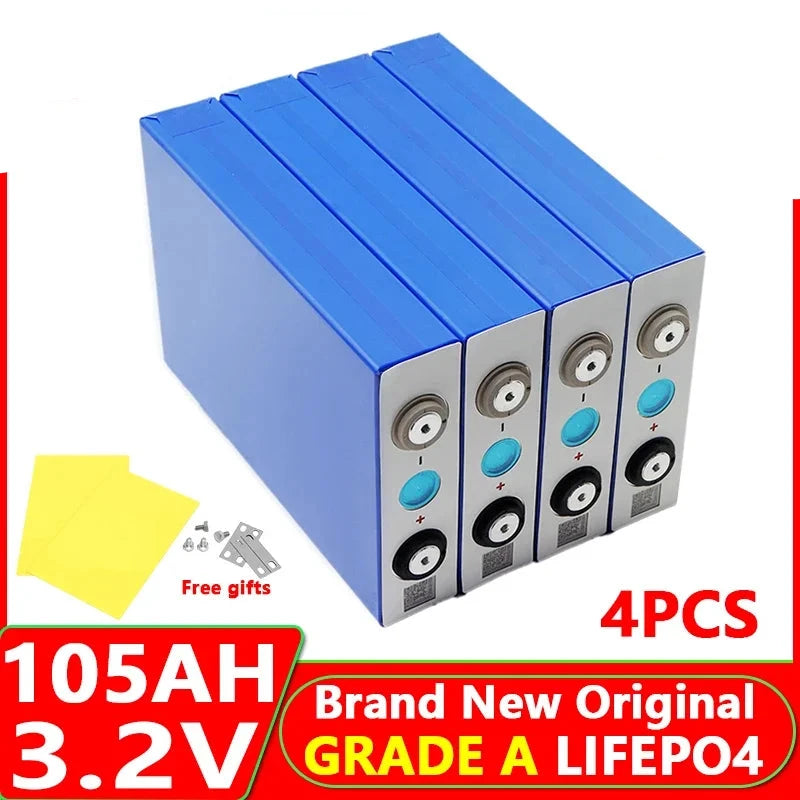

105AH GRADE A LIFEPO4 Detail Parameter

Model: 3.2v 105ah

Battery Type: Lifepo4

Nominal Capacity: 105Ah

Nominal Voltage: 3.2v

Internal Resistance: ≤0.40mΩ

Life Cycle: More than 4000 times (85%DOD)

Combination: It can be 4S 8s 12s 16s, etc.

Recommended Constant Current: 50A (0.5C)

Charging Cut-off Voltage: 3.65v/cell

Max Continuous Discharge Current: 100Ah (1C)

Max Instantaneous Discharge Current: 300Ah (3C)

Discharge Cut-off Voltage: 2.5v/cell

Input Load Current: Standard 20A, Fast 40A

Charging Temperature: 0 ~ 45 ℃

Discharge Temperature: -20~60 ℃

Battery Weight: About 2kg

Battery Size: 200 * 130 * 36mm

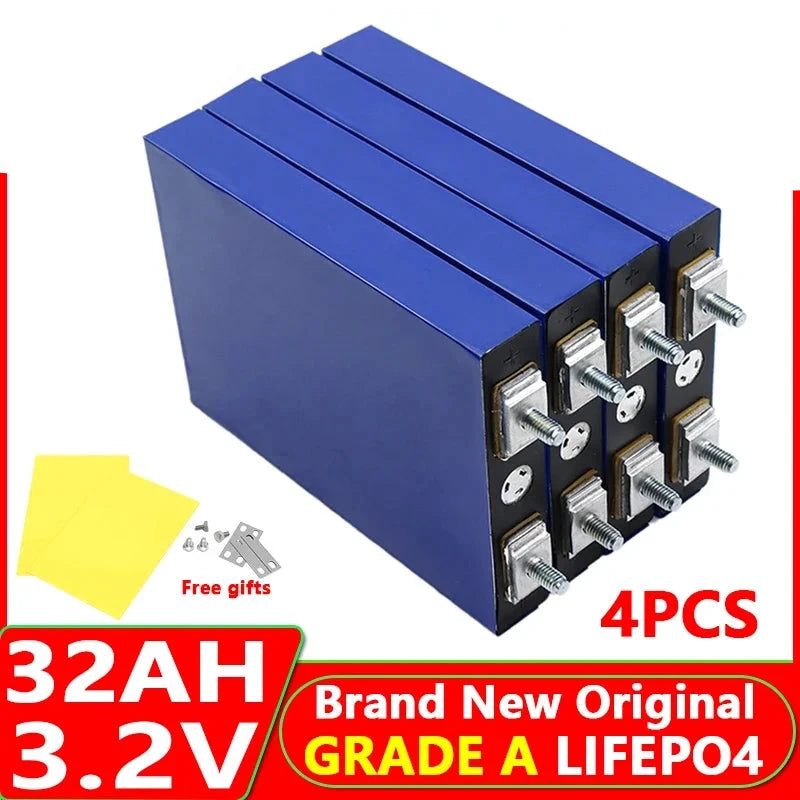

32AH GRADE A LIFEPO4 Detail Parameter

Battery Type: LiFePO4
Nominal voltage: 3.2V
Nominal Capacity: 32000mAh
Cycle Life: 2000 times (80%DOD)
Internal Resistance: ≤2mΩ
Discharge Current: 3~5C
Maximum Charging Voltage: 3.65V
Charging Current: 0.5C 16A (maximum)
Discharge Cut-off Voltage: 2.0V


Charging Method: CCCV constant current and constant voltage
Weight: 630(±10)g
Size: 145*100*20mm
