Deelife Automotive Pro

Tire Pressure Monitoring System (TPMS ) Sensor vehicle

Tire Pressure Monitoring System (TPMS ) Sensor vehicle

$62.62 CAD
$0.00 CAD $62.62 CAD
Sale Sold out
Shipping calculated at checkout.
Type
Ships From
Buyer protection

Returns
You will have 15 days from receiving the item to return it without any reason and for free if the item's conditions meet our requirements. Each buyer can benefit from the Free Return for maximum 3 times per month.

Refund
Get a refund if the item arrives late or not as described.

SPECIFICATIONS



Brand Name: Deelife

Model Number: MU9F / MU7J

Material: ABS+PC

Color: Black

Advantage: TPMS for Android Navigation

Functions

  • Function 1: TPMS Android Internal / External Sensors
  • Function 2: High / Low Tire Pressure Alarm
  • Function 3: High Temperature Alarm
  • Function 4: Wireless TPMS USB Receiver
  • Function 5: Exchange Tire Sensor Position Freely
  • Function 6: IPX7 Waterproof Tire Pressure Sensors
  • Function 7: Low Power Consumption

Sensors Battery Life: 1.5-5 years , Maxell Battery

Sensor Battery Replaceable: YES ( External Sensor )

Suitable for: Android System Car DVD Radio Multimedia Player

Languages List

  • Language list 1: English, Russian, Spanish, Portuguese, German, Italian
  • Language list 2: Japanese, Vietnamese, Simplified/Traditional Chinese



Attention :  ( Before payment )

This TPMS receiver only works on the Android system Car DVD( Android 5.0 or above )
- Before placing an order, please download the TPMS APK file and install it on your Android system Car DVD, to check does it working properly.
- Can not support the " TEYES " android car DVD player.
- Our TPMS device does not support WIFI and Bluetooth connection. It only can be connected to your car's android system via the USB port.
- Our TPMS device needs to occupy one separate USB port to transfer data, can not work with other USB devices at the same time.



USB Android TPMS

Tire Pressure Monitoring System
Powered By deelife


Main Features

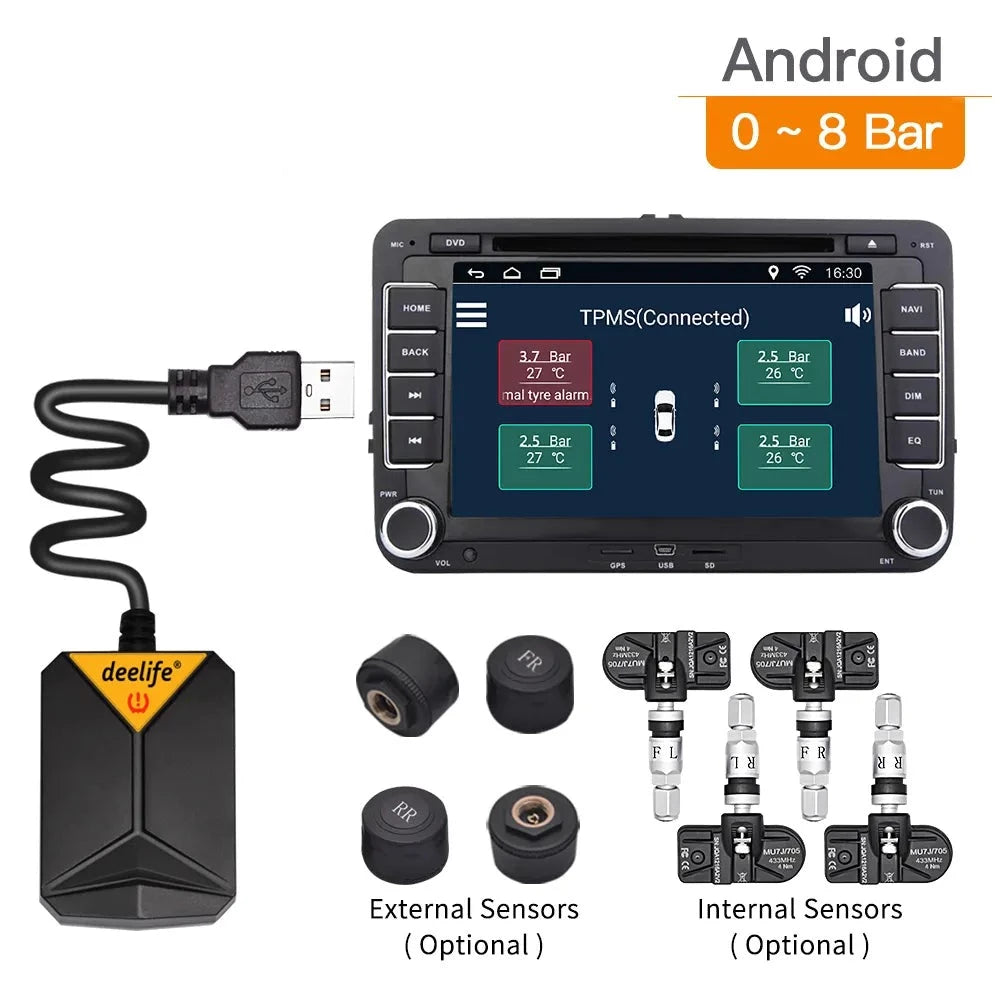

TPMS for Android Car DVD
- The TPMS receiver can be connected to Android car DVD via USB port
- Sound Alarm via car speakers and screen alarm when abnormality occurs

Exchange The Tire Position Freely
- Easy to set in our TPMS APK
- Support two sets of tires ( Summer tire / Winter tire )

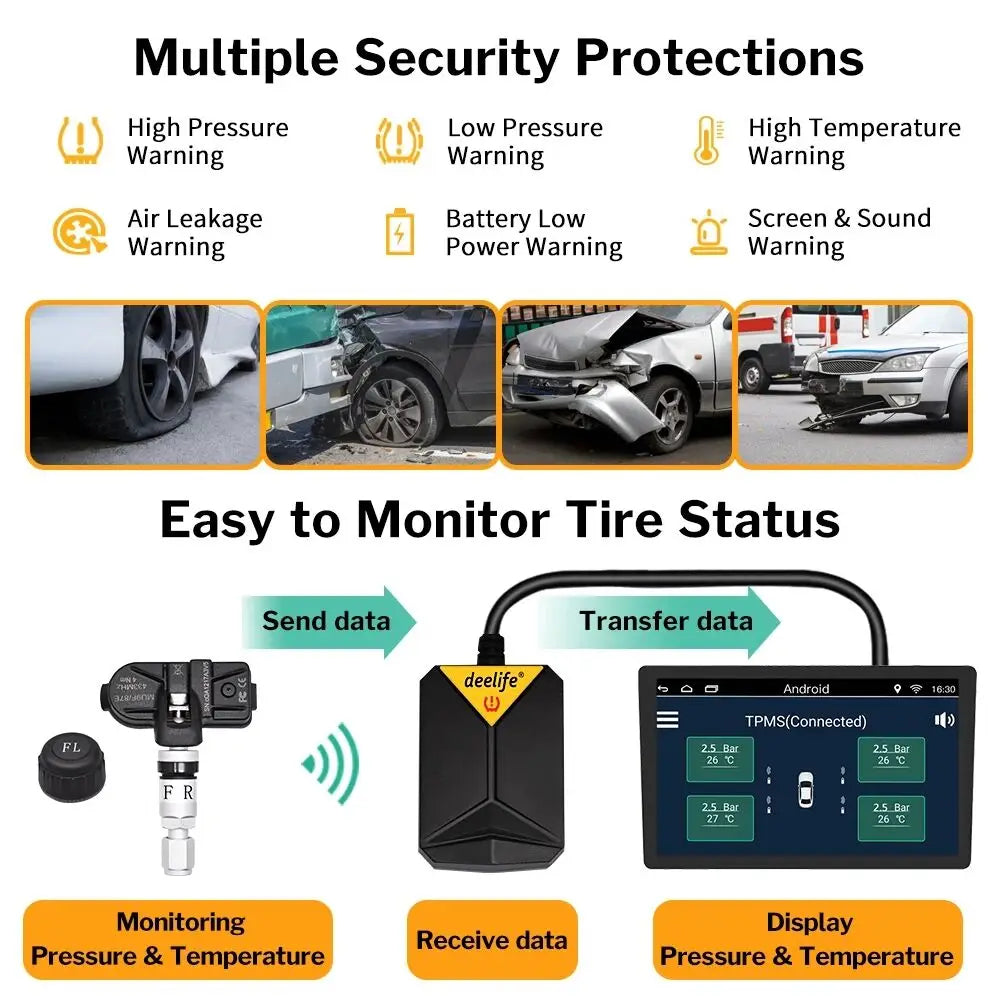

6 Protections for Safe Driving
① High Pressure Alarm
② Low Pressure Alarm
③ Air Leakage Alarm
④ High Temperature Alarm
⑤ Battery Low Power Alarm
⑥ Sensors Disconnection Alarm

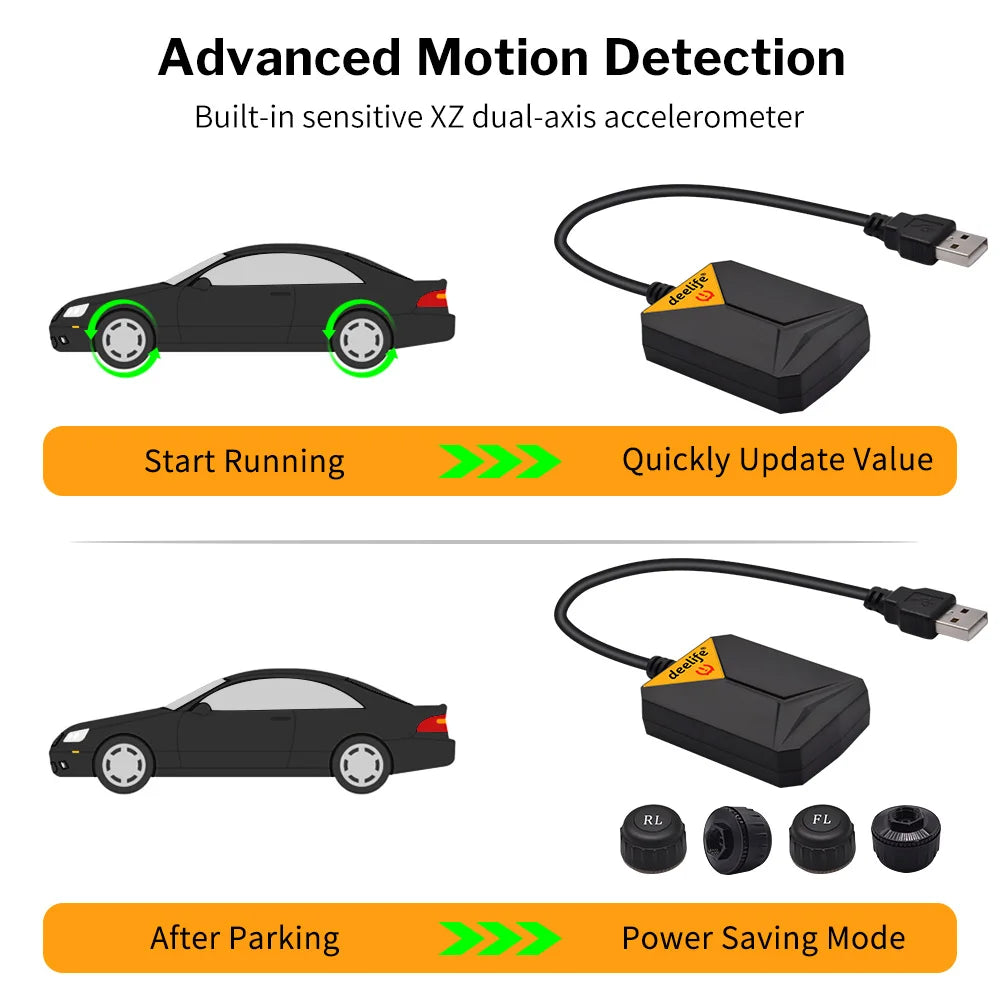

Advanced Motion Detection Function ( MU9F only )
- Sensor wakes up automatically when tire starts running
- Quickly update tire pressure and temperature data to monitor
- Automatic sleep to save energy after parking

NXP ( Freescale ) TPMS chipset ~ FXTH 87E ( MU9F only)
① A field-proven dual-axis accelerometer architecture
② The XZ axis offers motion detection
③ Low-power wake-up timer, free-running counter, and periodic reset is driven by LFO

11 Languages Support
- English, Russian, Ukrainian, Spanish, German, Italian, Portuguese, Japanese, Vietnamese, Simplified/Traditional Chinese.

Attention :  ( Before payment )

This TPMS receiver only works on the Android system Car DVD( Android 5.0 or above )
- Before placing an order, please download the TPMS APK file and install it on your Android system Car DVD, to check does it working properly.
- Can not support the " TEYES " android car DVD player.
- Our TPMS device does not support WIFI and Bluetooth connection. It only can be connected to your car's android system via the USB port.
- Our TPMS device needs to occupy one separate USB port to transfer data, can not work with other USB devices at the same time.


Download Address (in Yandex Disk) :

https://disk.yandex.com/d/d4zutVb0bIDCtA

Download Address (in Google playstore) :

 TPMS App scan

TPMS Sensors Specifications

Product Description

•Item Type: Smart Tire Pressure Monitoring System
•Brand: deelife
•Model: MU7J/MU9F
•Voltage Input: DC 5V
•Pressure Unit: Psi/Bar/Kpa
•Pressure Accuracy: ± 0.1 bar/± 1.5 psi
•Temperature Accuracy: ± 3℃

Benefit of TPMS
  1. TPMS ensures proper tire pressure, which is necessary to ensure vehicle safety, handling, comfortable driving, and tire life.
  2. Accurate tire pressure can reduce fuel consumption / CO2 emissions
  3. Extend tire life by up to 30%

 USB Android TPMS Background Image

 TPMS features display background

 High accuracy pressure measurement

 6 alarm features



Popup window feature

TPMS sensor features

lAdvance motion detection diagram

Waterproof sensors

Exchange tire position diagram





Android Navigation - TPMS



How to use

Product details



Instructions - how to install in the right direction



Angle adjustment

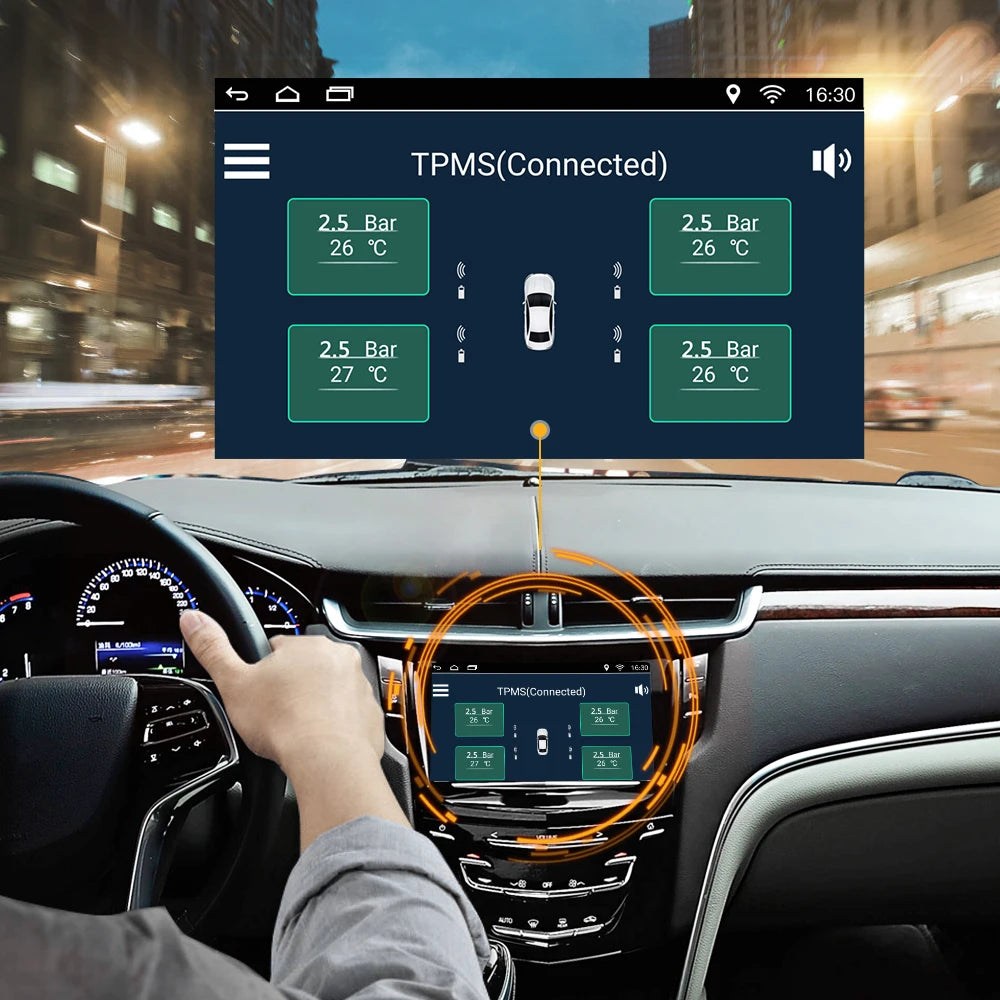

User interface





Setting interface

Pairing sensors

Sensor installation location



Installation how to - steps



External installation

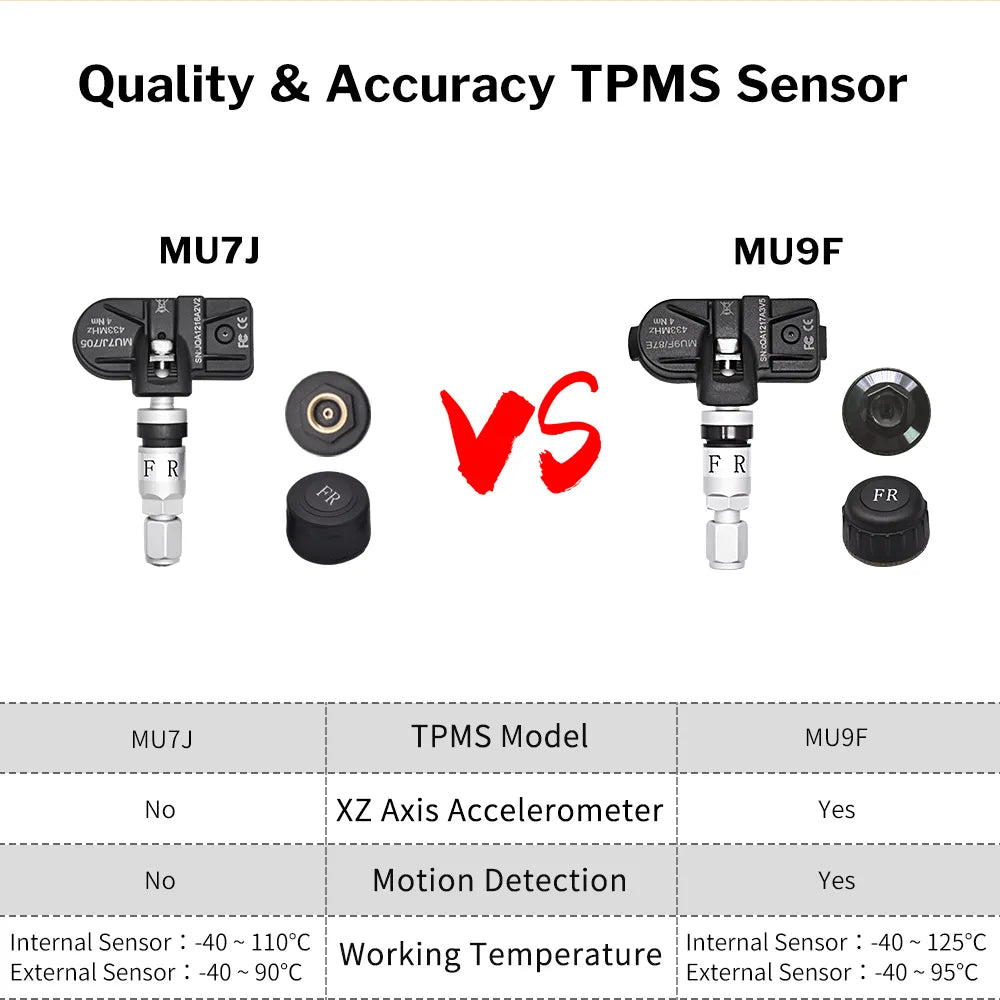

Comparison internal & external sensors



APK installation guide



Steps for replacing external battery

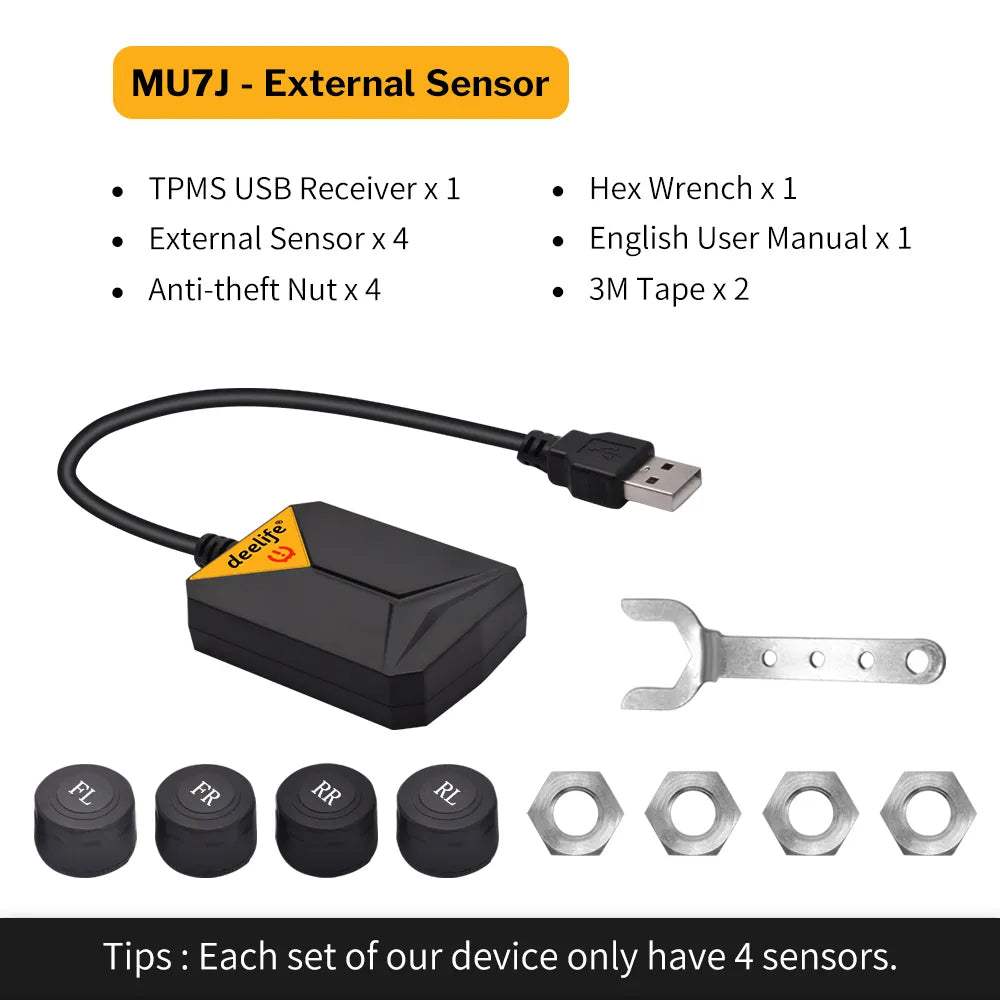

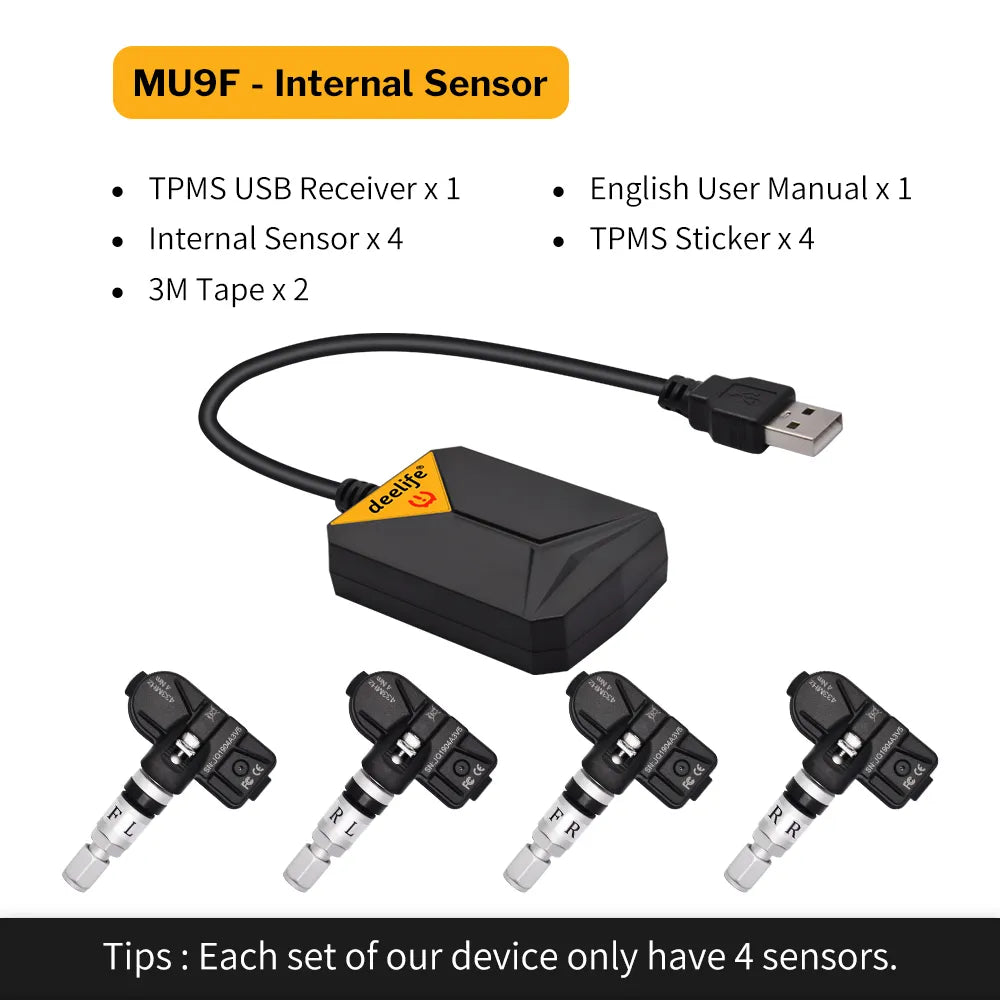

Products & Accessories

Attention

- Each set of MU7J or MU9F products only has 4 sensors.


- For the anti-theft nuts, please pay attention for the 2 steps,

1. Tighten the sensor first on the valve, if not tighten, the anti-theft nuts can not protect your sensors.
2. Tighten the nuts by the wrench, then check it by your hands for the lock performance.

View full details

Product Q&A

My car multimedia system is Android Auto, can I use this device ?

Not recommended.


Because the Android Auto system cannot install any Apps directly.
The App needs to install on your android phone and connect our USB TPMS Receiver to your android phone via the USB port.
Then display the android phone screen on the Android Auto system.
It's not convenient for use.

My car multimedia system is the CarPlay system, can I use this device ?

Can not. It's can not connect to any Android device and install the android apps

Why the sensor reading is not accurate ?

Sensor pressure value accuracy is ±0.1Bar/±1.5Psi.
1. Please re-pair the sensors
2. If the readings of all 4 sensors are very different from your pressure gauge, please double-check the pressure gauge carefully. Because our sensors are all calibrated before shipment.

Why the pressure data doesn't change ?

It is recommended that you re-pair the sensors.
If you have installed other APKs in the car android system before, you need to uninstall and re-download our APK.
Otherwise, it will cause conflicts when reading data.

Why does the sensor pairing fail ?

The sensors may be paired failure by the wrong steps.
It is recommended that you pair the sensors again.
The sensors need to be paired individually and in sequence.
Pairing multiple sensors at the same time may cause the sensors to be paired in the wrong position

Are there any special notice when installing the TPMS USB receiver?

The connection between the sensors and the TPMS USB Receiver is wireless, and the transmission distance is 5-6 meters.
Please keep the TPMS USB Receiver away from electrical products or metal items to avoid electronic interference or signal blocking.
For example, the car is equipped with a driving recorder, DVD, and other equipment, recommended to keep the distance above 30 cm

Can I use the original TPMS.APP which is already installed by the android car radio seller ?

Not recommended.
Deelife TPMS.app is the newest version, which supports 11 languages.
Suggest you uninstall the original TPMS.app of the car radio. If can not uninstall it, please disable it in the app management. Otherwise, it will make Deelife TPMS app be conflict and not working properly
