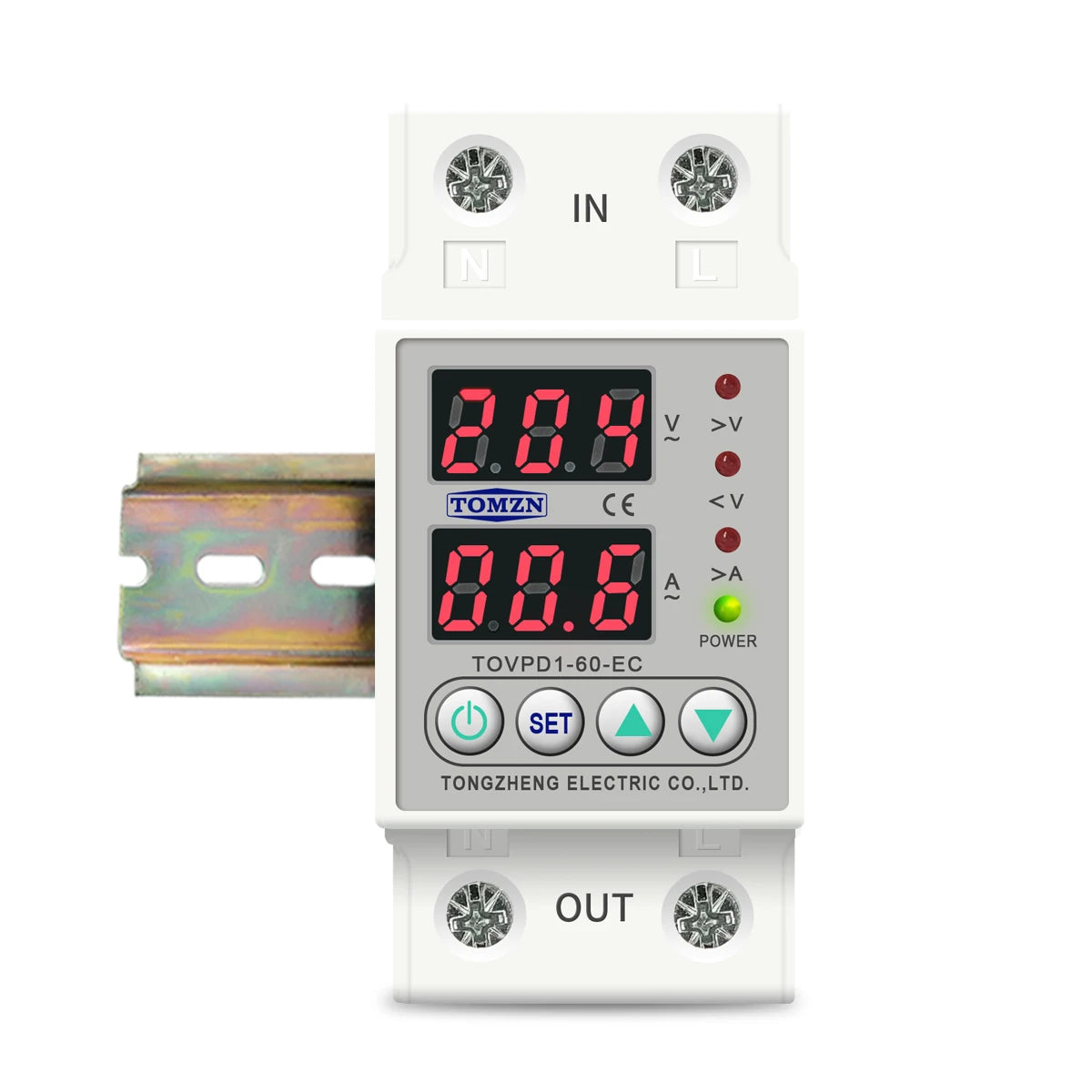

• Din Rail Dual Display - Protection Relay 40A 63A 80A 220V 230V
  • Din Rail Dual Display - Protection Relay - wallpaper

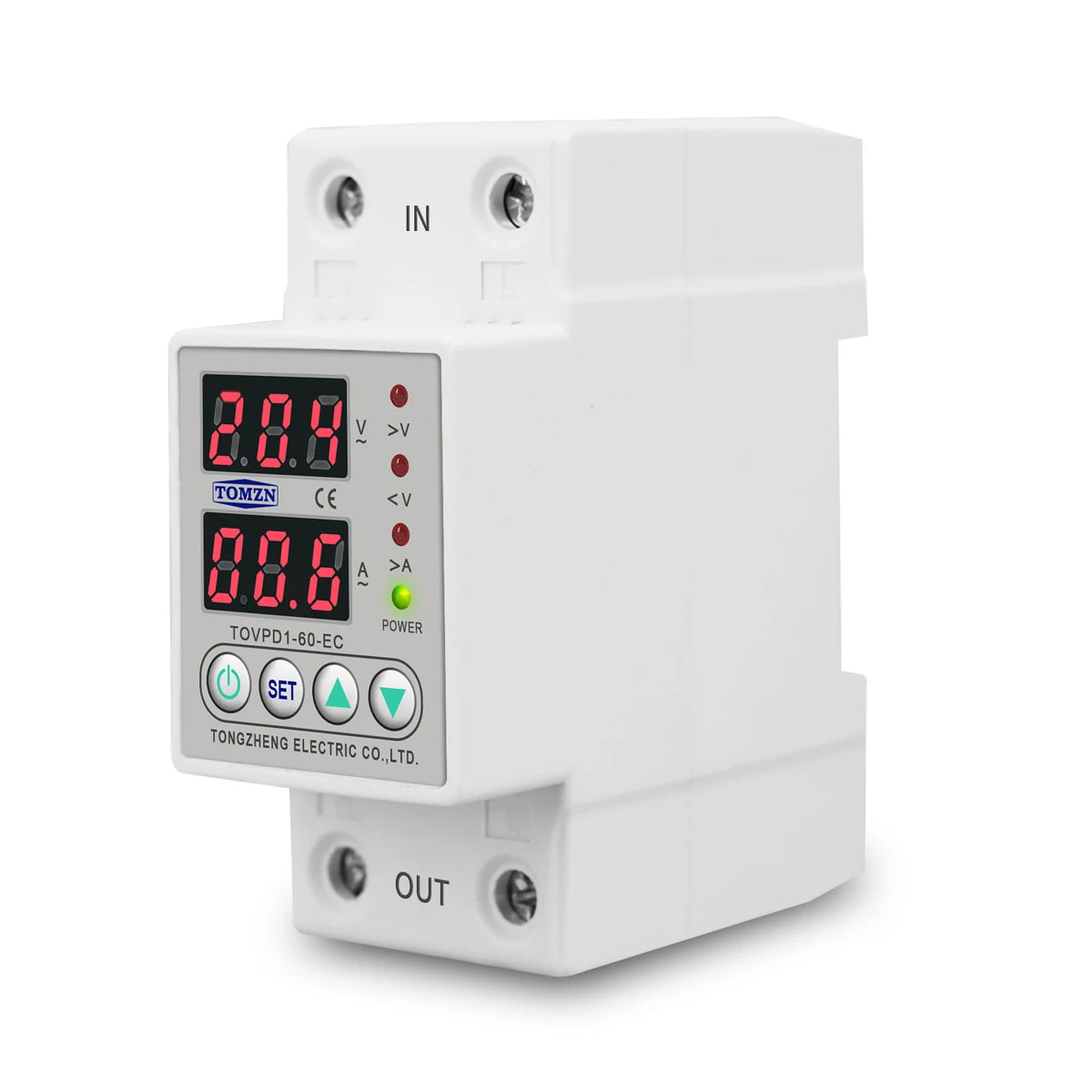

  • Din Rail Dual Display - Protection Relay - side view

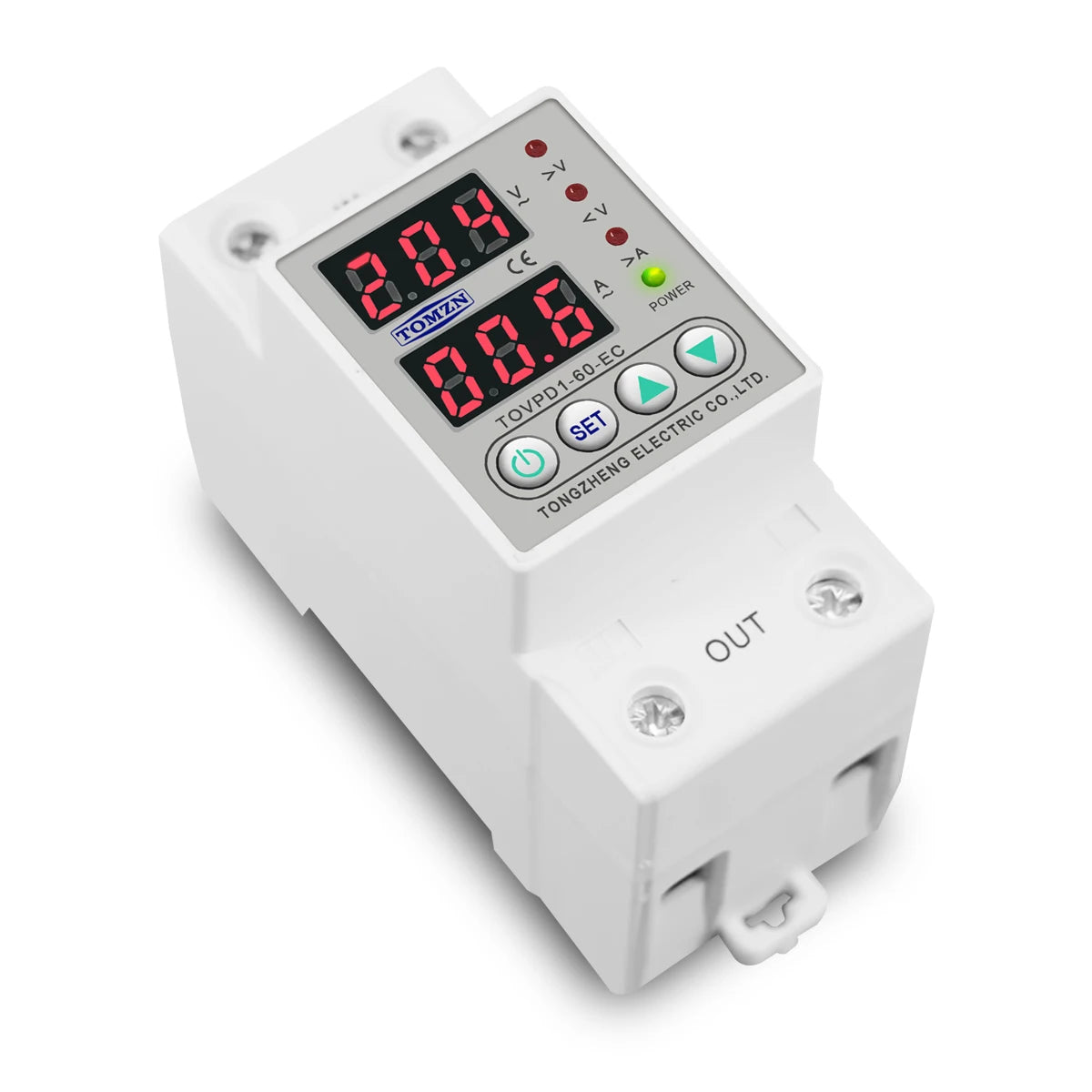

  • Din Rail Dual Display - Protection Relay - Top Side View
  • Din Rail Dual Display - Protection Relay Front Side View

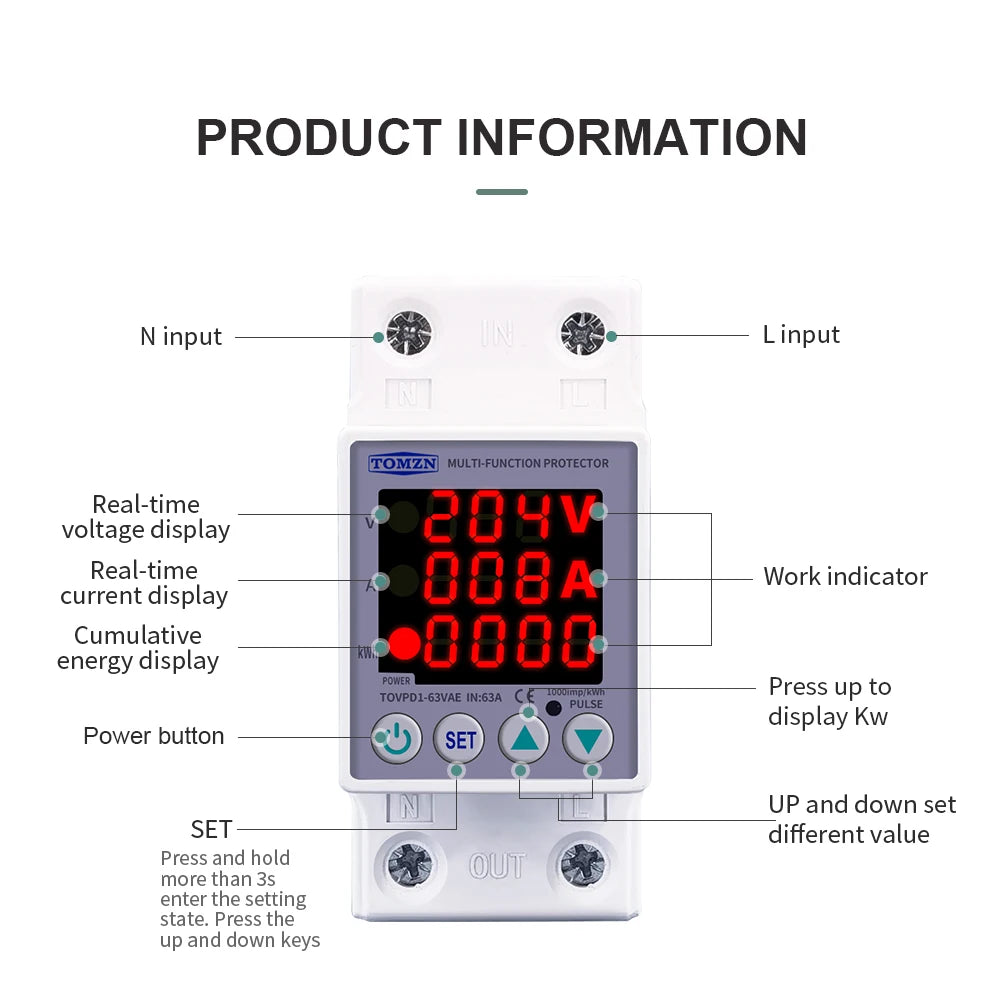

  • Din Rail Dual Display - Protection Relay description display
1 6

TOMZN

Protection Relay 40-80A 220/230V TOMZN with Din Rail Dual Display

Protection Relay 40-80A 220/230V TOMZN with Din Rail Dual Display

$32.94 CAD
$0.00 CAD $32.94 CAD
Sale Sold out
Shipping calculated at checkout.
Rated Current
Poles Number Type
Buyer Protection

Delivery guarantee
C$1.00 coupon code for late delivery - Refund if items arrive damaged - if package lost - if not as described - if not delivered after 35 days
  • CE

SPECIFICATIONS



Under voltage protection: 140V-210V(adjustable) (default: 160V)

Over voltage protection: 230V-300V (adjustable) (default: 280V)

Over current protection: 1A-80A (adjustable) (default: 20A)

Reconnect time: 3s-300s (default: 5A)

Brand Name: TOMZN

Model Number: TOVPD1-60-EC

Type: Voltage protector

Smart Device: No

Origin: China

Customisable: Yes

Choice: Yes

Semi_Choice: Yes

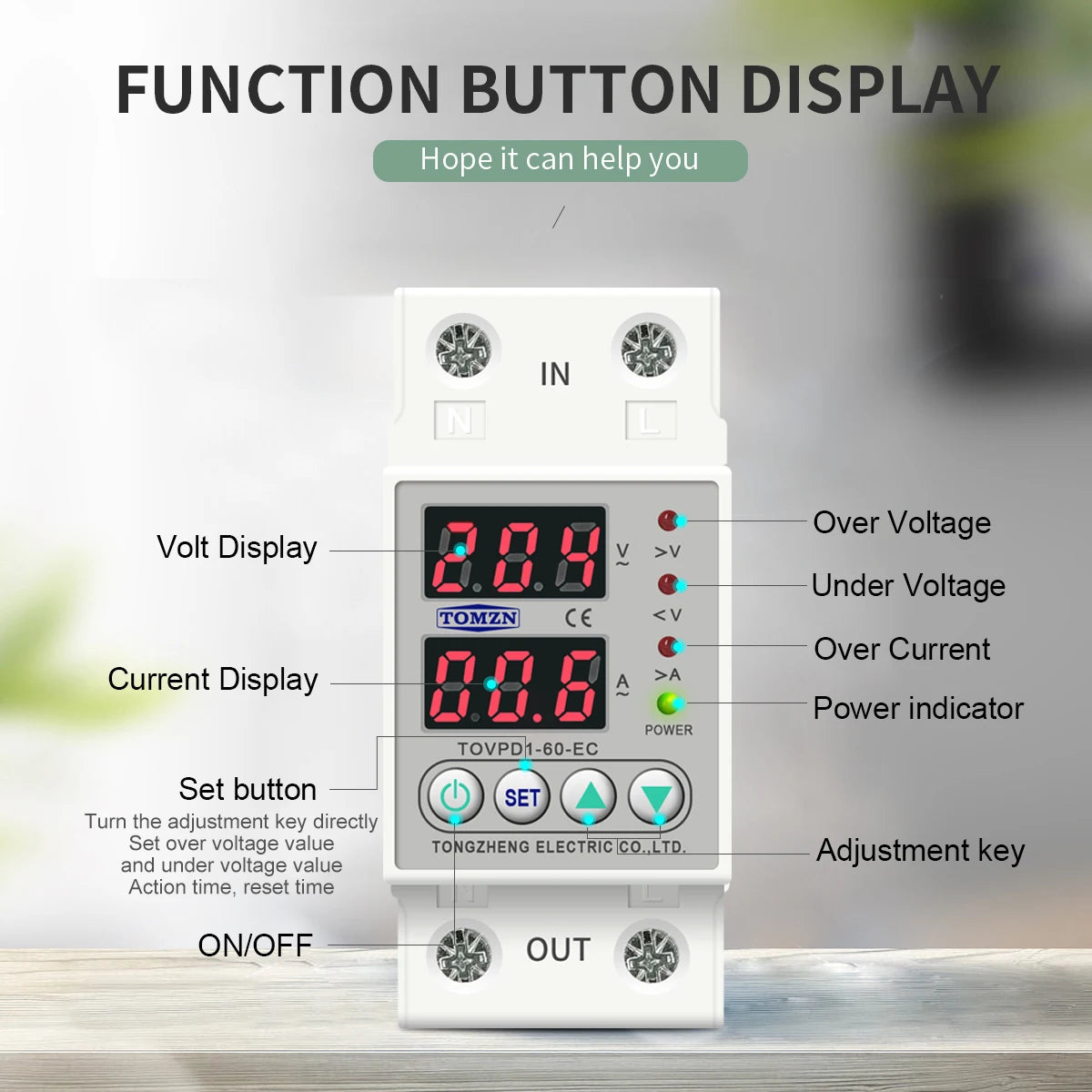

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S
Product Parameters:
1.Model number:TOVPD1-60-EC
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A  Adjustable(default:40A)
                                    1~63A  Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
  Over-voltage recovery voltage range:225V--295V(default:250V)
   Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
  Under-voltage recovery voltage range:145V--215V (default:190V)
   Under-voltage protection action time:0.1s~30s(default:0.5s)
   Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A)
   Over-current action range:0.1~30 second (default:0.5s)
Over-current recovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times
11.Installation:35mm DIN rail

110V Version
2.Power supply:110VAC 50/60Hz
3.Max.Loading power:1~63A Adjustable(default:63A)
4.Over-voltage protection value range:80V~300~OFF(default:145V)
Over-voltage recovery voltage range:75V--295V(default:140V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:80V--300V --OFF(default:90V)
Under-voltage recovery voltage range:85V--305V (default:95V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-63A (default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current recovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
10.Installation:35mm DIN rail



A13 Voltage adjustable +-%9.5

A14 Current limit times: 1-20 times (default off)

Restore factory settings: Press the down button for more than 12s
Fault inquiry: Press the UP button for more than 12S


View full details
Variant Variant total Quantity Price Variant total
L N 230V 100A / V A type
L N 230V 100A / V A type
$0.00
$32.94/ea
 $0.00
$0.00
$32.94/ea
 $0.00

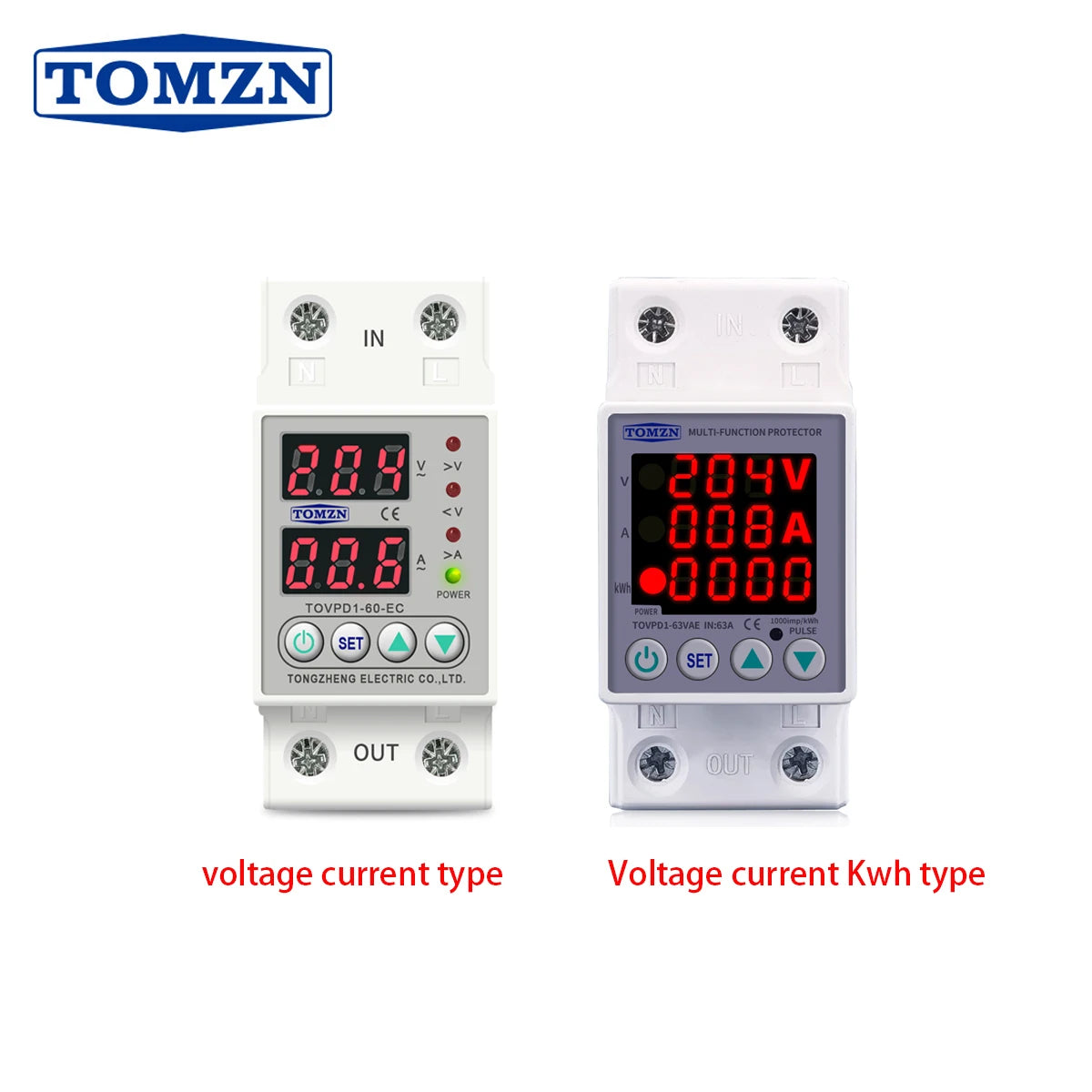

L N 230V 100A / V A Kwh type
