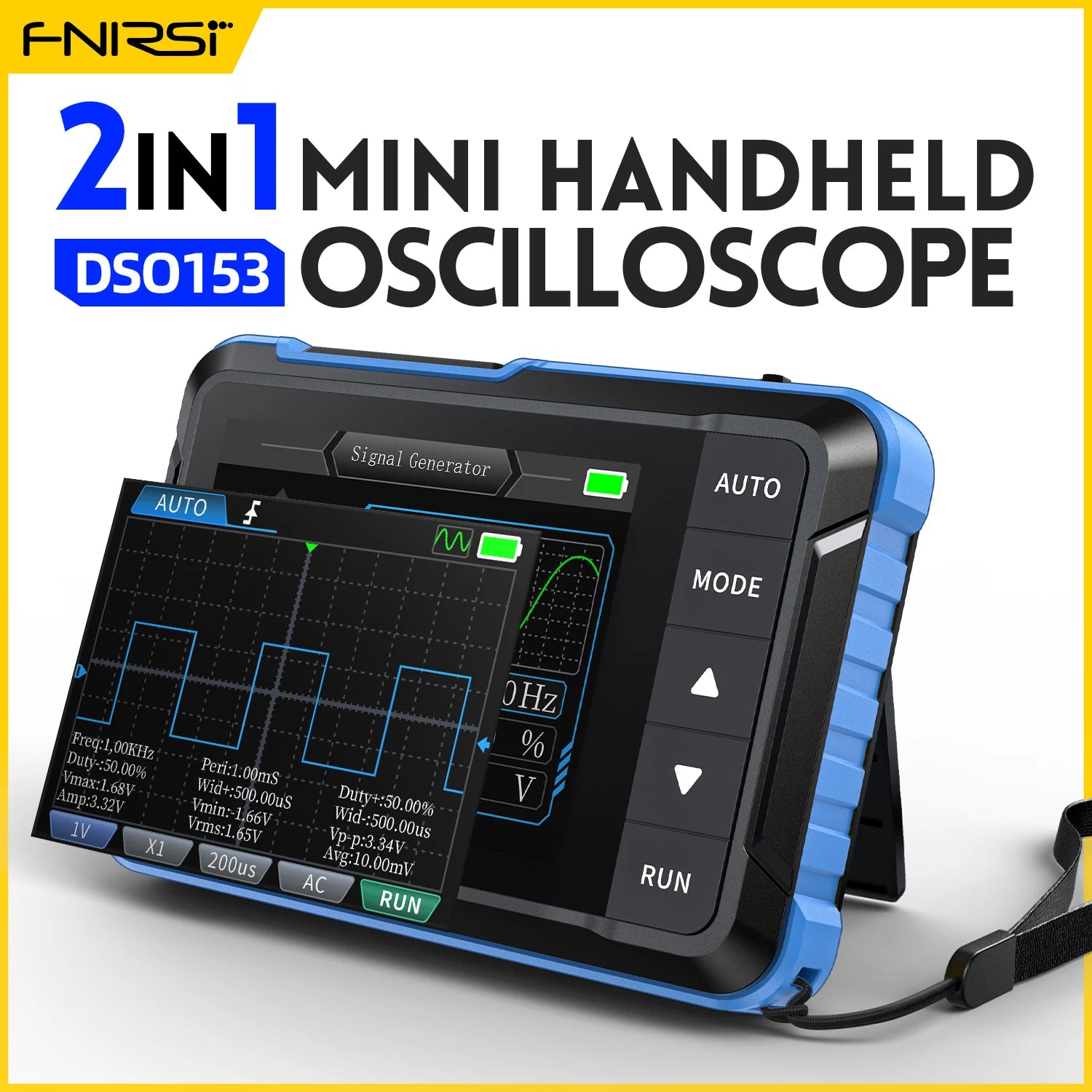

FNIRSI DSO153 Digital Portable Oscilloscope Signal Generator 2in1 Electronics Repair Tool

FNIRSI DSO153 Digital Portable Oscilloscope Signal Generator 2in1 Electronics Repair Tool

$66.24 CAD
$0.00 CAD $66.24 CAD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

C$10.00 coupon code if delayed

Refund if package lost

Refund if items damaged

Refund if no delivery in 35 days
  • CE

SPECIFICATIONS



Brand Name: FNIRSI

FNIRSI Model: DSO153

High-concerned Chemical: None

DIY Supplies: ELECTRICAL

Display resolution: 320*240 Pixels

Digital Channels: 1

Model Number: DSO153

IS Battery Demountable: Yes

Band Width: 1MHz

Vertical sensitivity: 10mV/Div-20V/Div

Time Base Range: 500ns/Div-20s/Div

Voltage Range: X1: 40V (Vpp:80V)

Voltage Range: X10: 400V (Vpp :800V)

Trigger Method: Auto/Normal/Single

Coupling Method: AC/DC

Frequency: 0-10KHz

Duty cycle: 0-100%

Amplitude: 0.1-3.3V

Waveforms: 14 kinds

Display: 2.8 inches/PPI:320*240

USB Charging: 5V/1A

Lithium Battery Capacity: 1000mAh

Size: 99x68.3x19.5mm

Weight: 100g

DSO-153 is a highly practical and cost-effective handheld oscilloscope launched by our company, targeting the maintenance industry and development education industry.

This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.

In addition, it also comes with multiple functions signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.* Mini Oscilloscope *

Sampling Rate：5MSa/s

Bandwidth：1MHz

Vertical Sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way

Time Base Range：500ns/Div-20s/Div（Progress according to the 1-2-5 way

Voltage Range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

Trigger Method：Auto / Normal / Single

Coupling Method：AC/DC

* Signal Generator *

Frequency：0-10KHz

Duty cycle: 0-100% (rectangular and sawtooth
waves)

Amplitude: 0.1-3.3V

Waveforms: Sine wave, rectangular wave, sawtooth
wave, half wave, full wave, step wave,
anti step wave, noise wave, exponential
rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.

* Other Parameters *

Display：2.8 inches/PPI:320*240

USB Charging：5V/1A

Lithium Battery Capacity：1000mAh

Size：99x68.3x19.5mm

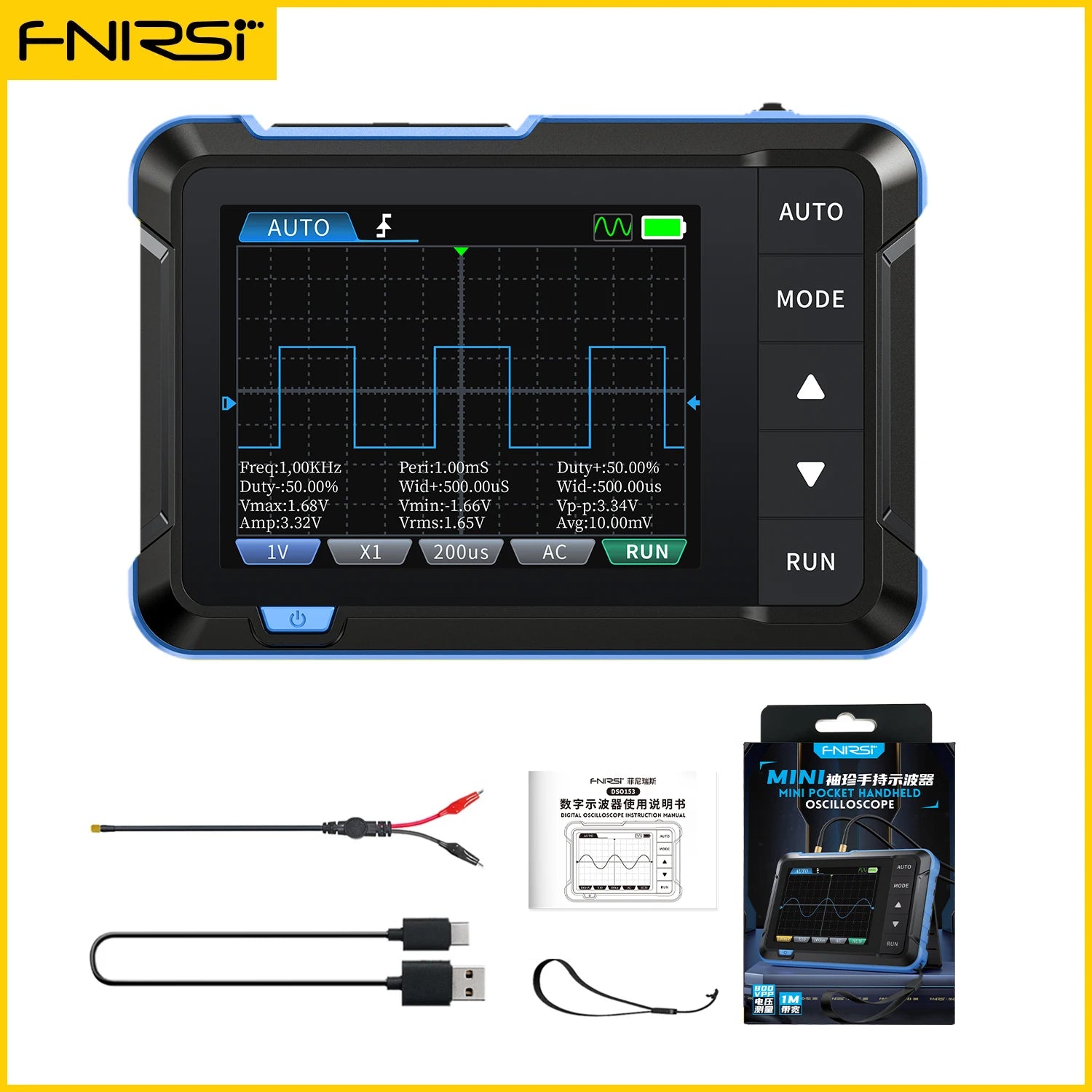

Weight：100gNO.1(Standard)

Host device *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User manual *1

Packaging color box *1

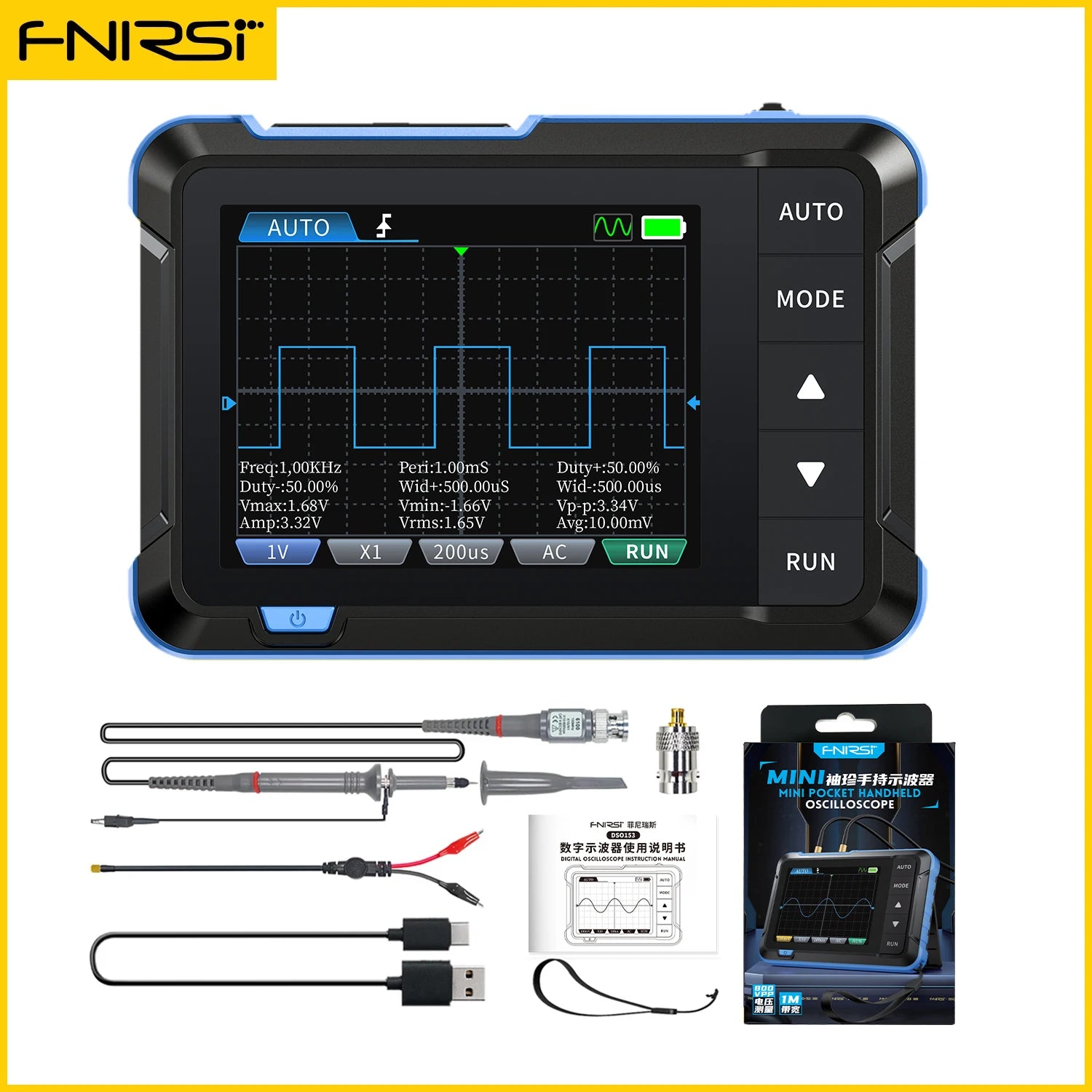

NO.2(Option)

Host device *1

P6100 high vltage probe *1

Adapter *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User manual *1

Packaging color box *1
