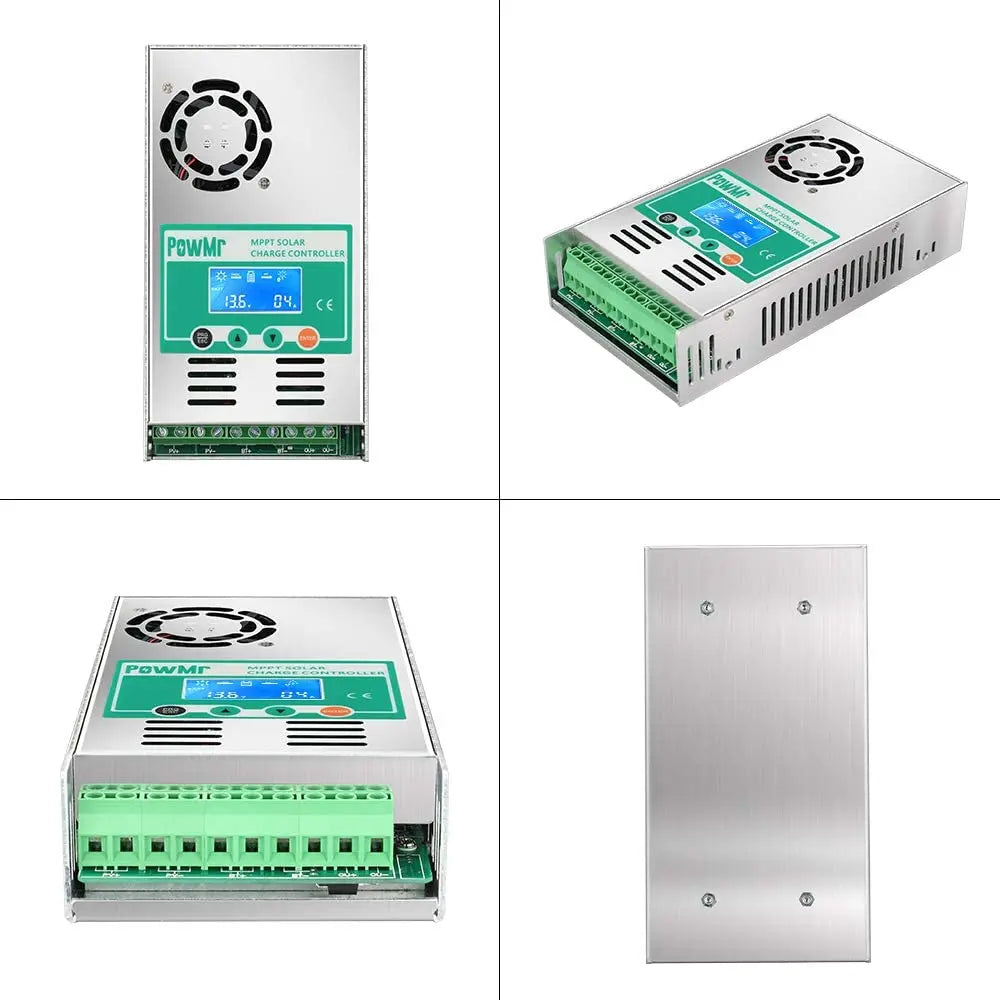

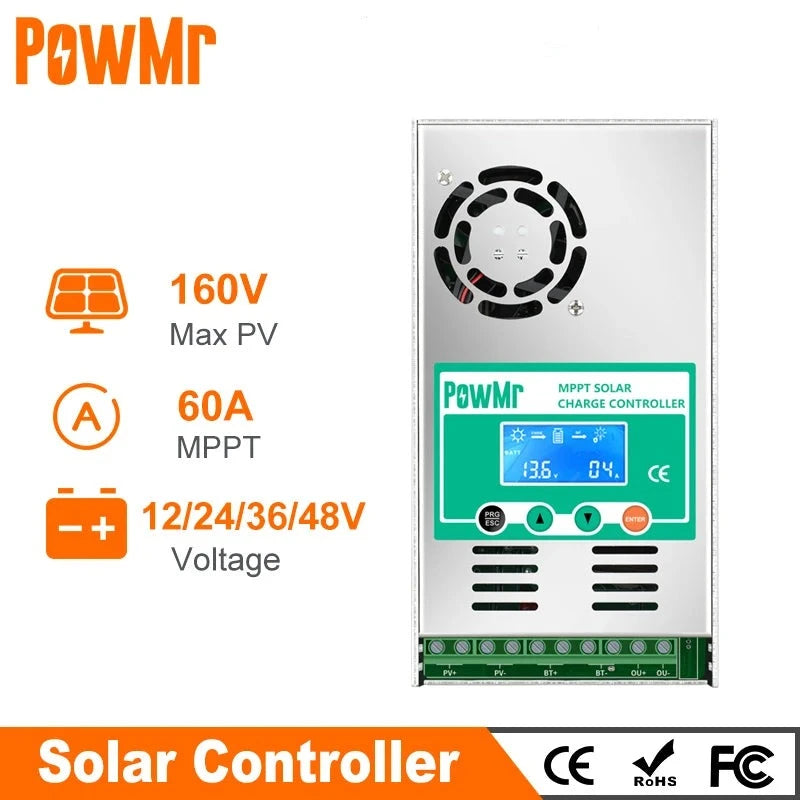

MPPT 60A Solar Panel Charge Controller Regulator
MPPT 60A Solar Panel Charge Controller Regulator
Couldn't load pickup availability
CE
SPECIFICATIONS
Brand Name: PowMr
Model: MPPT Solar Charge Controller Solar Regulator
Maximum Current: MPPT 60A
Customisable: Yes
Applications:
- Charger Controller
- Solar System Controller
- Voltage Controller
- Lighting Controller
Charging mode: MPPT Maximum power point tracking automatically
Battery type(default is Sealed): Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other)
Rated output current: MPPT 60A
The maximum PV input power: 12V system (720W) 24V system (1440W) 36V system (2100W) 48V system (28
The maximum PV input voltage (Voc): DC190V
Enclosure: IP21
Version: PowMr 2024
PowMr MPPT 60A 50A 40A 30A Solar Charge and Discharge Controller 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery
Feature:
* 100% MPPT controller！
* Intelligent Maximum Power Point Tracking technology
* Built-in DSP controller with high performance
* Automatic battery voltage detection 12V/24V/36V/48V

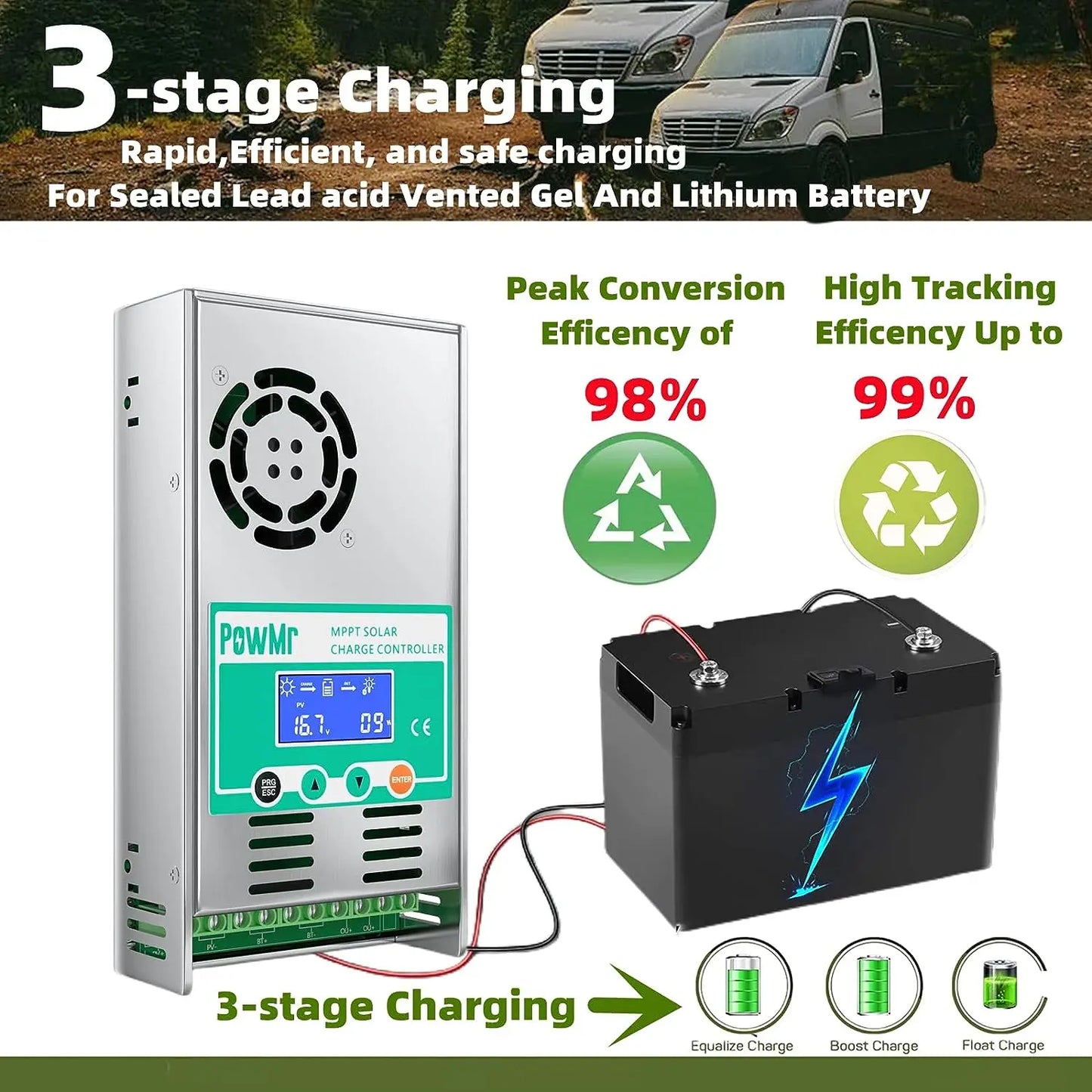

* Three-stage charging optimizes battery performance

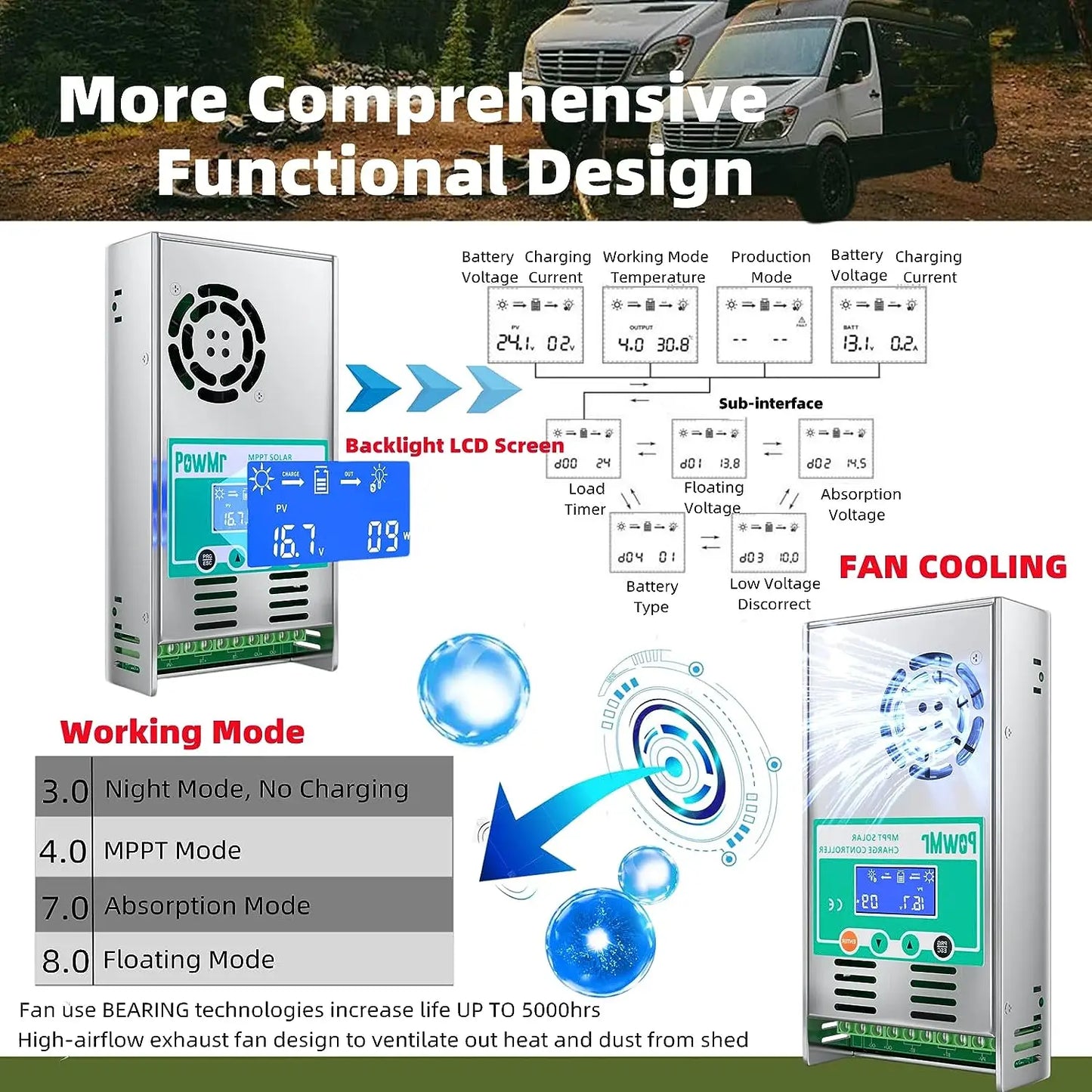

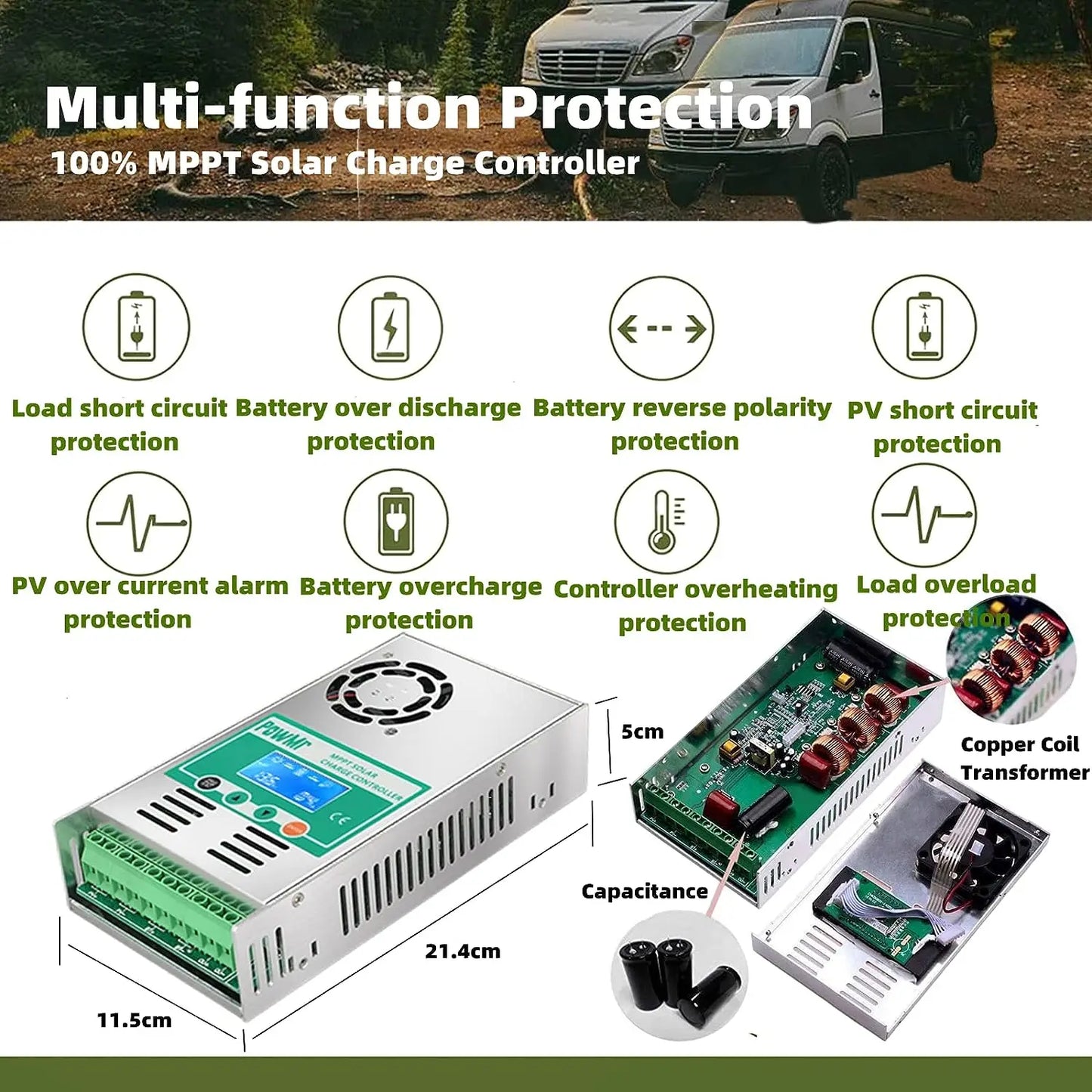

* Multi-function LCD displays, Reverse polarity protection of solar panel
* Overcharge protection, Can be mounted easily
* Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
Package Including：
1PC MPPT Solar Controllers
1PC User Manual (English)
▲Notes: The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.
Specifications:
|
Model Name |
MPPT-30A |
MPPT-40A |
MPPT-50A |
MPPT-60A |
|
Charging mode |
MPPT Maximum power point tracking automatically |
|||
|
Charging |
3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge |
|||
|
System type |
DC12V/24V/36V/48V Recognition automatically |
|||
|
System voltage automatic recognition |
12V system (DC9V-DC15V) |
|||
|
24V system (DC18V-DC29V) |
||||
|
36V system (DC30V-DC39V) |
||||
|
48V system (DC40V~DC60V) |
||||
|
Soft start time |
≤1S |
|||
|
Dynamic response and recovery time |
≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency) |
|||
|
PV utilization |
≥99% |
|||
|
Input specification |
||||
|
Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. ) |
12V system (DC20V~DC80V) |
|||
|
24V system (DC37V~DC105V) |
||||
|
36V system (DC50V~DC160V) |
||||
|
48V system (DC72V~DC160V) |
||||
|
The maximum PV input voltage (Voc) |
DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.) |
|||
|
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.) |
12V system (360W) |
12V system (480W) |
12V system (600W) |
12V system (720W) |
|
24V system (720W) |
24V system (960W) |
24V system (1200W) |
24V system (1440W) |
|
|
36V system (1080W) |
36V system (1400W) |
36V system (1800W) |
36V system (2100W) |
|
|
48V system (1440W) |
48V system (1700W) |
48V system (2200W) |
48V system (2800W) |
|
|
Output specification |
||||
|
Selectable battery type(default is Sealed) |
Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) |
|||
|
Absorption Charging Voltage |
Refer to Batteries charging reference |
|||
|
Floating Charging Voltage |
Refer to Batteries charging reference |
|||
|
Overcharging protection voltage |
12V system (15V) |
|||
|
24V system (30V) |
||||
|
36V system (45V) |
||||
|
48V system (60V) |
||||
|
Rated output current |
30A |
40A |
50A |
60A |
|
Temperature Coefficient |
±0.02%/ centi-degree |
|||
|
Automatic temperature compensation |
14.2V-(Max temperature-25 centi-degree)*0.3 |
|||
|
Output voltage ripple-peak |
100mV |
|||
|
Output voltage accurac |
≤±1% |
|||
|
Input Anti-intrusion protection |
yes |
|||
|
Temperature Protection |
75°C |
|||
|
Temperature increased protection |
Output power will reduce when it’s more 70 °C Output power will be normal when it’s less 55 °C |
|||
|
Fan-on temperature |
>40 °C |
|||
|
Fan-off temperature |
<35 °C |
|||
|
Acoustic noise |
≤40dB |
|||
|
Cooling way |
Forced air cooling |
|||
|
Components |
Imported materials, Accord to EU standards, Industrial grade range. |
|||
|
Environmental requirements |
Meet 2002/95/EC; No cadmium, hydrides and fluorides |
|||
|
Security Level |
Accord to CE, PSE, FCC, EMC, EN60950 |
|||
|
Electromagnetic Compatibility |
Accord to EN61000, EN55022, EN55024 |
|||
|
Enclosure |
IP21 |
|||
|
Net weight(Kg) |
1.2 |
|||
|
Gross weight(Kg) |
1.3 |
|||
