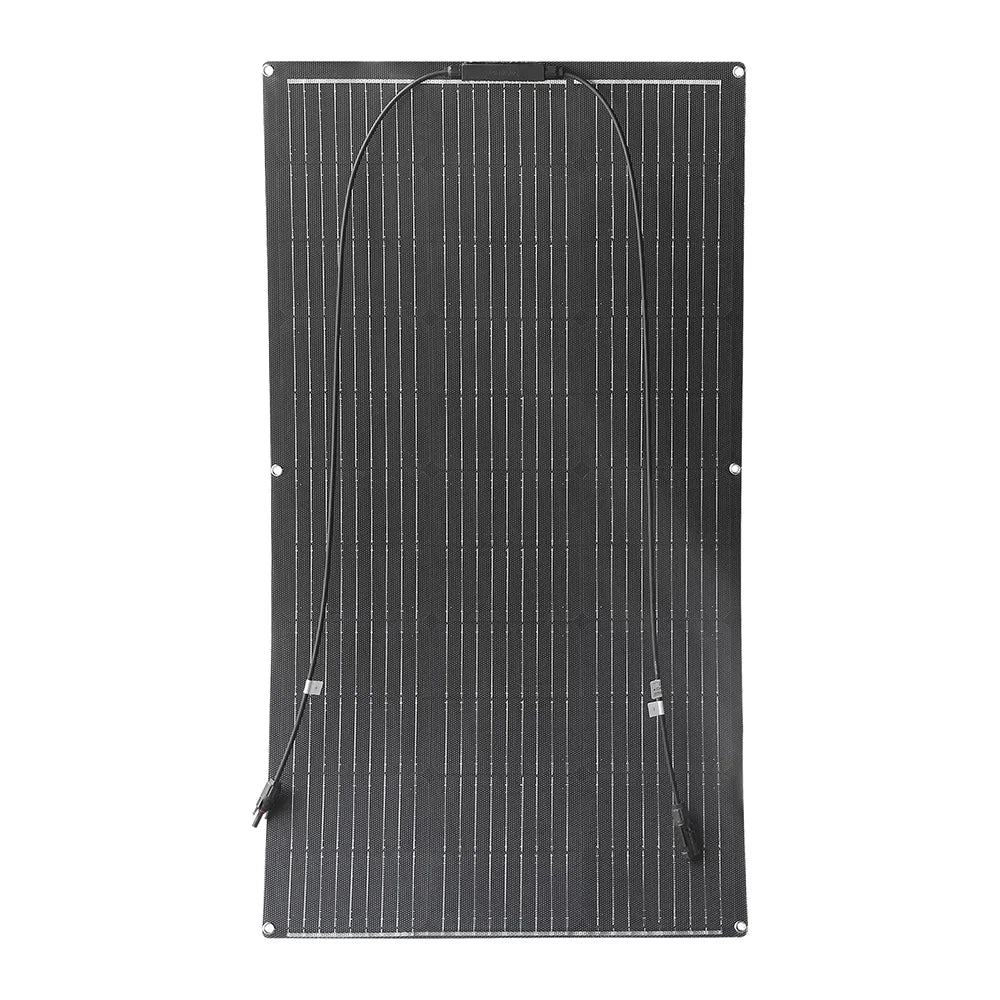

• flexible solar panel layout
  • 100-300w flexible solar panels 12/24v + inverter KIT
  • 100-300w flexible solar panel

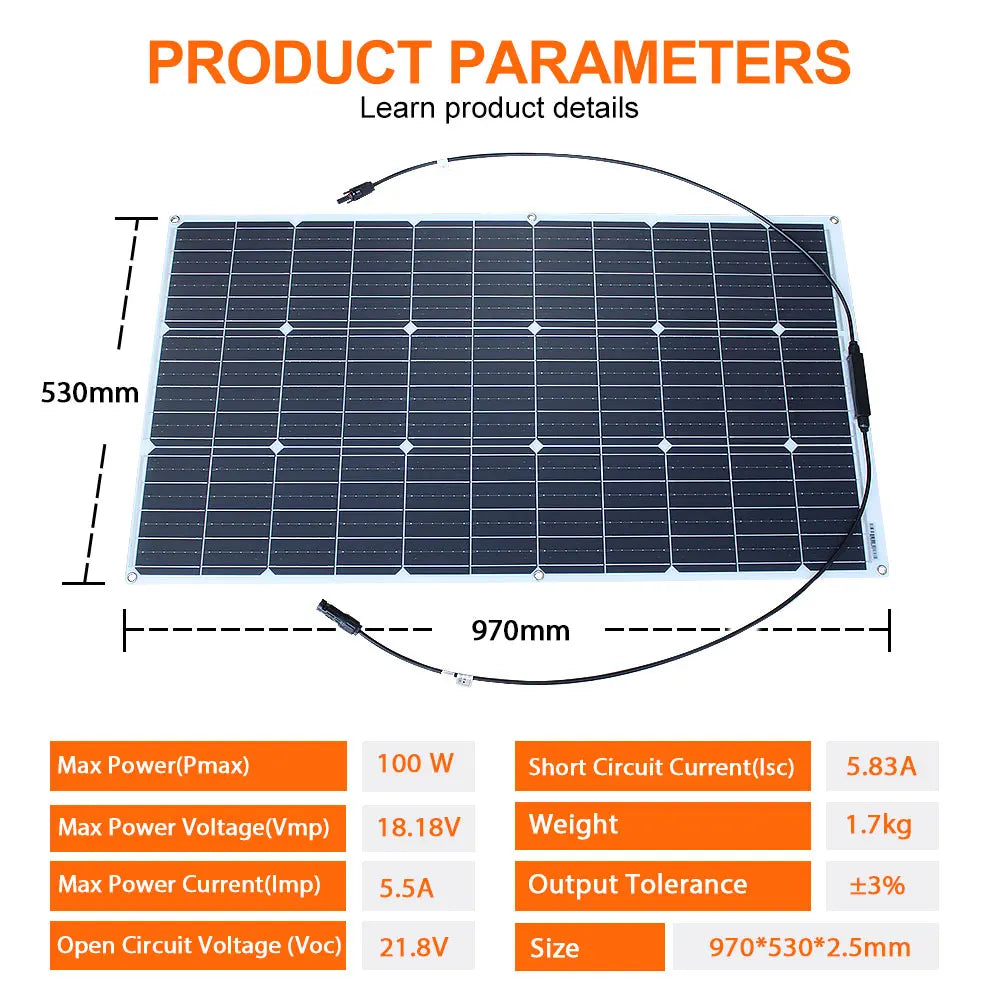

  • Flexible solar panel parameters

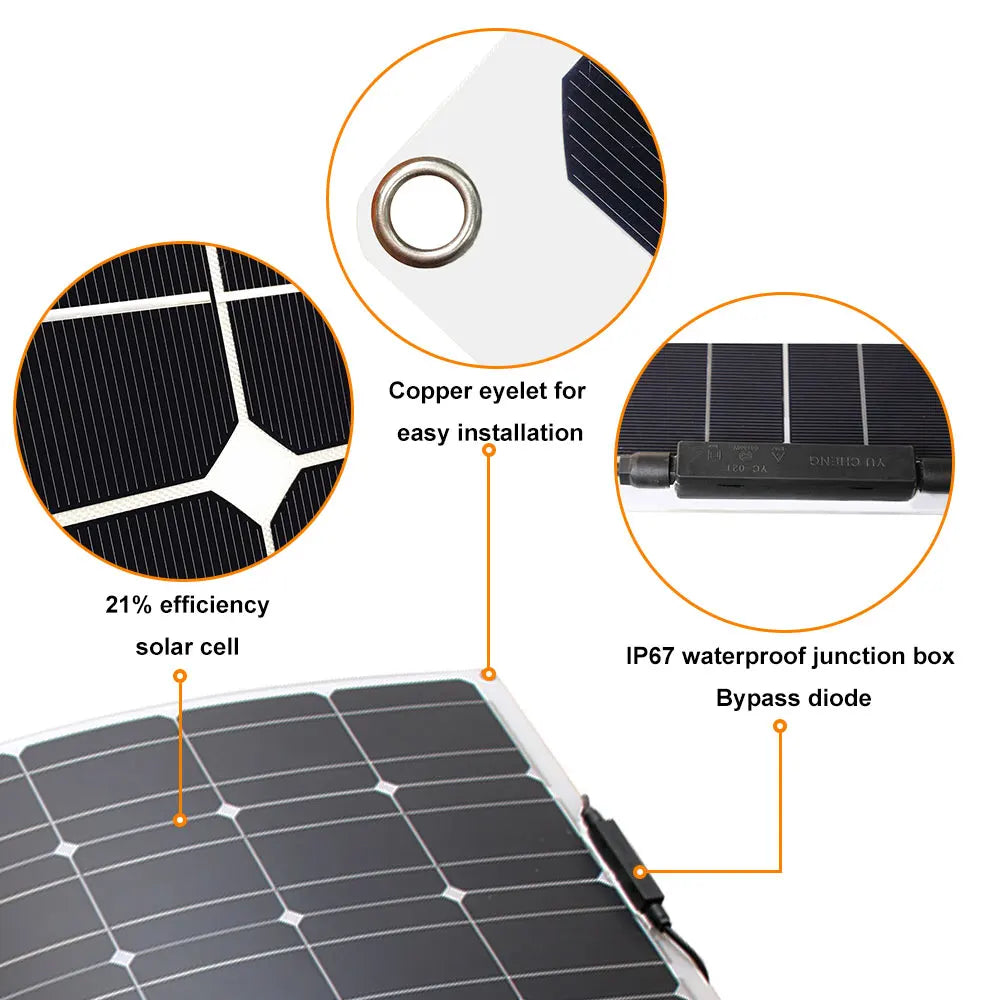

  • flexible solar panel features

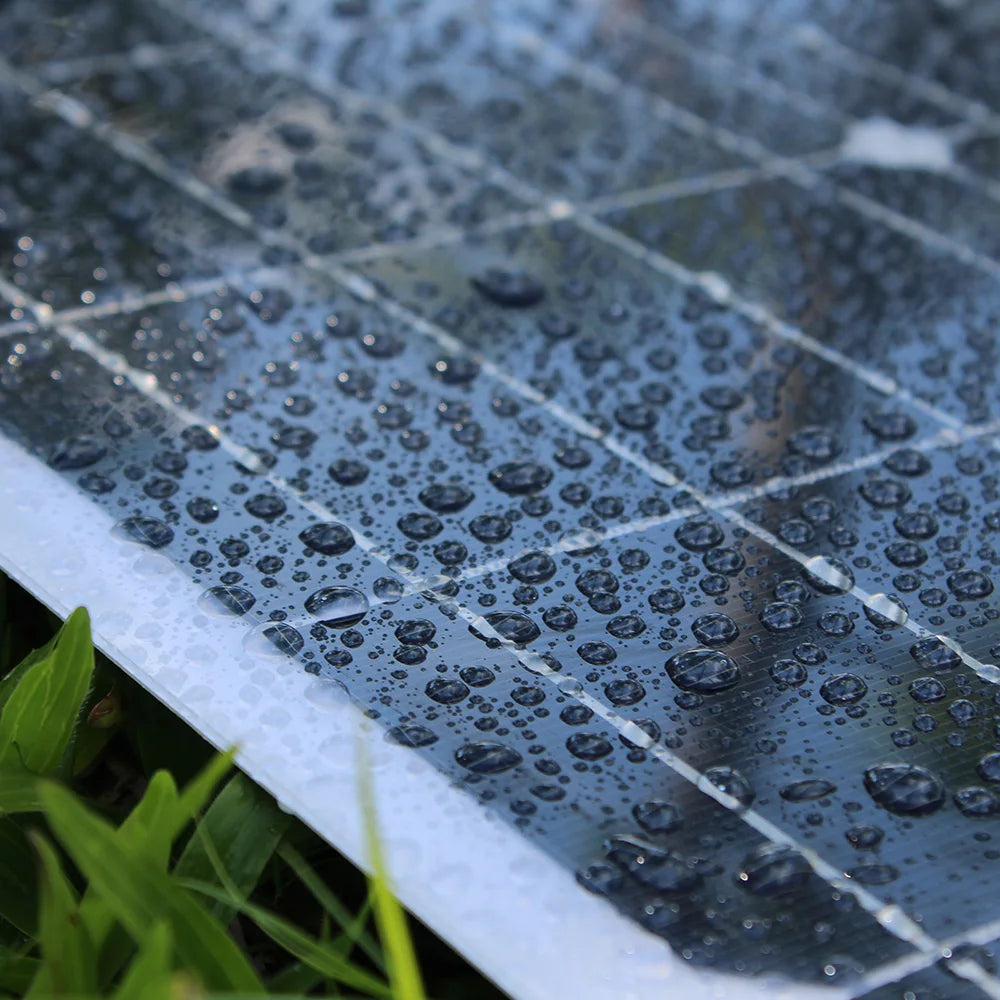

  • flexible solar panel close up image
  • solar panel control
  • 2 flexible solar panel layout
  • 3 flexible solar panel layout
  • flexible solar panel layout + inverter controller
  • 300w flexible solar panel
  • 100w flexible solar panel with inverter controller
  • 200w flexible solar panel with inverter controller
  • 100w flexible solar panel

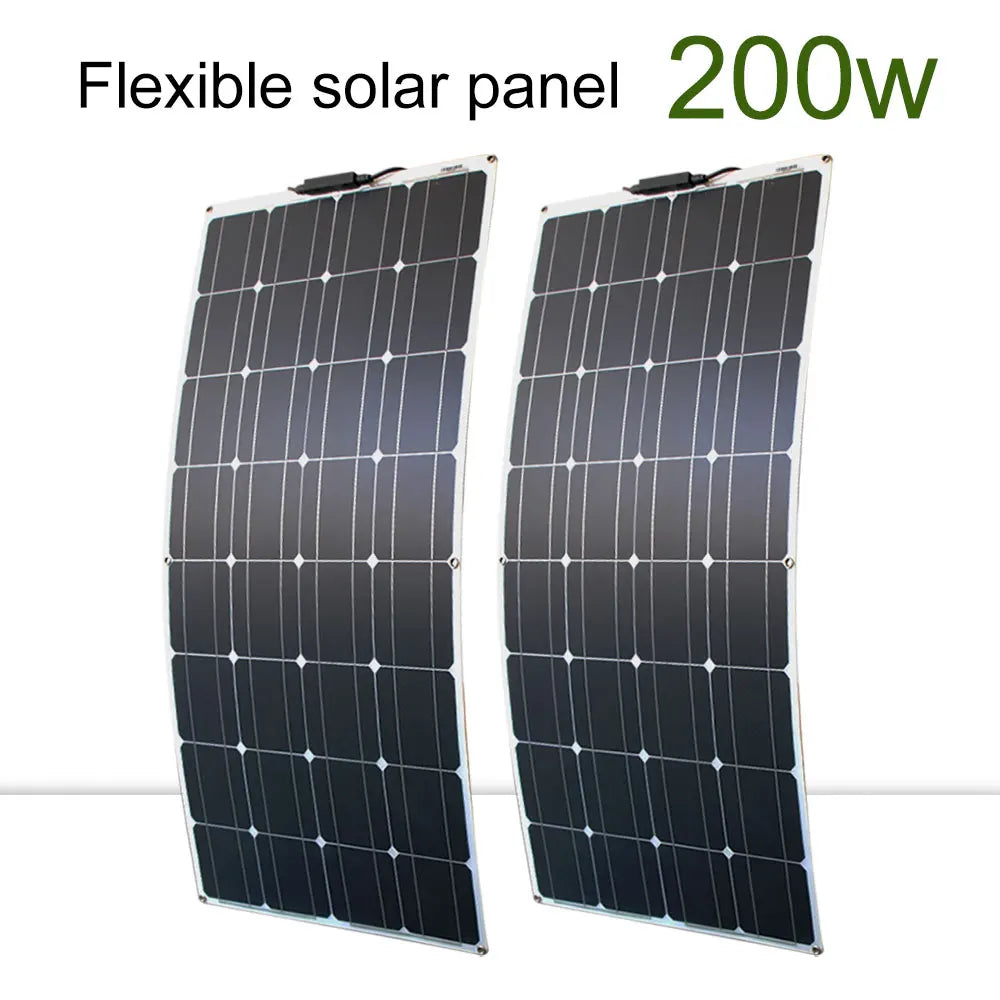

  • 200w flexible solar panel

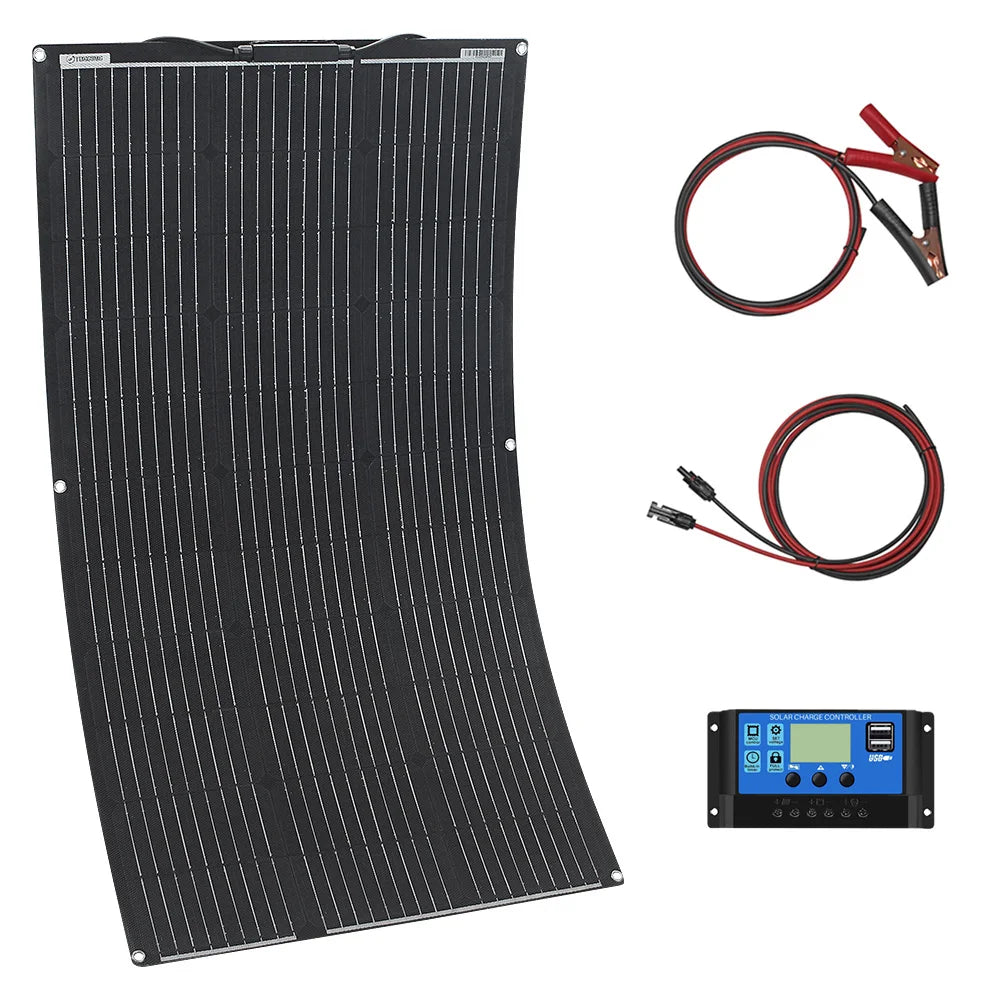

  • flexible solar panel with accessories
  • 2 flexible solar panel with accessories
  • 3 flexible solar panel with accessories
1 7

Dgsunlight

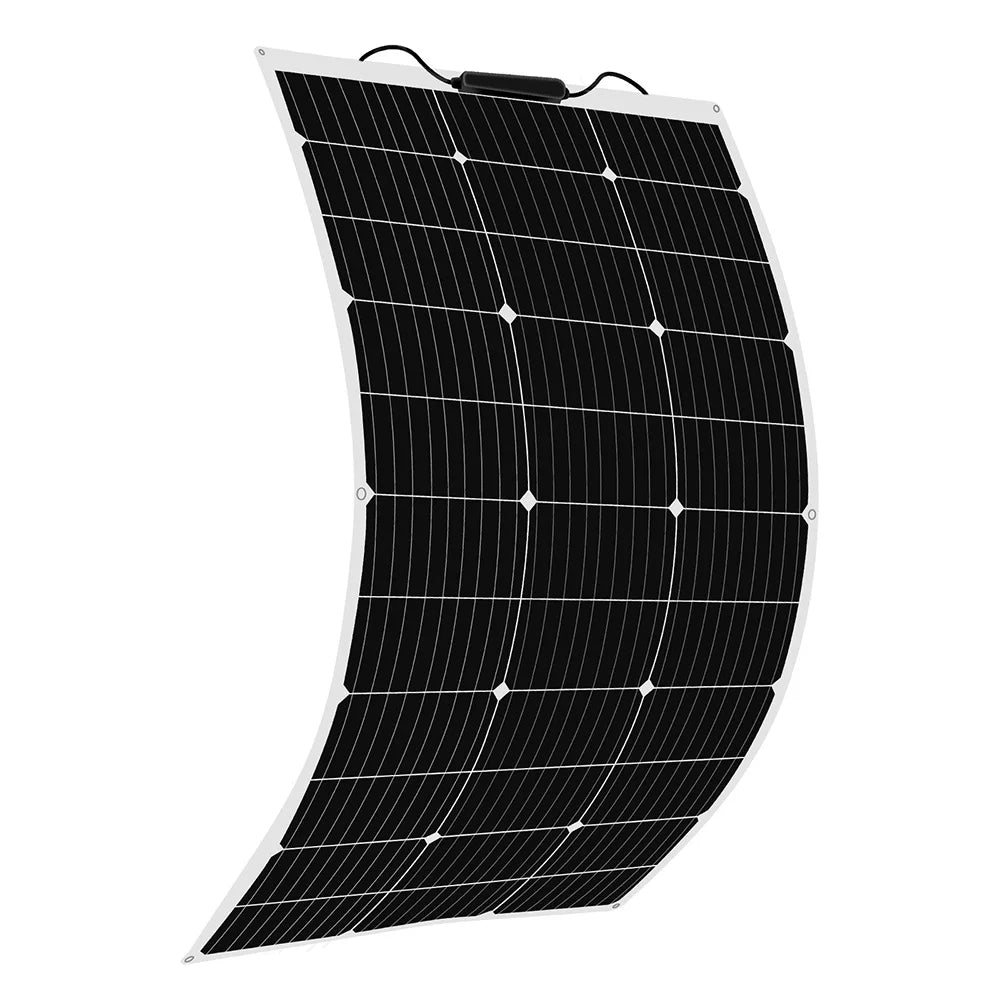

100-300w flexible solar panels 12/24v + inverter KIT

100-300w flexible solar panels 12/24v + inverter KIT

$221.52 CAD
$0.00 CAD $221.52 CAD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From
  • CE
  • ROHS

SPECIFICATIONS



Brand Name: Dgsunlight

Number of Panels: >20

Flexible Solar Panel: Yes

Foldable Solar Panel: No

High-concerned Chemical: None

Type: Solar Panel

Model Number: RGN33-100

Dimension: 970*530*2.5mm

Material: Monocrystalline Silicon

Max. Power: 100w/pcs

Customisable: Yes

Max Power: 100w

Max Power voltage: 18.18v

Max Power Current: 5.5A

Open Circuit Voltage: 21.8V

Short Circuit Current: 5.83A

Weight: 1.6KG







Shipping logistics for this product is not available in the following regions, as they are remote areas:

  • We do not ship to the Canary Islands, Spain with postal codes starting with 35 and 38.
  • Spain that starts with 35, 38, 51, 52.
  • France that starts with 97
  • Portugal that starts with 9.
Purchase Notes:
  There are multiple different shopping items in this link, and the products of each option are different. Please check carefully whether the selected item is consistent with the product you need, first

PET solar panel 100w:

Electrical Characteristics
Max Power                                                100 W
Max Power voltage                          18.18 V
Max Power Current                            5.5 A
Open Circuit Voltage                        21.8 V
Short Circuit Current                          5.83 A
Number of cells in Series                    33
Cell size                                                  157X157 mm

Mechanical Characteristics
Dimension                                                970X530X2.5mm
Weight                                                1.6kg（±0.1kg）
Cable                                                    0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax             -0.38%/℃
Temperature coefficient of Voc             -60.5mV/℃
Temperature coefficient of Isc               2.2mA/℃
NOTC                                                     47℃+/-2℃
Operating Temperature                             -20℃ - +65℃

ETFE solar panel 100w:

Solar panel packing list

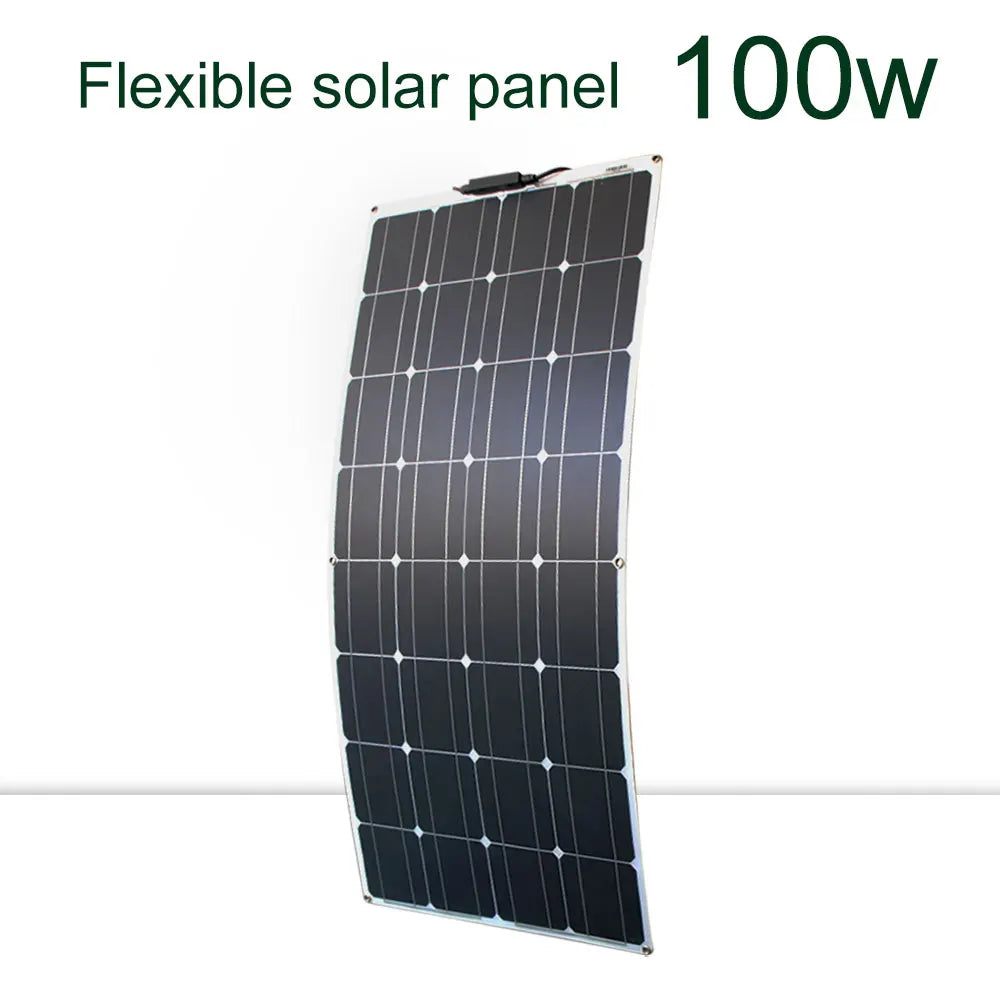

100w solar panel= 1pcs 100w 12v flexible solar panel （solar panel only）

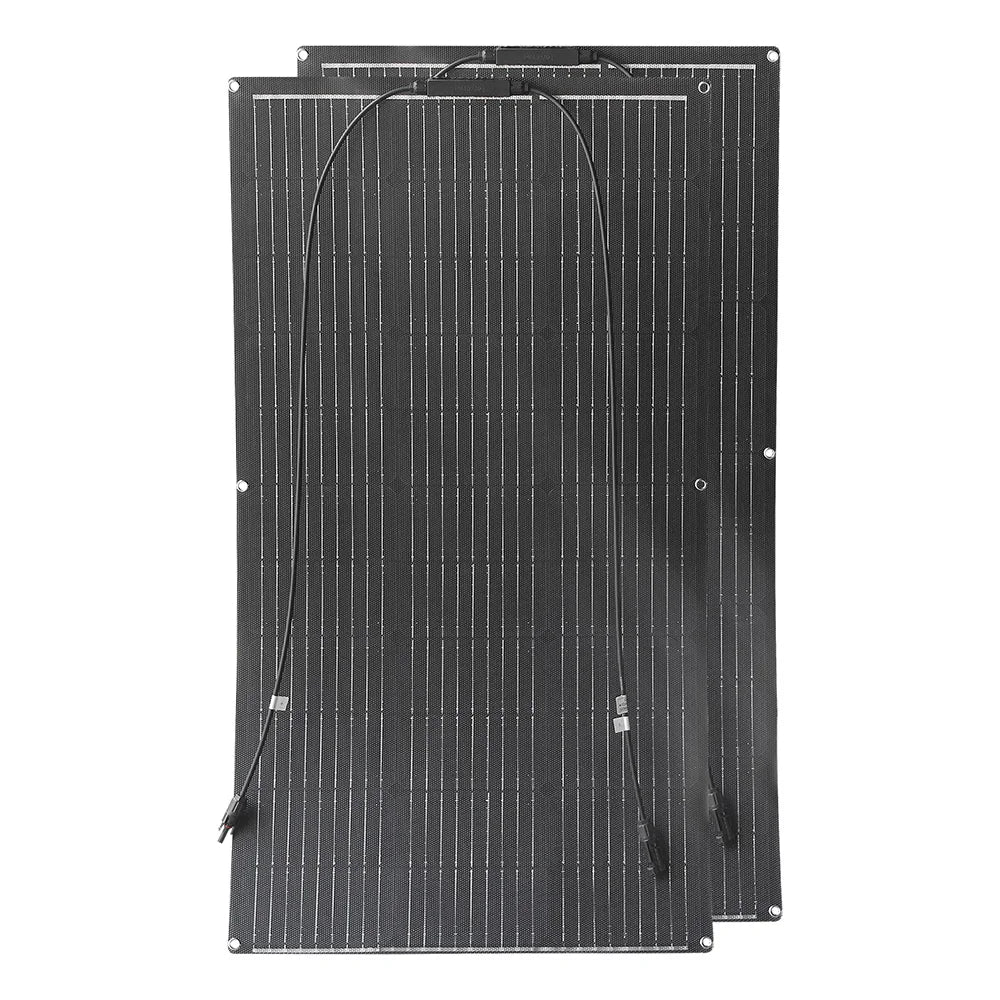

200w solar panel= 2pcs 100w 12v flexible solar panels （solar panel only）

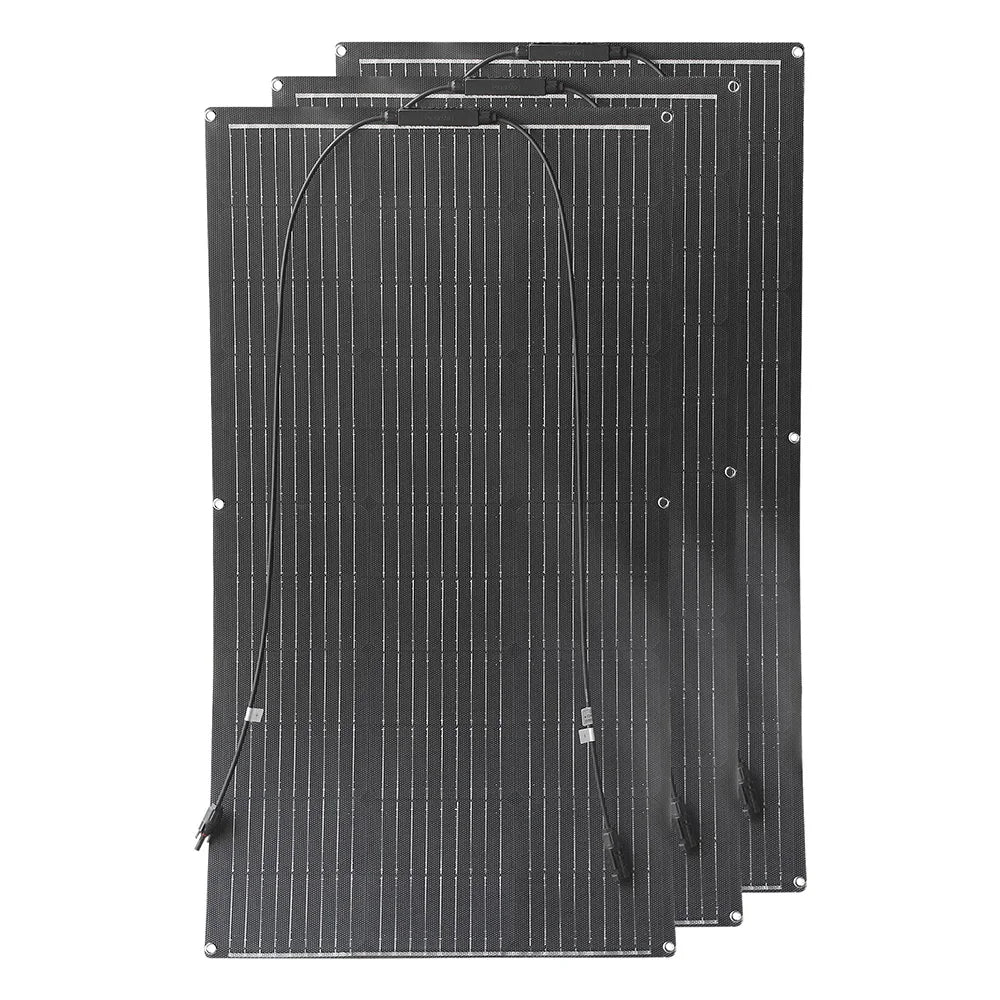

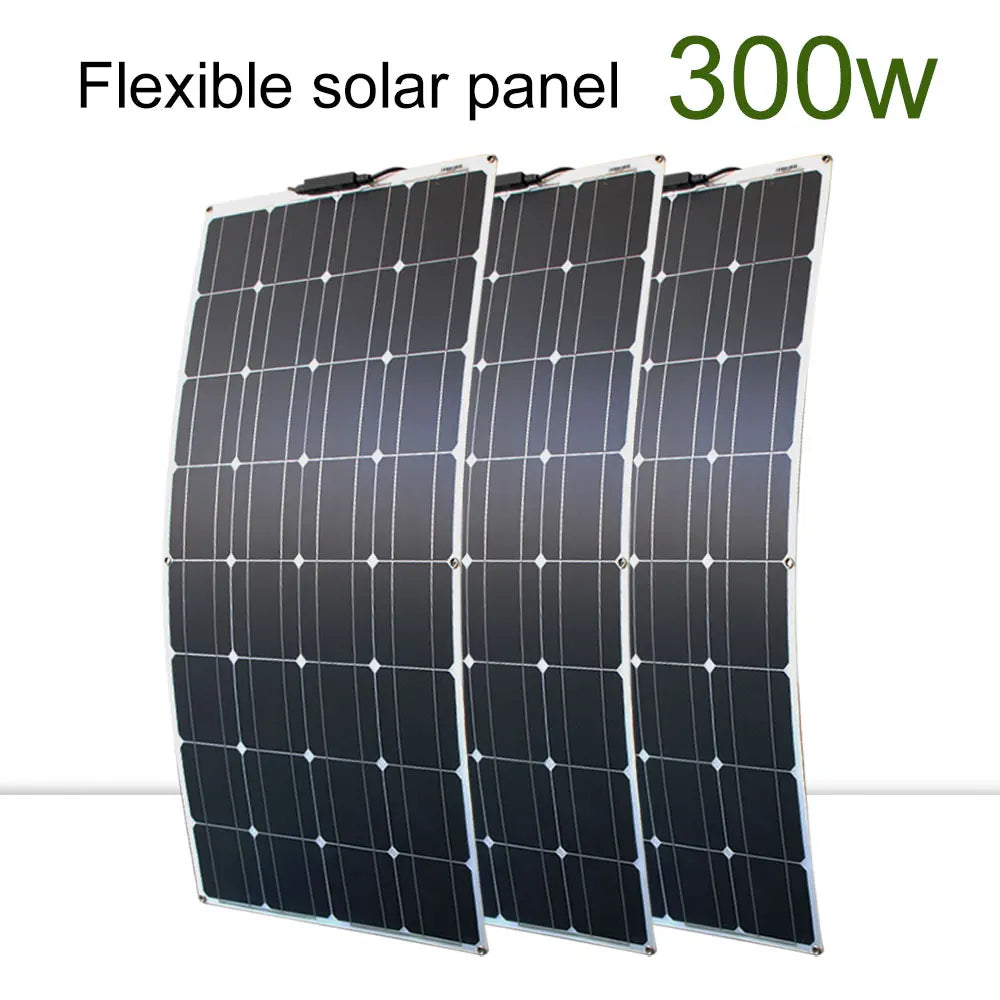

300w solar panel= 3pcs 100w 12v flexible solar panels （solar panel only）

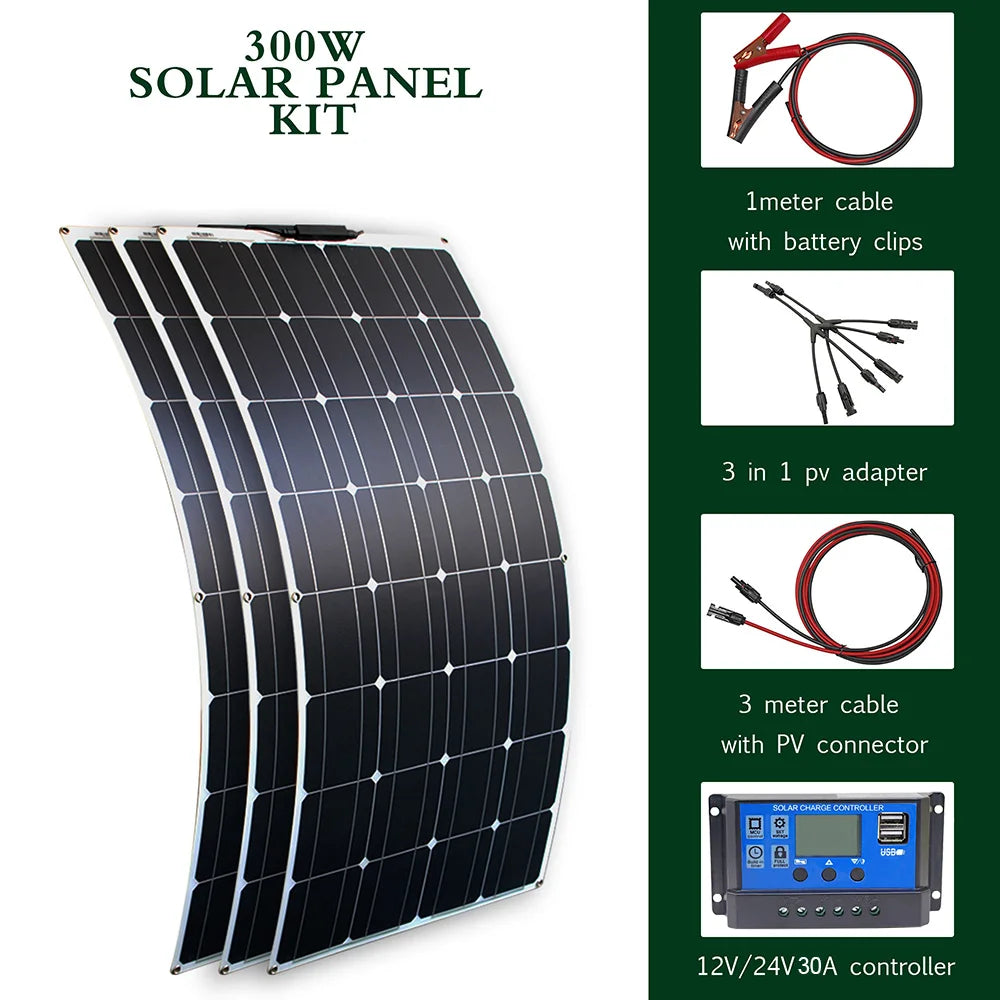

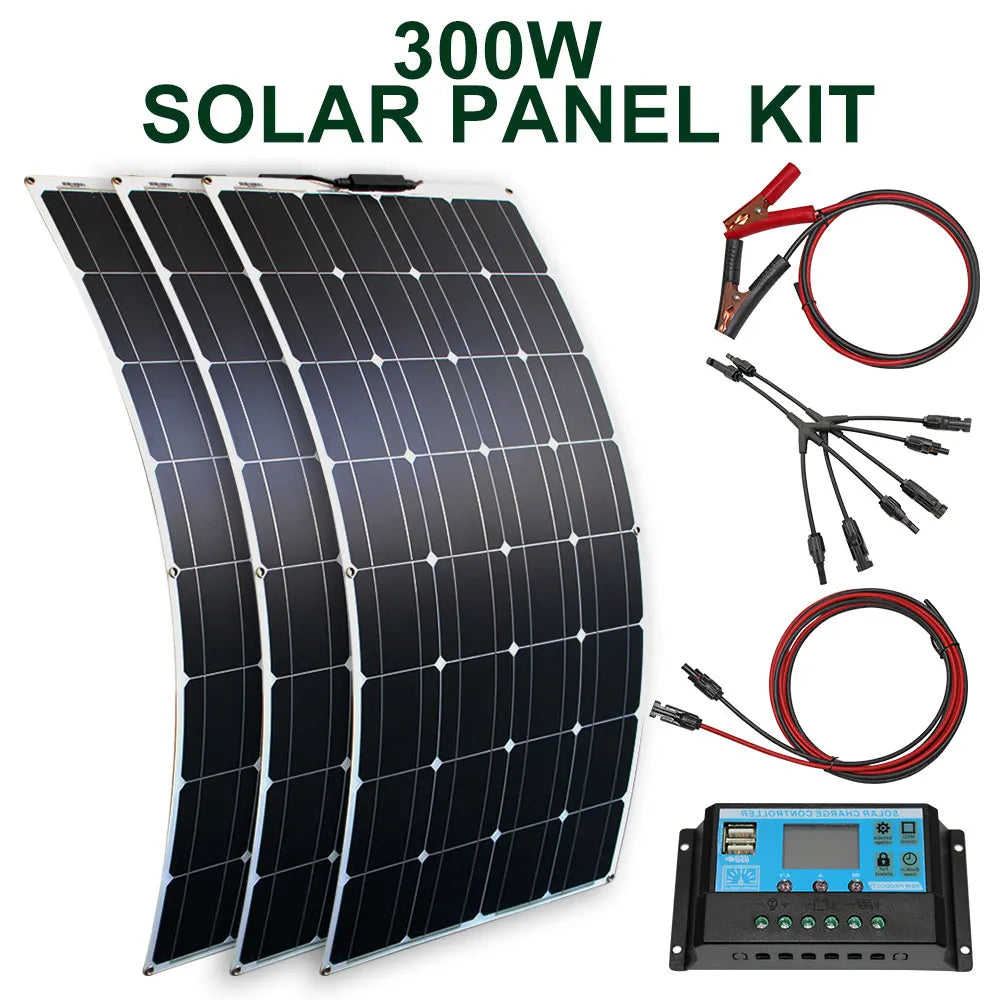

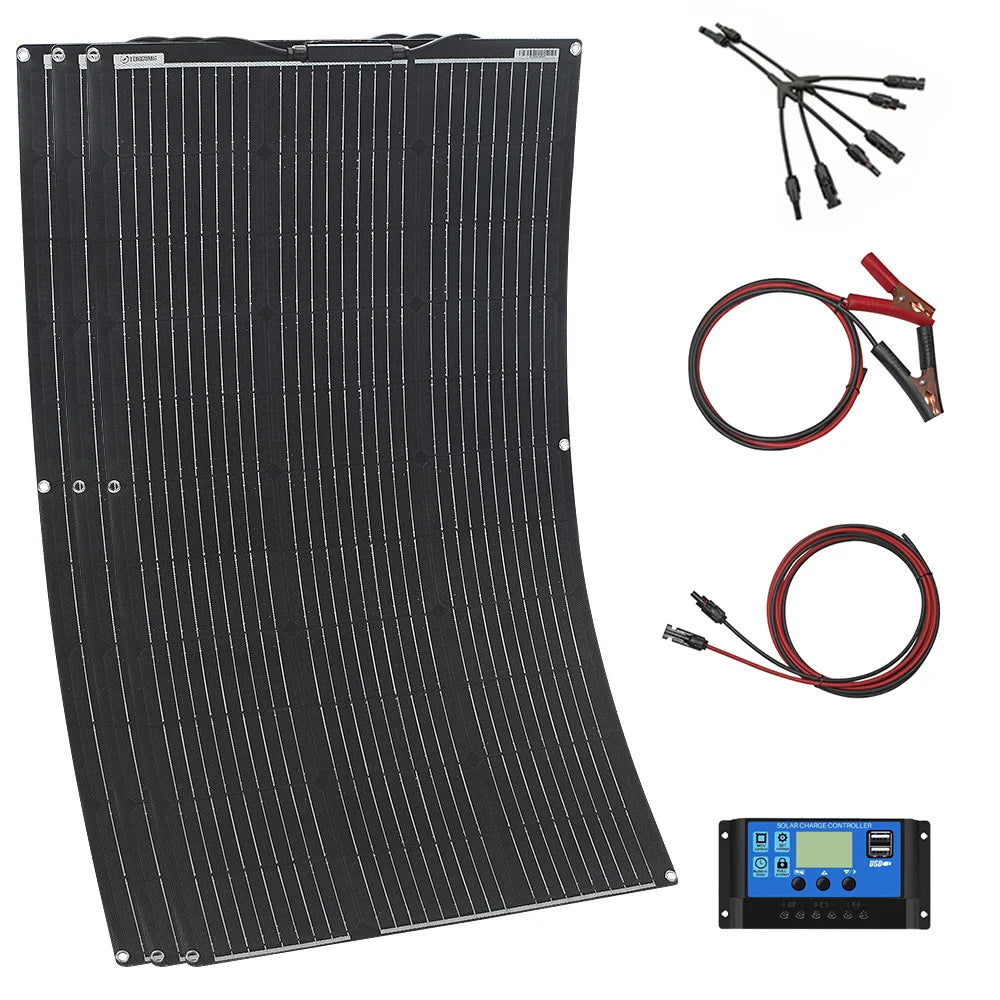

300W solar panel system packing listing

3*100W solar panel
1 *3 in 1 adapter
1*12V/24V 30A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip

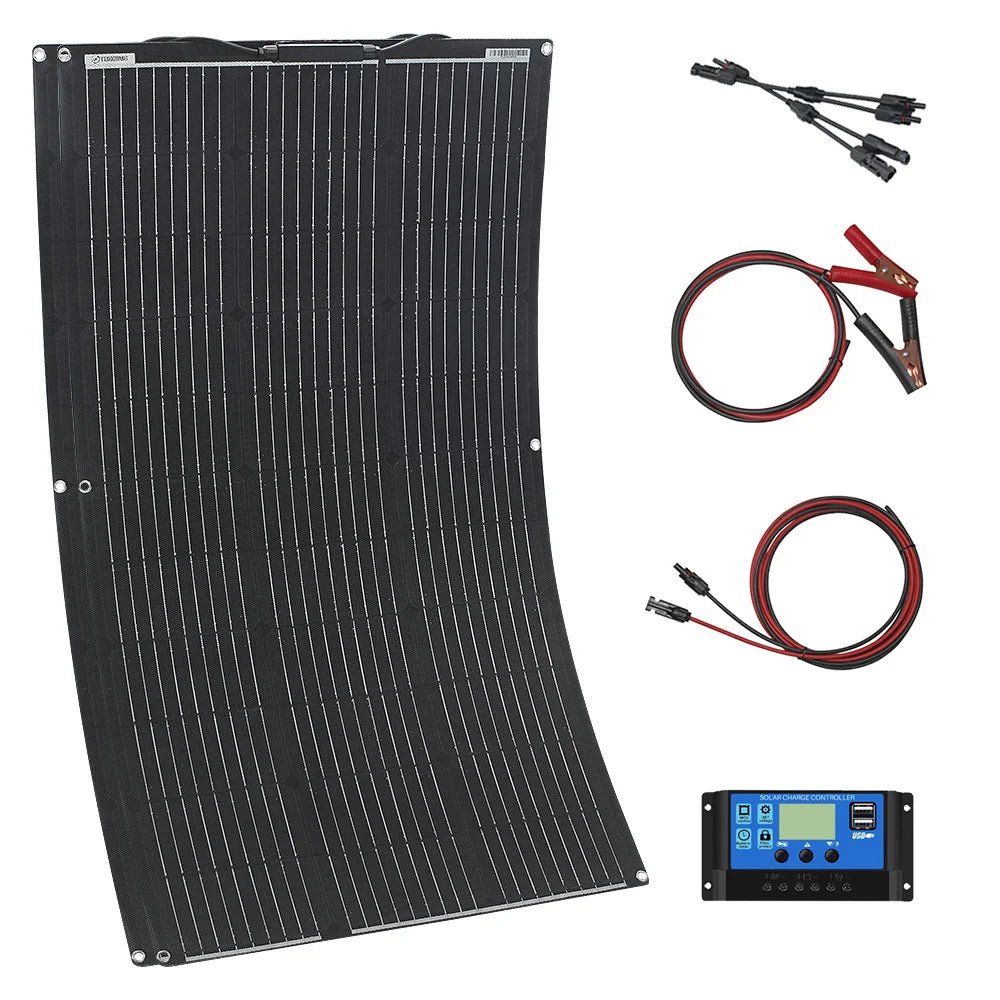

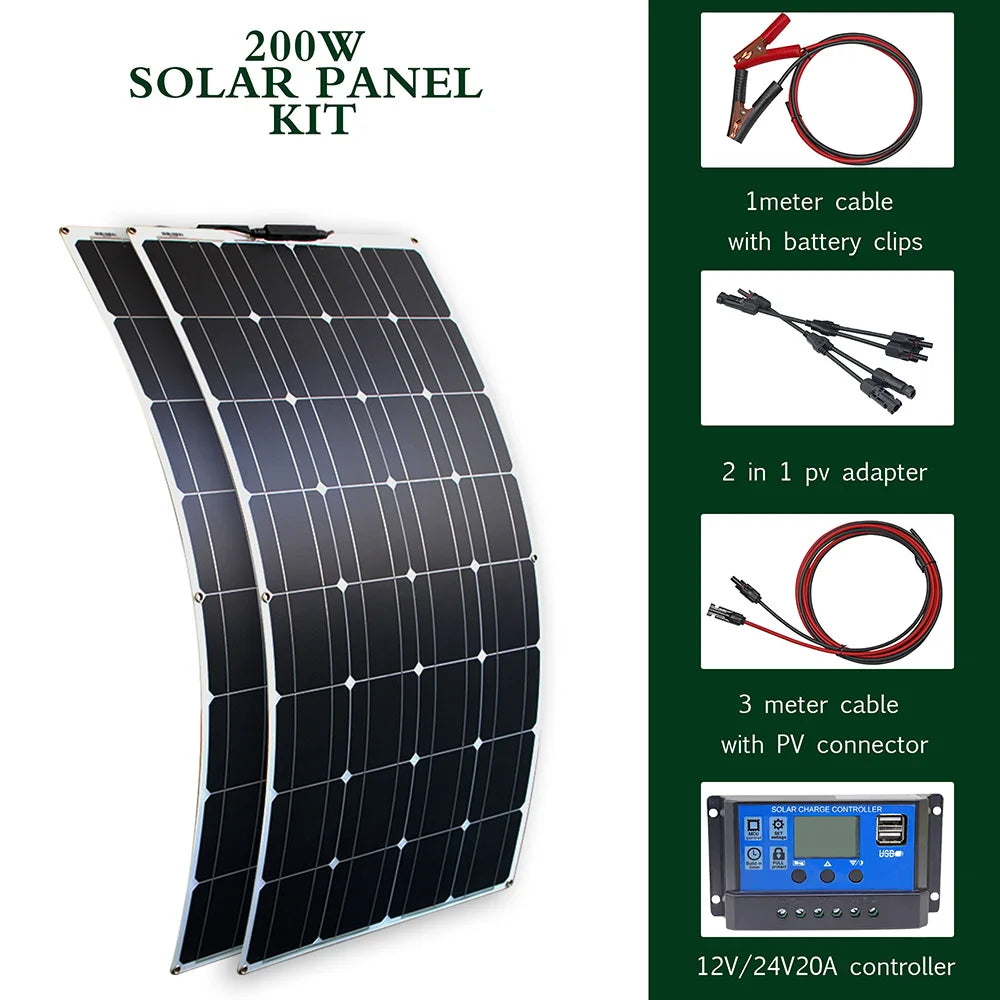

200W solar panel system packing listing

2*100W solar panel
1 *2 in 1 adapter
1*12V/24V 20A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip

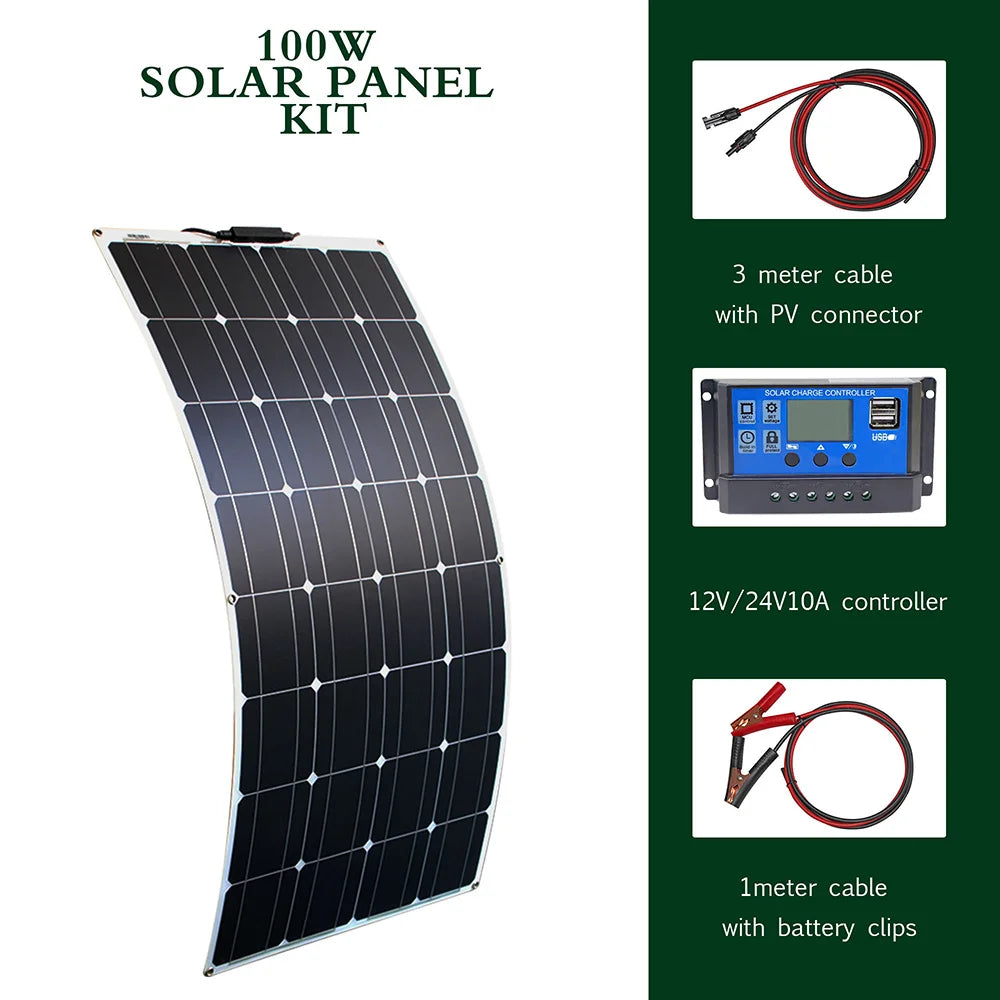

100W solar panel system packing listing

1*100W solar panel
1*12V/24V 10A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip


Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

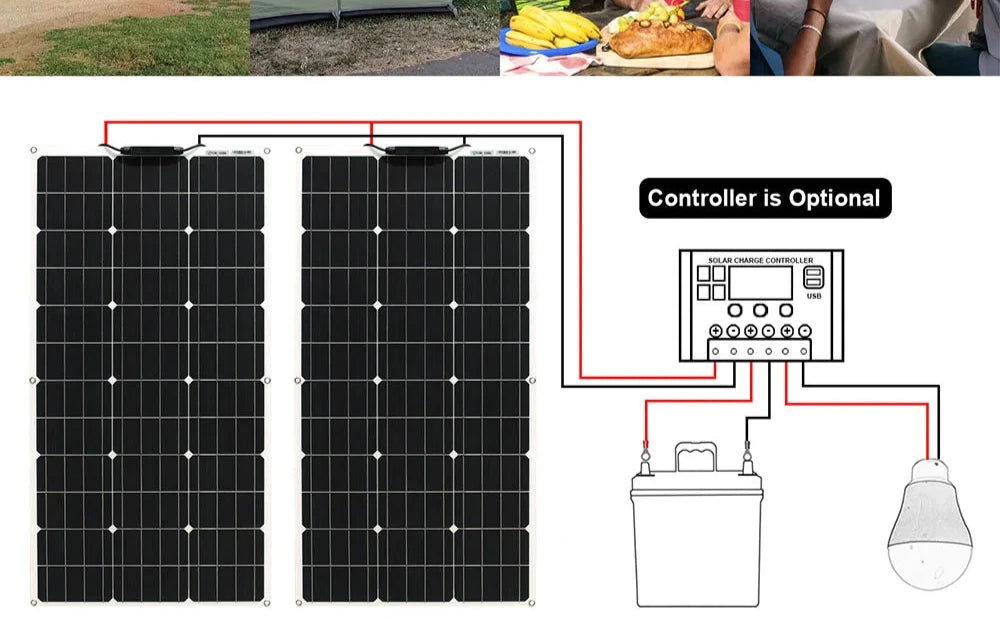

System Connection:

1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
